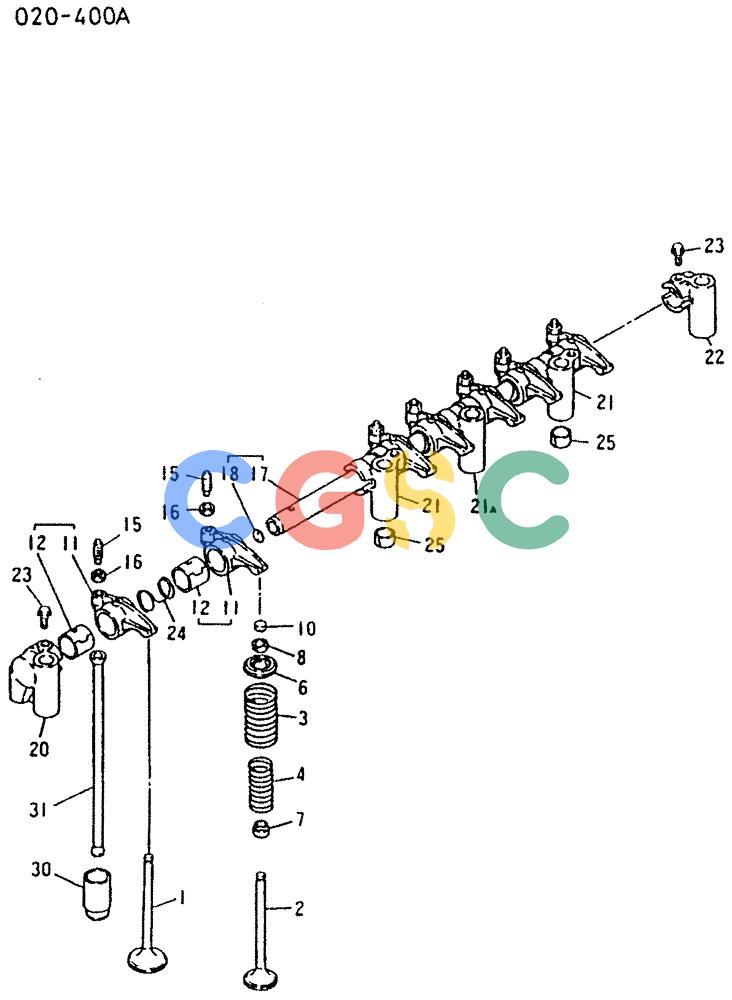

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-014 ) - VALVE, GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
813 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME011265 | [6] | VALVE | KOBVALVE,INLET Superseded by part number: VAME013810 |
| 2. | VAME011266 | [6] | VALVE | KOBVALVE,EXH Superseded by part number: VAME013832 |
| 3. | VAME029101 | [12] | VALVE SPRING | KOBSPRING,VALVE OUTER |
| 4. | VAME029102 | [12] | VALVE SPRING | KOBSPRING,VALVE INNER |
| 6. | VAME011268 | [12] | RETAINER | KOBRETAINER,UPPER |
| 7. | VAME024108 | [12] | STEM SEAL SEAL VALVE STEM | STEM SEAL SEAL VALVE STEM |
| 8. | VAME011227 | [24] | VALVE | KOBCOTTER,VALVE |
| 10. | VAME020244 | [12] | CAP | KOBCAP,VALVE Superseded by part number: VAME017459 |
| 11-12. | VAME011292 | [12] | ROCKER | KOBROCKER ASSY |
| 11. | NSS | [12] | NOT SOLD SEPARAT | CONROCKER |
| 12. | VAME011254 | [12] | BUSHING | KOBBUSHING,ROCKER |
| 15. | VAMH001002 | [12] | SCREW | KOBSCREW,ADJUSTING 8X32 Superseded by part number: VAME220221 |
| 16. | VAMF430841 | [12] | NUT | KOBNUT 8 |
| 17-18. | VAME081513 | [1] | ROCKER ARM | KOBROCKER SHAFT ASSY |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT ROCKER |
| 18. | VAMS666101 | [2] | PLUG, EXPANS PLUG,EXPANSION | PLUG, EXPANS PLUG,EXPANSION |
| 20. | VAME011257 | [1] | BRACKET | KOBRRACKET,ROCKER SHAFT,FR |
| 21. | VAME011258 | [3] | BRACKET | KOBRRACKET,ROCKER SHAFT,2,4,6 |
| 21A. | VAME011259 | [2] | BRACKET | KOBRRACKET,ROCKER SHAFT,3,5 |
| 22. | VAME011260 | [1] | BRACKET | KOBRRACKET,ROCKER SHAFT |
| 23. | VAMF140003 | [2] | BOLT | KOBBOLT,FLANGE 6X12 |
| 24. | VAME011261 | [6] | SPRING | KOBSPRING.ROCKER SHAFT |
| 25. | VAMH007012 | [3] | PIN | KOBPIN,SPG 17X10 |
| 30. | VAME011249 | [12] | TAPPET | KOBTAPPET Superseded by part number: VAME013857 |
| 31. | VAME011267 | [12] | PUSH ROD | KOBPUSHROD Superseded by part number: VAME012991 |
