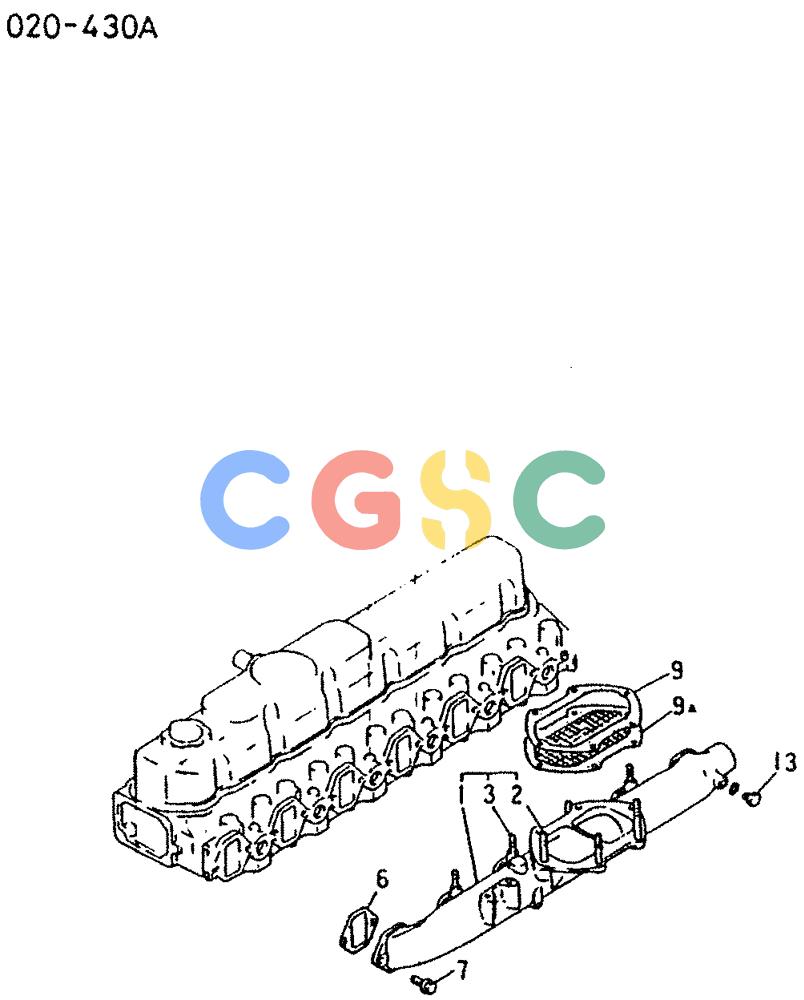

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-015 ) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
532 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-3. | VAME088255 | [1] | MANIFOLD | KOBINLET MANIFOLD ASSY Superseded by part number: VAME088376 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD.INLET |
| 2. | VAMF402574 | [3] | SCREW | KOBSTUD 8X50 |
| 3. | VAMF400657 | [4] | STUD STUD 6X28 | STUD STUD 6X28 |
| 6. | VAME013031 | [6] | GASKET | KOBGASKET,INLET HANIF Superseded by part number: VAME212086 |
| 7. | VAMF140225 | [12] | BOLT | KOBBOLT |
| 9. | VAME033679 | [1] | GASKET | KOBGASKET Superseded by part number: VAME073941 |
| 9A. | VAME033848 | [1] | GASKET | KOBGASKET W/NET Superseded by part number: VAME075807 |
| 13. | VAME031088 | [1] | PLUG | KOBSCREW,SET |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
