神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (02-001 ) - WATER PUMP Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
311 次

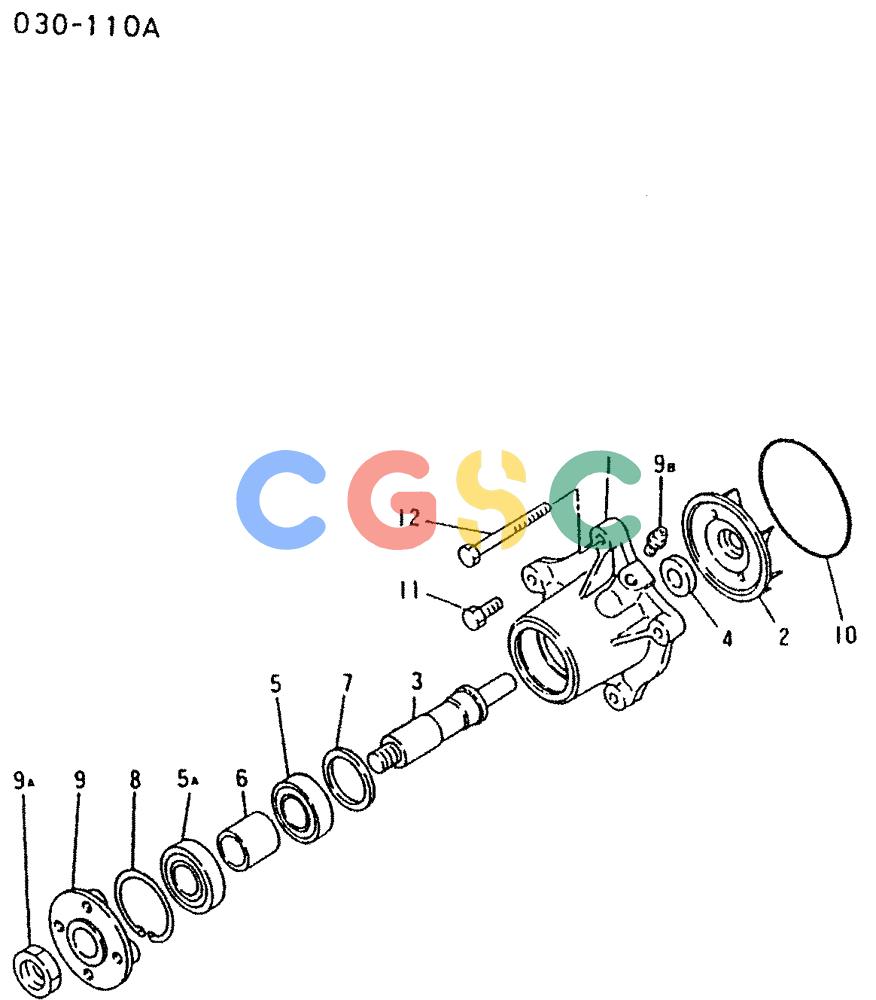

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9B. | VAME088301 | [1] | WATER PUMP | KOBWATER PUMP ASSY Superseded by part number: VAME996873 |
| 1. | VAME088302 | [1] | CASE.WATER PUMP | |
| 2-5A.10. | VAME999619 | [1] | KIT, ENGINE TOP GASK | KOBWATER PUMP REPAIR KIT |
| 2. | VAME018095 | [1] | IMPELLER | KOBIMPELLER |
| 3. | VAME080033 | [1] | SHAFT | KOBSHAFT,PUMP |
| 4. | VAMH034026 | [1] | SEAL | KOBSEAL.UNT |
| 5. | VAMS556065 | [1] | BEARING | KOBBEARING,BALL |
| 5A. | VAMS556185 | [1] | BEARING | KOBBEARING,BALL Superseded by part number: VAF801206305 |
| 6. | VAME920030 | [1] | SPACER | KOBSPACER |
| 7. | VA3114502900 | [1] | WASHER | KOB |
| 8. | VAMF522236 | [1] | SNAP RING | KOBRING,SNAP 62 |
| 9. | VAME039863 | [1] | FLANGE | KOBFLANGE |
| 9A. | VAMF430732 | [1] | NUT | KOBNUT 22 |
| 9B. | VAMF524002 | [1] | LUBE NIPPLE | KOBGREASE |
| 10. | VAMF520416 | [1] | O-RING | KOBO-RING 100 |
| 11. | VAMF140229 | [2] | BOLT | KOBBOLT,FLANGE 8X30 |
| 12. | VAMF140244 | [2] | BOLT | KOBBOLT,FLANGE 8X90 |
