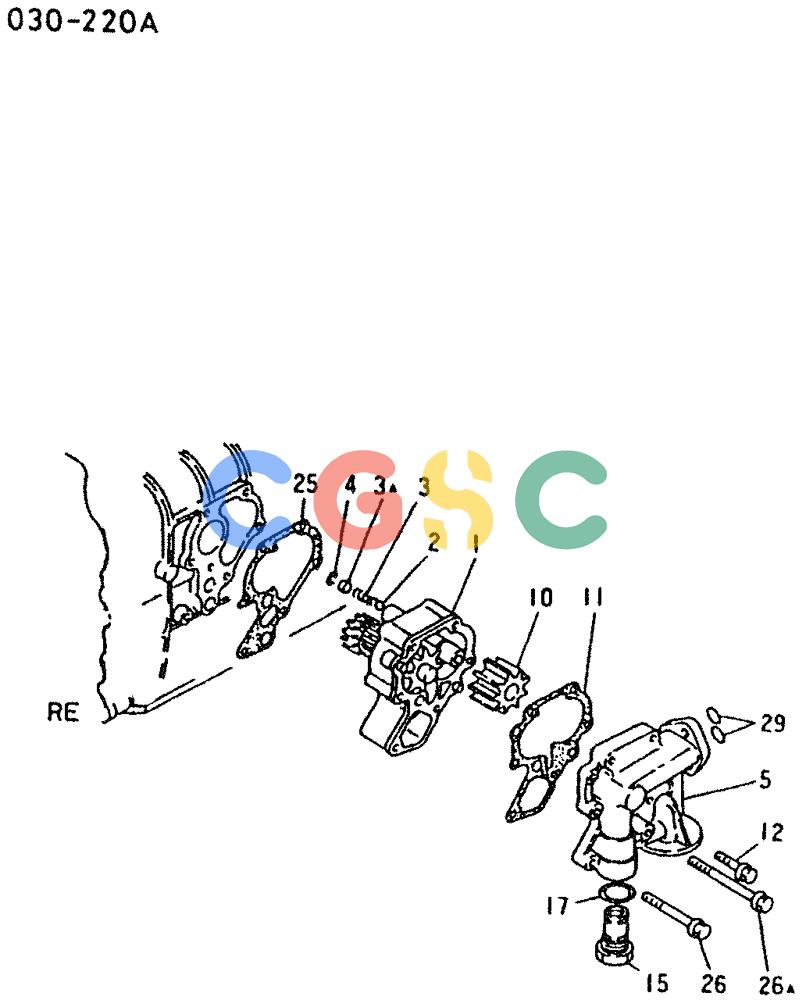

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (02-005 ) - OIL PUMP & GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
865 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME084586 | [1] | ENGINE OIL PUMP | KOBOIL PUMP ASSY |
| 1. | VAME084589 | [1] | CASE & ROTER KIT OIL PUMP CASE ASSY | CASE & ROTER KIT OIL PUMP CASE ASSY |
| 2. | VAMF540014 | [1] | BALL BALL | BALL BALL |
| 3. | VAME034013 | [1] | SPRING | KOBSPRING |
| 3A. | VAME034014 | [1] | SEAT SEAT,SPG | SEAT SEAT,SPG |
| 4. | VAMF522205 | [1] | RING SNAP 14 RING,SNAP 14 | RING SNAP 14 RING,SNAP 14 |
| 5. | VAME084588 | [1] | COVER ASSY | KOBOIL PUMP COVER ASSY |
| 10. | VAME084547 | [1] | DRIVEN GEAR | KOBGEAR,DRIVEN |
| 11. | VAME084507 | [1] | GASKET | KOBGASKET |
| 12. | VAMF140231 | [2] | BOLT | KOBBOLT,FLANGE 8X35 |
| 15. | VAME014471 | [1] | VALVE | KOBRELIEF VALVE ASSY |
| 17. | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 25. | VAME084519 | [1] | GASKET | KOBGASKET,OIL PUMP |
| 26A. | VAMF140241 | [5] | BOLT | KOBBOLT,FLANGE 8X80 |
| 26A. | VAMF140245 | [1] | BOLT | KOBBOLT,FLANGE 8X100 |
| 29. | VAMH035015 | [2] | O-RING | KOB0-RING |
