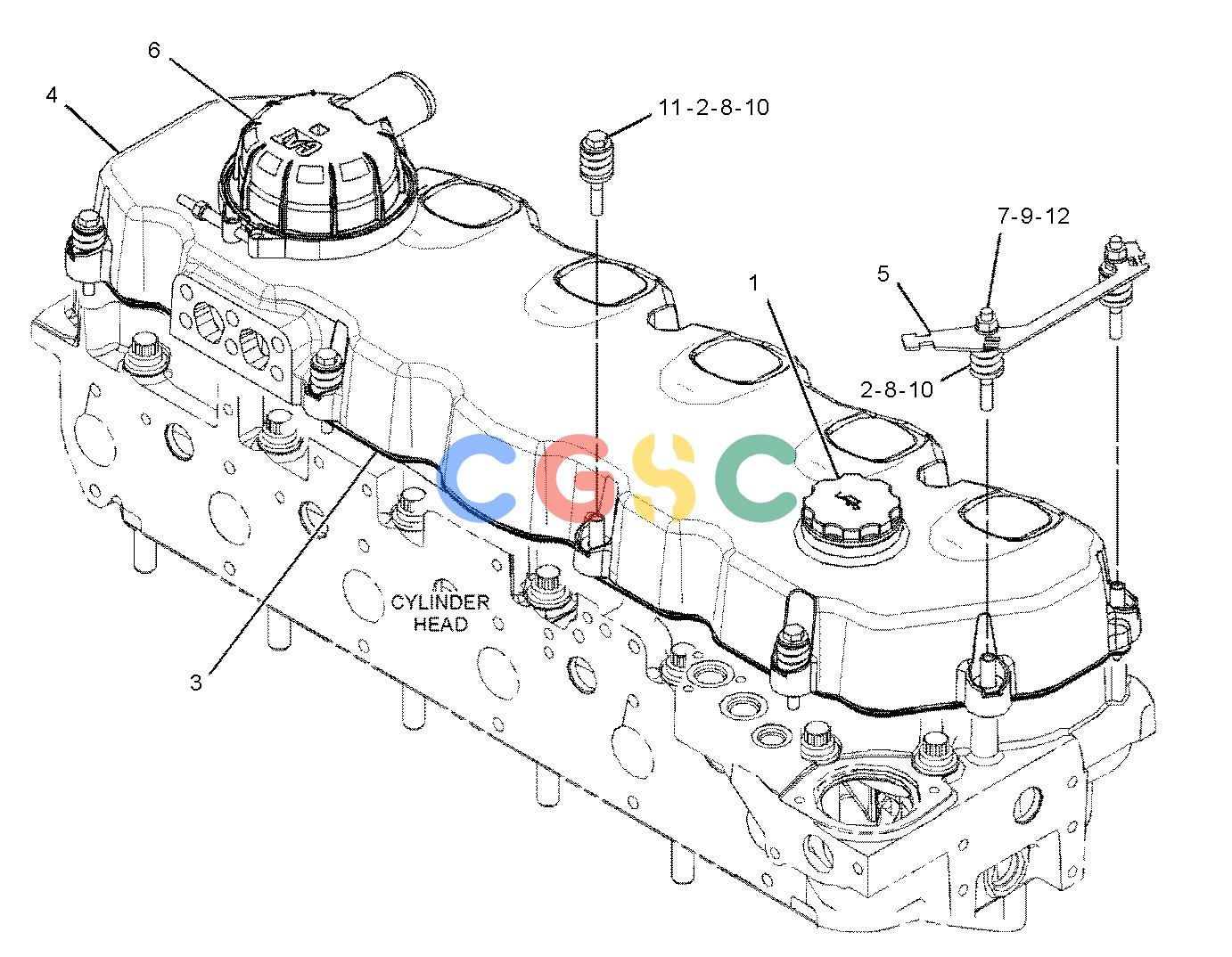

卡特零件查询（725C） 370-2283: COVER GP-VALVE MECHANISM
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 227-4531 | [1] | CAP AS-ENGINE OIL FILLER | |
| | 7F-8268 | [1] | SEAL-O-RING | |
| 2. | 244-4500 | [10] | SPRING | |
| 3. | 260-0113 | [1] | SEAL-VALVE COVER | |
| 4. | 324-9326 | [1] | COVER-VALVE MECHANISM | |
| 5. | 358-7347 | [1] | BRACKET | |
| 6. | 368-8036 | [1] | BREATHER AS(VALVE MECHANISM) | |
| 7. | 131-0353M | [2] | STUD(M8X1.25X82.75-MM) | |
| 8. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 5P-7970M | [2] | NUT(M8X1.25-THD) | |
| 10. | 5P-8244 | [10] | WASHER-HARD(12X22.5X2.5-MM THK) | |
| 11. | 8T-0100M | [8] | BOLT(M8X1.25X60-MM) | |
| 12. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
