卡特零件查询（725C） 294-2987: CRANKSHAFT GP
广数供应链运营团队, 14 02月, 2025，浏览：
983 次

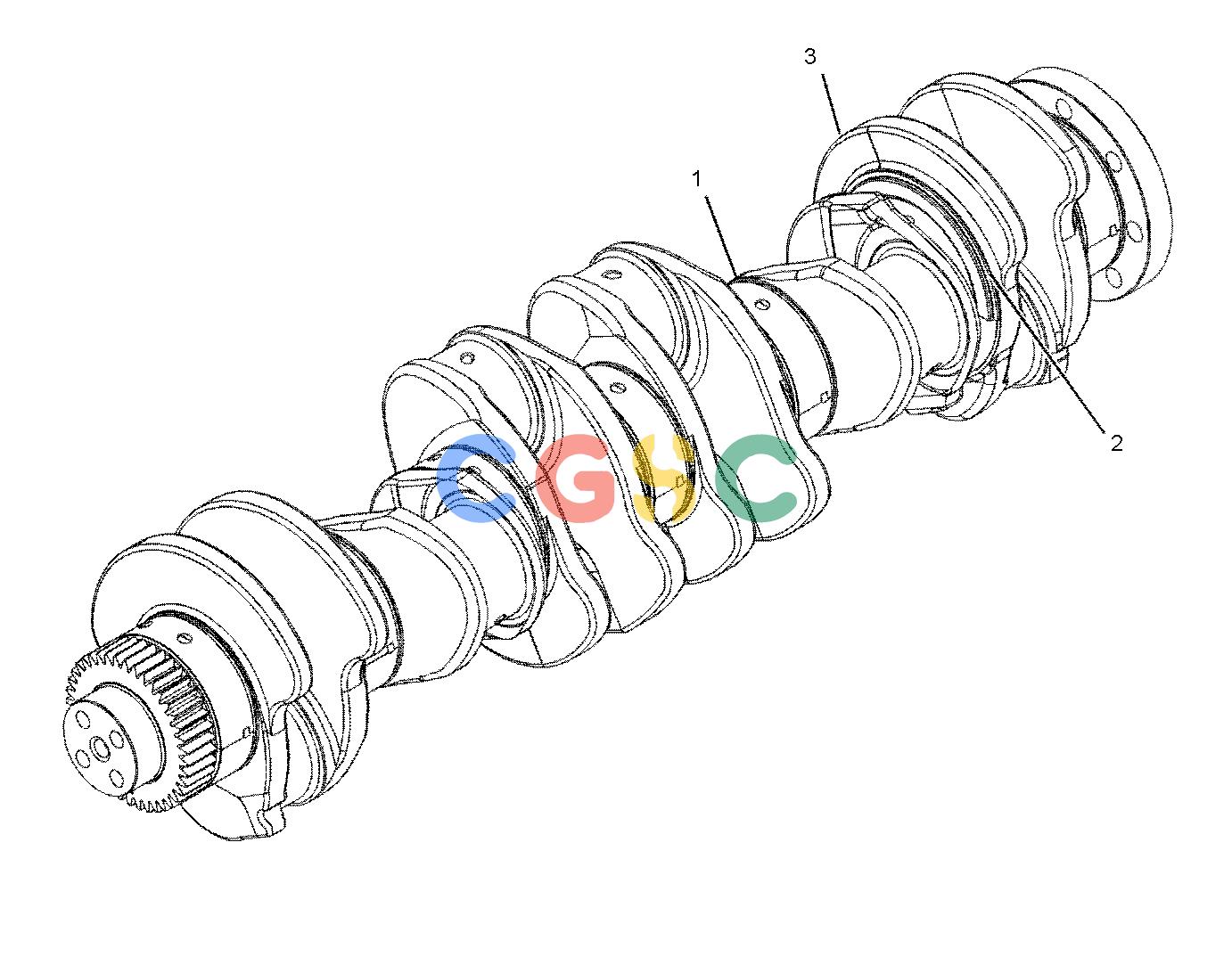

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 151-2939J | [7] | BEARING-MAIN(STANDARD) | |
| | 282-1771AB | | BEARING-MAIN(0.25-MM US) | |
| | 282-1772AB | | BEARING-MAIN(0.51-MM US) | |
| 2. | 246-3150J | [2] | PLATE-THRUST | |
| 3. | 282-7958 | [1] | CRANKSHAFT AS | |
| | 282-7955 | [1] | GEAR-CRANKSHAFT(40-TEETH) | |
| | 1B-8705 | [1] | KEY-WOODRUFF | |
| | 9Y-0810 | [1] | SLEEVE-WEAR | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 243-6716ABJ | | KIT-BEARING | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | PARTS MARKED J SERVICED BY KIT MARKED J |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
