神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (02-010) - OIL COOLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
793 次

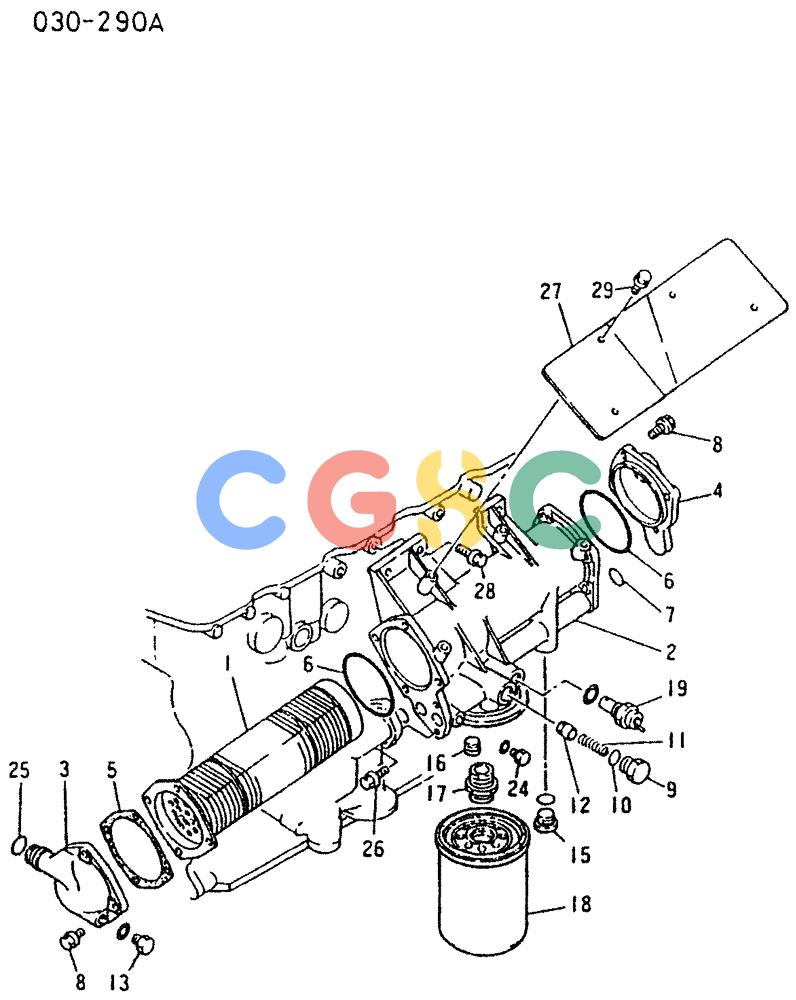

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-19. | VAME084531 | [1] | COOLER ASSY. | KOBOIL COOLER ASSY Superseded by part number: VAME304516 |
| 1. | VAME084532 | [1] | OIL COOLER FILTER | KOBELEMENT,OIL COOLER |
| 2. | VAME084533 | [1] | SHELL | KOBSHELL,OIL COOLER |
| 3. | VAME084534 | [1] | COVER | KOBCOVER,OIL COOLER |
| 4. | VAME084535 | [1] | COVER | KOBCOVER,OIL COOLER |
| 5. | VAME084536 | [1] | GASKET | KOBGAS.KET Superseded by part number: VAME353144 |
| 6. | VAME084537 | [2] | O-RING | KOBO-RING 80 |
| 7. | VAMH035091 | [1] | O-RING | KOBO-RING 22 |
| 8. | VAMF140025 | [8] | SCREW | KOBBOLT,FLANGE 8X20 |
| 9. | VAME014717 | [1] | PINION | KOBPLUG Superseded by part number: 240099A1 |
| 10. | VAMH035044 | [2] | O-RING | KOBO-RING Superseded by part number: 240098A1 |
| 11. | VAME084526 | [1] | SPRING | KOBSPRING BY- PASS VALVE |
| 12. | VAME084527 | [1] | VALVE PRESSURE RELIE | KOBVALVE,BY- PASS Superseded by part number: 240095A1 |
| 13. | VAME084528 | [1] | PLUG | KOBPLUG |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 15. | VAMH037117 | [1] | PLUG | KOBPLUG |
| 16. | VAMF665103 | [1] | PLUG PLUG PT3/8 | PLUG PLUG PT3/8 |
| 17. | VAME084529 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 18. | VAME084530 | [1] | ELEMENT | KOBELEMENT,OIL FILTER Superseded by part number: 2451U333-1 |
| 19. | VAME040217 | [1] | BUZZER | KOBALARM,OIL BY-PASS |
| . . | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 24. | VAME031088 | [1] | PLUG | KOBPLUG |
| 25. | VAMF520016 | [1] | O-RING | KOBO-RING 22.1 |
| 26. | VAMF140225 | [2] | BOLT | KOBBOLT,FLANGE 8X20 |
| 27. | VAME084518 | [1] | INSULATOR | KOBINSULATOR,HEAT O/C |
| 28. | VAMH000714 | [3] | BOLT | KOBBOLT,FLANGE 10X25 |
| 29. | VAMF140221 | [4] | BOLT | KOBBOLT,FLANGE 8X12 |
