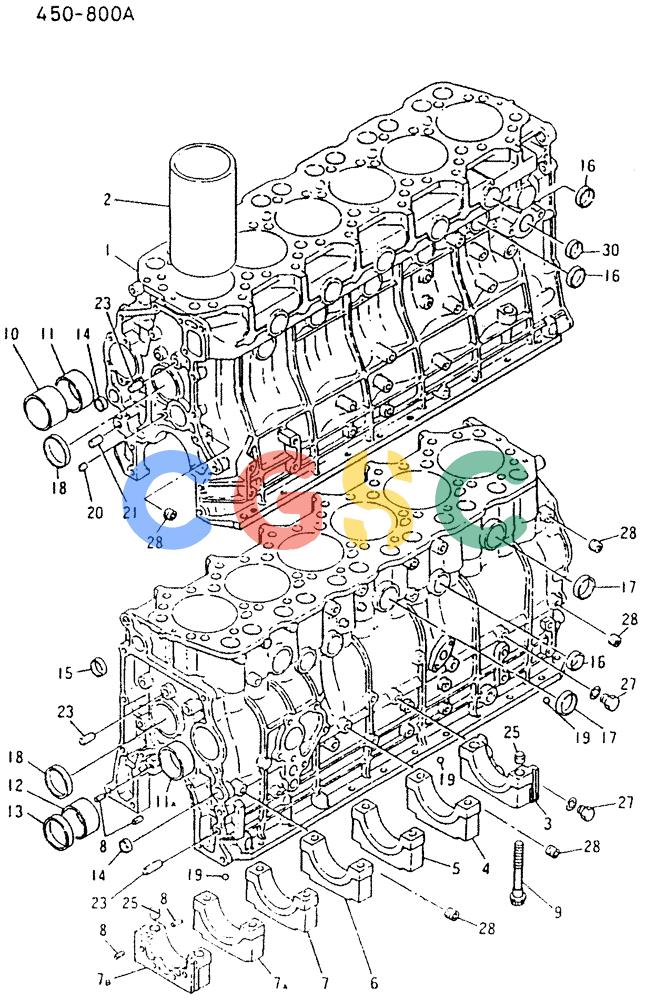

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (07-001) - CYLINDER BLOCK REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
338 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-30. | VAME999886 | [1] | CRANK CASE ASSY CRANKCASE ASSY 6D31.31T | CRANK CASE ASSY CRANKCASE ASSY 6D31.31T |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKCASE |
| 2. | VAME011626 | [6] | SLEEVE CYLINDER | KOBSLEEVE,CYL STD |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG HO.1 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG HO.2 |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG NO.3 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG NO.4 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG NO.5 |
| 7A. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG NO.6 |
| 7B. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG NO.7 |
| 8. | VAMH012041 | [6] | PIN | KOBPIN,SPG 1X10 |
| 9. | VAME011519 | [14] | SCREW | KOBBOLT 14X102 |
| 10. | VAME029225 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO.1 |
| 11. | VAME011593 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO.2 |
| 11A. | VAME081526 | [1] | BEARING LINER | KOBSCREW BUSHING,CAMSHAFT NO.3 |
| 12. | VAME011594 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO.4 |
| 13. | VAMH037751 | [1] | CAP | KOBCAP,SEALING 57 |
| 14. | VAMS666136 | [2] | PLUG | KOBCAP,SEALING 22 |
| 15. | VAMS666138 | [1] | CAP | KOBCAP,SEALING 28 |
| 16. | VAMS666140 | [12] | PLUG | KOBCAP,SEALING 35 |
| 17. | VAMD000427 | [3] | PLUG | KOBCAP,SEALING 10 Superseded by part number: MD000427 |
| 18. | VAMH037754 | [2] | CAP | KOBCAP,SEALING 50 |
| 19. | VAMF540011 | [4] | BALL | KOBBALL,STEEL |
| 20. | VAME029046 | [1] | PLUG | KOBPLUG |
| 21. | VAMF472406 | [1] | PIN | KOBPIN,DOWEL 12,FOR FR |
| 23. | VAMH007010 | [3] | PIN | KOBPIN,DOWEL 12,FOR RE |
| 25. | VAME011618 | [4] | PIN | KOBPIN,DOWEL,FOR BRG CAP |
| 27. | VAME031088 | [2] | PLUG | KOBSCREW,SET |
| . . | VAMF660063 | [2] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 28. | VAMH037237 | [5] | PLUG | KOBPLUG,TAPER |
| 30. | VAMF665540 | [1] | CAP | KOBCAP,SEALING 30 |
