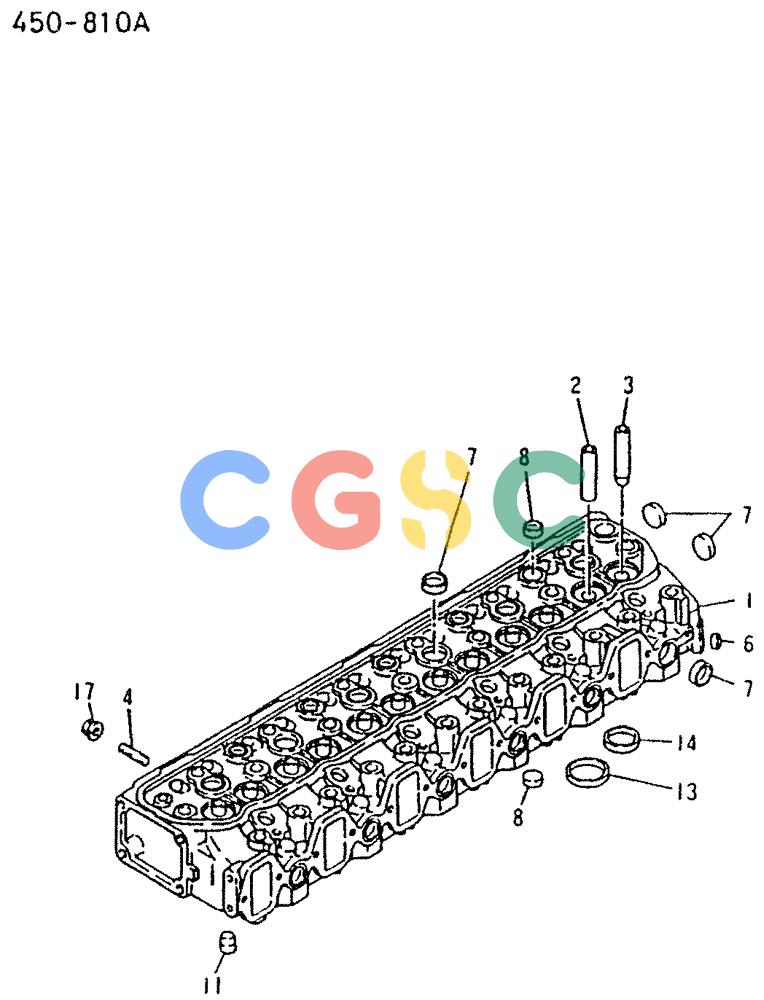

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (07-002) - CYLINDER HEAD REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
377 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME999844 | [1] | HEAD | KOBCYLINDER HEAD ASSY W/O CLOW Superseded by part number: VAME997159 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD.CYL |
| 2. | VAME031886 | [6] | GUIDE | KOBGUIDE,VALVE INLET |
| 3. | VAME031888 | [6] | GUIDE | KOBGUIDE,VALVE EXH |
| 4. | VAMH002174 | [12] | STUD | KOBEXHUST MANIFOLD M10x33mm Long |
| 6. | VAMS666132 | [6] | CAP | KOBCAP,SEALING 14 |
| 7. | VAMS666138 | [14] | CAP | KOBCAP,SEALING 28 |
| 8. | VAMS666136 | [11] | PLUG | KOBCAP,SEALING 22 |
| 11. | VAME011012 | [1] | GUIDE | KOBDIRECTOR |
| 13. | VAME011058 | [6] | SEAT, VALVE | KOBINSERT,VALVE SEAT INLET Superseded by part number: VAME013297 |
| 14. | VAME029004 | [6] | SEAT | KOBINSERT,VALVE SEAT EX11 Superseded by part number: VAME013188 |
| 17. | VAMH004054 | [12] | NUT | KOBNUT,FLANGE 10,FOR EX11 MANIF Superseded by part number: 134868A1 |
