沃尔沃零件查询D13B-A MP D13B-B MP D13B-C MP D13B-D MP D13B-G MP D13B-H MP D13B-J MP D13B-K MP D13B-L MP D13B-M MP D13B-C MHElectrical SystemElectrical Materials, InstrumentEPC Volvo Penta Parts catalog_沃尔沃遍达Volvo Penta_工程机械

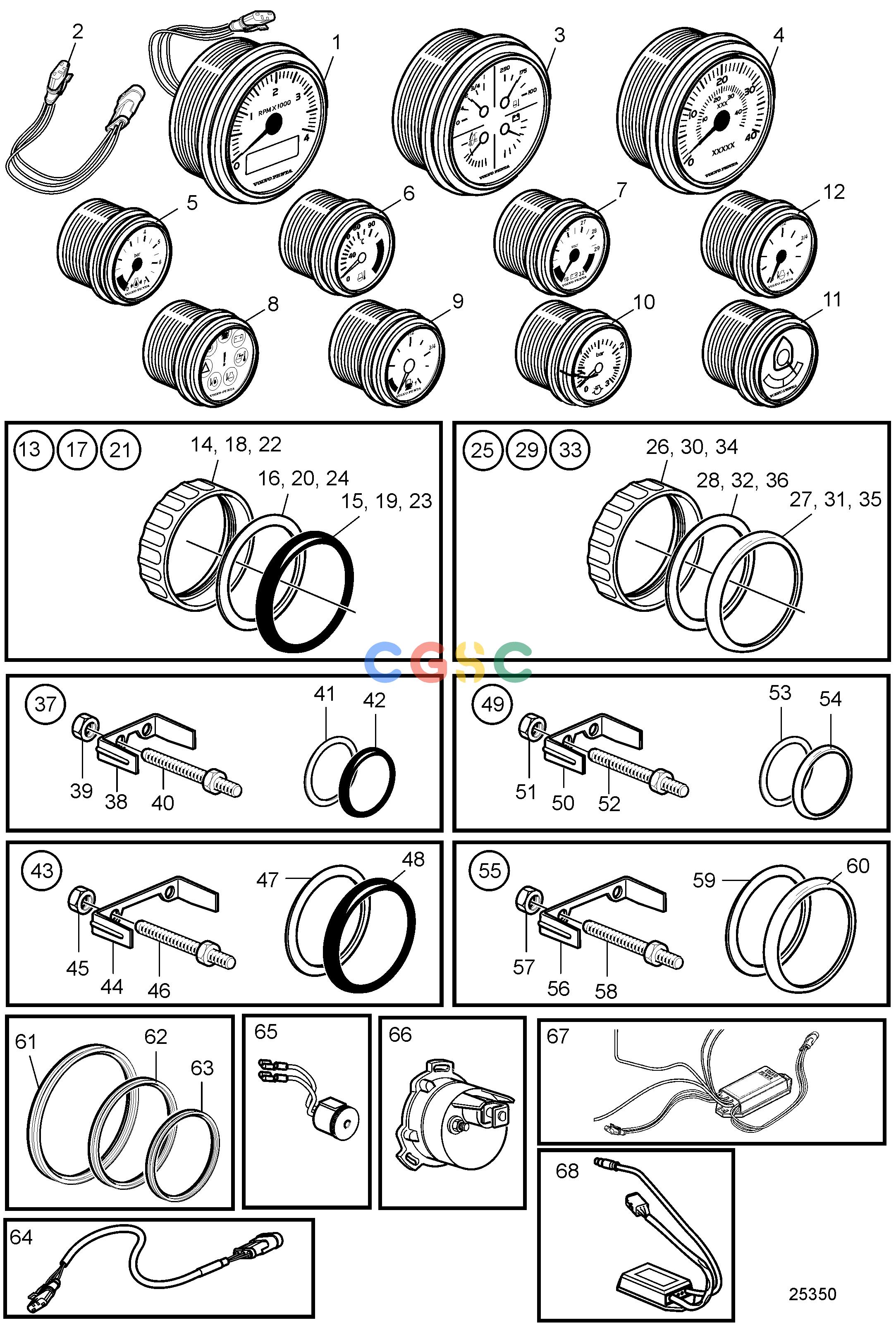

Pos.	Part No	Qty	Parts name	Comments
1.	21234542	[1]	Tachometer kit	White, 4000rpm, Cable included, D=110mm
1.	21234543	[1]	Tachometer kit	Black, 4000rpm, Cable included, D=110mm
1.	21509649	[1]	Tachometer kit	White, 4000rpm, Cable included, D=85mm
1.	21509650	[1]	Tachometer kit	Black, 4000rpm, Cable included, D=85mm
1.	21509644	[1]	Tachometer, kit	White, 6000rpm, Cable included, D=85mm
1.	21509646	[1]	Tachometer, kit	Black, 6000rpm, Cable included, D=85mm
2.	3884843	[1]	Wiring harness
3.	3885214	[1]	Instrument	Four in one gauge (oil pressure, coolant temp, fuel level, volt meter), White, D=110mm
3.	3885215	[1]	Instrument	Four in one gauge (trim analog, coolant temp, fuel level, volt meter), White, D=110mm
3.	3847876	[1]	Instrument	Four in one gauge (oil pressure, coolant temp, fuel level, volt meter), Black, D=110mm
3.	3847879	[1]	Instrument	Four in one gauge (trim analog, coolant temp, fuel level, volt meter), Black, D=110mm
4.	874930	[1]	Speedometer	White 0-40 Knots, 0-40 mph
4.	874917	[1]	Speedometer	Black 0-40 knots, 0-40 mph
4.	881650	[1]	Speedometer	White 0-60 Knots, 0-60 mph
4.	881645	[1]	Speedometer	Black 0-60 knots, 0-60 mph
4.	21234531	[1]	Speedometer	Black 40-45 knots
4.	21234532	[1]	Speedometer	White 40-5 knots
4.	3807508	[1]	Speedometer	Black, 0-40 mph
4.	3847851	[1]	Speedometer	Black, 0-45 mph
4.	3807510	[1]	Speedometer	Black, 0-60 mph
4.	3847857	[1]	Speedometer	Black, 0-70 mph
4.	3807512	[1]	Speedometer	White, 0-40 mph
4.	3847854	[1]	Speedometer	White, 0-45 mph
4.	3807513	[1]	Speedometer	White, 0-60 mph
4.	3847860	[1]	Speedometer	White, 0-70 mph
4.	3595249	[1]	Speedometer	Unit neutral, White, D=110mm, 0-40
4.	3595253	[1]	Speedometer	Unit neutral, White, D=110mm, 0-60
4.	3595246	[1]	Speedometer	Unit neutral, Black, D=110mm, 0-40
4.	3595250	[1]	Speedometer	Unit neutral, Black, D=110mm, 0-60
5.	874919	[1]	Oil pressure gauge	Black 0-100 psi
5.	874923	[1]	Oil pressure gauge	White 0-7 bar
5.	874932	[1]	Oil pressure gauge	White 0-100 psi
6.	874904	[1]	Thermometer, coolant water	Black 0-120°C
6.	874921	[1]	Thermometer, coolant water	White 0-120°C
6.	874918	[1]	Thermometer, coolant water	Black 40-250 °F
6.	874931	[1]	Thermometer, coolant water	White 40-250 °F
6.	881857	[1]	Thermometer, oil	Black 40-300 °F
6.	881858	[1]	Thermometer, oil	White 40-300 °F
7.	881649	[1]	Voltmeter	12V, black
7.	881658	[1]	Voltmeter	12V, white
7.	874913	[1]	Voltmeter	24V, black
7.	874925	[1]	Voltmeter	24V, white
8.	874915	[1]	Instrument, alarm	Black D=52mm
8.	874927	[1]	Instrument, alarm	White D=52mm
9.	874914	[1]	Fuel gauge	Black D=52mm
9.	874926	[1]	Fuel gauge	White D=52mm
10.	874910	[1]	Turbo pressure gauge	Black 0-3 bar
10.	874920	[1]	Turbo pressure gauge	Black 0-45 psi
10.	874924	[1]	Turbo pressure gauge	White 0-3 bar
10.	874933	[1]	Turbo pressure gauge	White 0-45 psi
11.	3812914	[1]	Rudder indicator	Black
11.	3812917	[1]	Rudder indicator	White
12.	874911	[1]	Pressure gauge, freshwater	Black 0-3 bar
12.	874912	[1]	Pressure gauge, sea water	Black 0-3 bar
13.	874709	[1]	Mounting kit	Black D=52mm
14.	874450	[1]	Attaching ring
15.	874448	[1]	Ring
16.	874707	[1]	Gasket
17.	874708	[1]	Mounting kit	Black D=85mm
18.	874449	[1]	Attaching ring
19.	874447	[1]	Ring
20.	874706	[1]	Gasket
21.	3847888	[1]	Mounting kit	Black D=110mm
22.	3884098	[1]	Attaching ring
23.	3847887	[1]	Ring
24.	3884103	[1]	Gasket
25.	874733	[1]	Mounting kit	Chrome D=52mm
26.	874450	[1]	Attaching ring
27.	874731	[1]	Ring
28.	874707	[1]	Gasket
29.	874732	[1]	Mounting kit	Chrome D=85mm
30.	874449	[1]	Attaching ring
31.	874730	[1]	Ring
32.	874706	[1]	Gasket
33.	3885216	[1]	Mounting kit	Chrome D=110mm
34.	3884098	[1]	Attaching ring
35.	3884096	[1]	Ring
36.	3884103	[1]	Gasket
37.	881611	[1]	Brace kit	Black D=52mm
38.	881607	[1]	Brace
39.	881610	[2]	Nut
40.	881609	[2]	Stud
41.	874707	[1]	Gasket
42.	874448	[1]	Ring
43.	881612	[1]	Brace kit	Black D=85mm
44.	881608	[1]	Brace
45.	881610	[2]	Nut
46.	881609	[2]	Stud
47.	874706	[1]	Gasket
48.	874447	[1]	Ring
49.	881613	[1]	Brace kit	Chrome D=52mm
50.	881607	[1]	Brace
51.	881610	[2]	Nut
52.	881609	[2]	Stud
53.	874707	[1]	Gasket
54.	874731	[1]	Ring
55.	881614	[1]	Brace kit	Chrome D=85mm
56.	881608	[1]	Brace
57.	881610	[2]	Nut
58.	881609	[2]	Stud
59.	874706	[1]	Gasket
60.	874730	[1]	Ring
61.	3886791	[1]	X-ring	For flush mounting., D=110mm
62.	874844	[1]	X-ring	For flush mounting., D=85mm
63.	874843	[1]	X-ring	For flush mounting., D=52mm
64.	874759	[1]	Extension cable	L=1000mm
64.	3807043	[1]	Extension cable	L=3000mm
65.	3817974	[1]	Alarm
66.	3809099	[1]	Rudder position sens	Rudder indicator
67.	3848966	[1]	Control unit, dimmer
68.	3889760	[1]	Auto pilot
