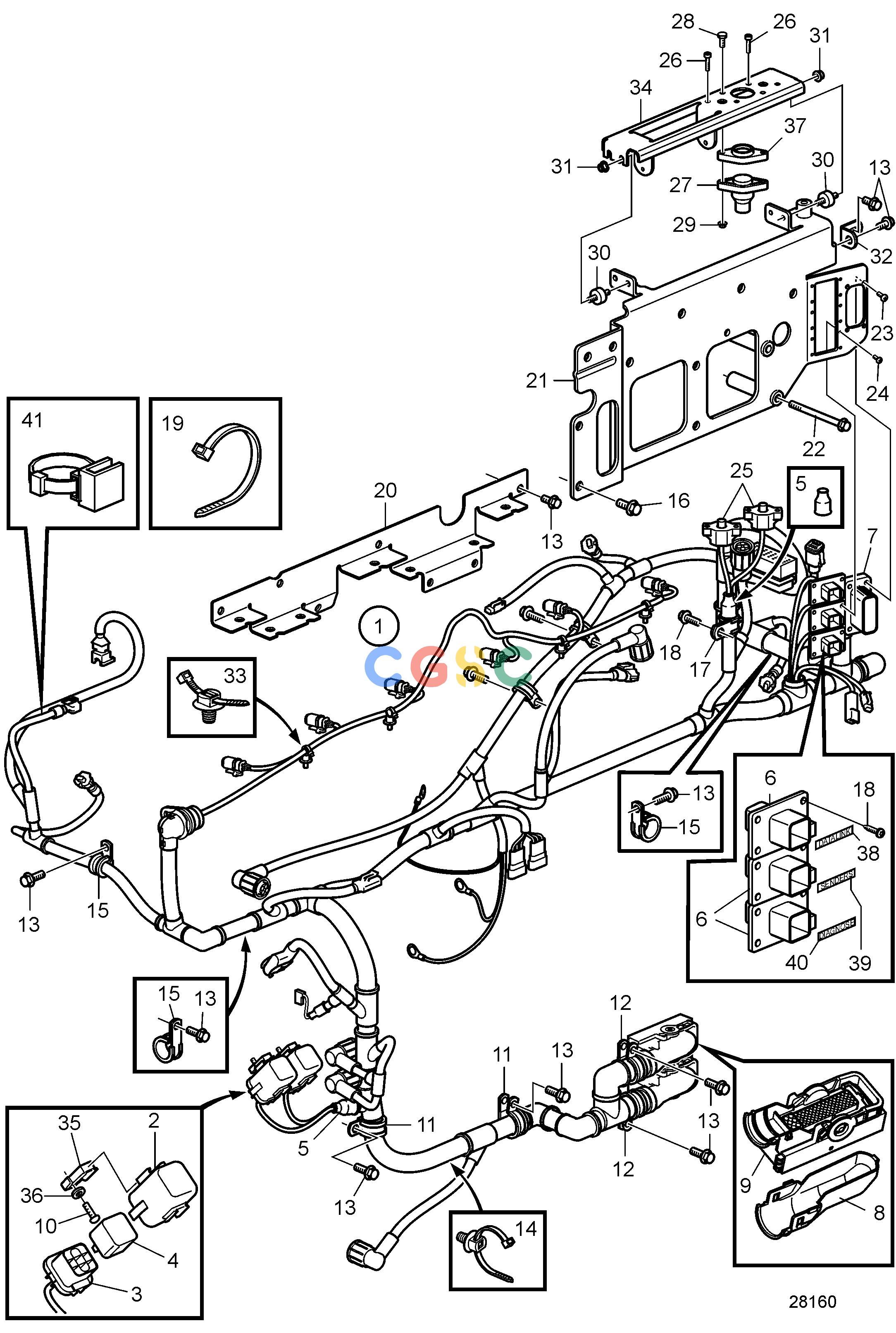

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
381 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21421475
|
[1] |
Wiring harness
|
|
| 2. |
3587173
|
[2] |
Relay box
|
|
| 3. |
3587172
|
[2] |
Relay socket
|
|
| 4. |
3171420
|
[2] |
Relay
|
|
| 5. |
4803711
|
[2] |
Protecting sleeve
|
|
| 6. |
992330
|
[3] |
Housing
|
|
| 7. |
992329
|
[1] |
Housing
|
|
| 8. |
20429844
|
[2] |
Adapter
|
|
| 9. |
20429842
|
[2] |
Housing
|
|
| 10. |
969407
|
[2] |
Six point socket scr
|
|
| 11. |
947827
|
[2] |
Clamp
|
|
| 12. |
949997
|
[2] |
Clamp
|
|
| 13. |
984733
|
[7] |
Flange screw
|
|
| 14. |
980881
|
[1] |
Cable tie
|
|
| 15. |
990487
|
[2] |
Clamp
|
|
| 16. |
984752
|
[4] |
Flange screw
|
|
| 17. |
949747
|
[2] |
Clamp
|
|
| 18. |
969514
|
[12] |
Six point socket scr
|
|
| 19. |
948211
|
[1] |
Cable tie
|
D=73mm
|
| 19. |
983472
|
[6] |
Cable tie
|
D=35mm high tempererature
|
| 20. |
21204994
|
[1] |
Bracket
|
|
| 21. |
21320877
|
[1] |
Bracket
|
|
| 22. |
984744
|
[2] |
Flange screw
|
|
| 23. |
969405
|
[4] |
Six point socket scr
|
|
| 24. |
969514
|
[12] |
Six point socket scr
|
|
| 25. |
873952
|
[2] |
Automatic fuse
|
|
| 26. |
959190
|
[4] |
Hex. socket screw
|
|
| 27. |
21847110
|
[1] |
Stop button
|
|
| 28. |
955269
|
[2] |
Hexagon screw
|
|
| 29. |
990938
|
[4] |
Flange nut
|
|
| 30. |
1348141
|
[3] |
Absorber
|
|
| 31. |
990939
|
[3] |
Flange nut
|
|
| 32. |
965553
|
[1] |
Bracket
|
|
| 33. |
8131393
|
[4] |
Retainer
|
|
| 34. |
21375373
|
[1] |
Fuse holder
|
|
| 35. |
21492847
|
[2] |
Relay bracket
|
|
| 36. |
960138
|
[2] |
Washer
|
|
| 37. |
21738845
|
[1] |
Cover
|
|
| 38. |
21243307
|
[1] |
Decal
|
|
| 39. |
21227098
|
[1] |
Decal
|
|
| 40. |
21243308
|
[1] |
Decal
|
|
| 41. |
25375469
|
[1] |
Retainer
|
|
