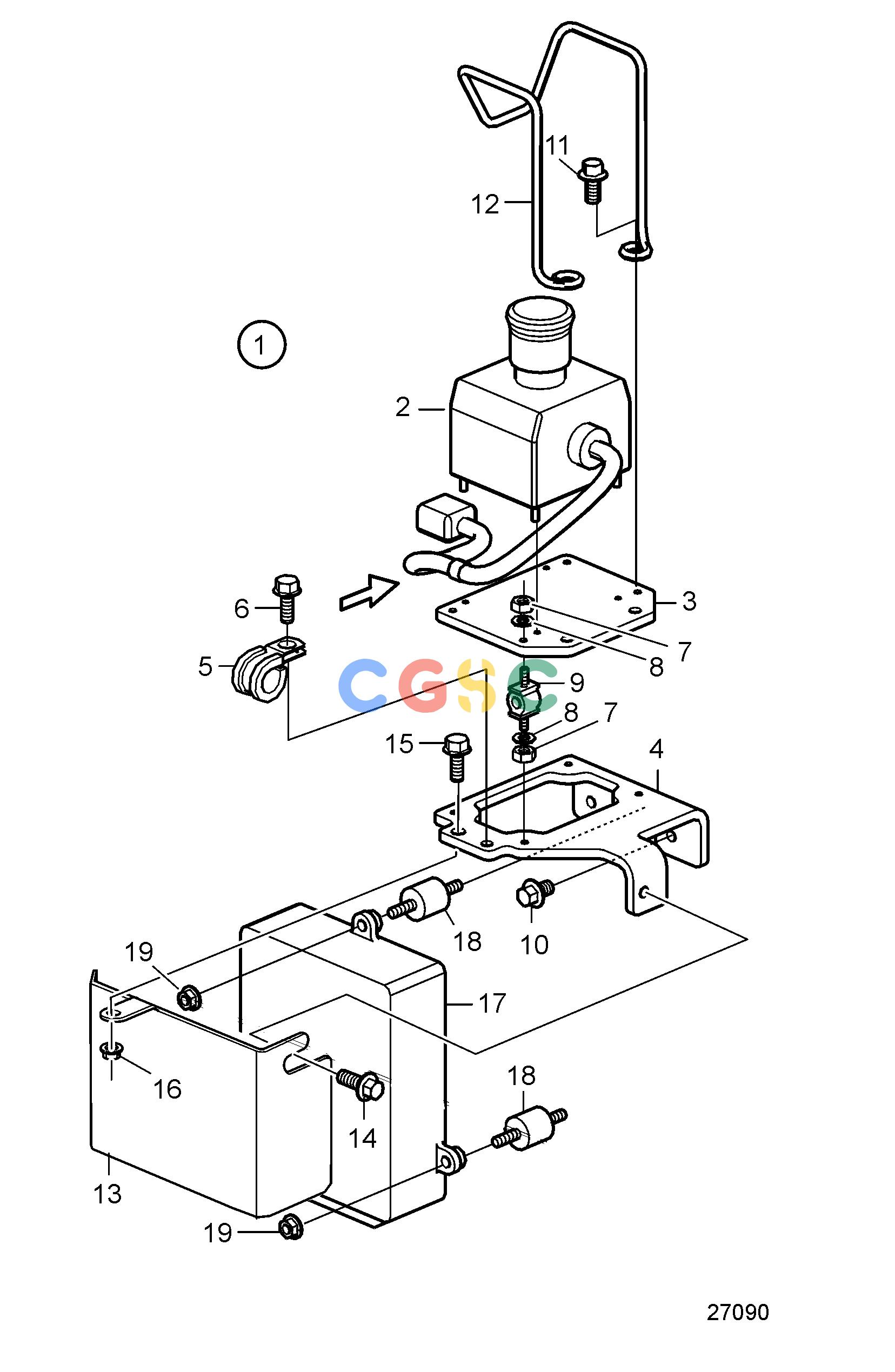

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHElectrical SystemElectrical,Classifiable.Emergency stopEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21640262
|
[1] |
Emergency stop
|
|
| 2. |
21624100
|
[1] |
Emergency stop
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
949746
|
[1] |
Clamp
|
|
| 6. |
984725
|
[1] |
Flange screw
|
|
| 7. |
955779
|
[8] |
Hexagon nut
|
|
| 8. |
955891
|
[8] |
Washer
|
|
| 9. |
21421504
|
[4] |
Rubber damper
|
|
| 10. |
984732
|
[2] |
Flange screw
|
|
| 11. |
984733
|
[2] |
Flange screw
|
|
| 12. |
3838198
|
[1] |
Protecting brace
|
|
| 13. |
21574316
|
[1] |
Protecting cover
|
|
| 14. |
984724
|
[1] |
Flange screw
|
|
| 15. |
984734
|
[1] |
Flange screw
|
|
| 16. |
990940
|
[1] |
Flange nut
|
|
| 17. |
22151644
|
[1] |
Electronic unit
|
|
| 18. |
21467854
|
[3] |
Vibration damper
|
|
| 19. |
990939
|
[3] |
Flange nut
|
|
