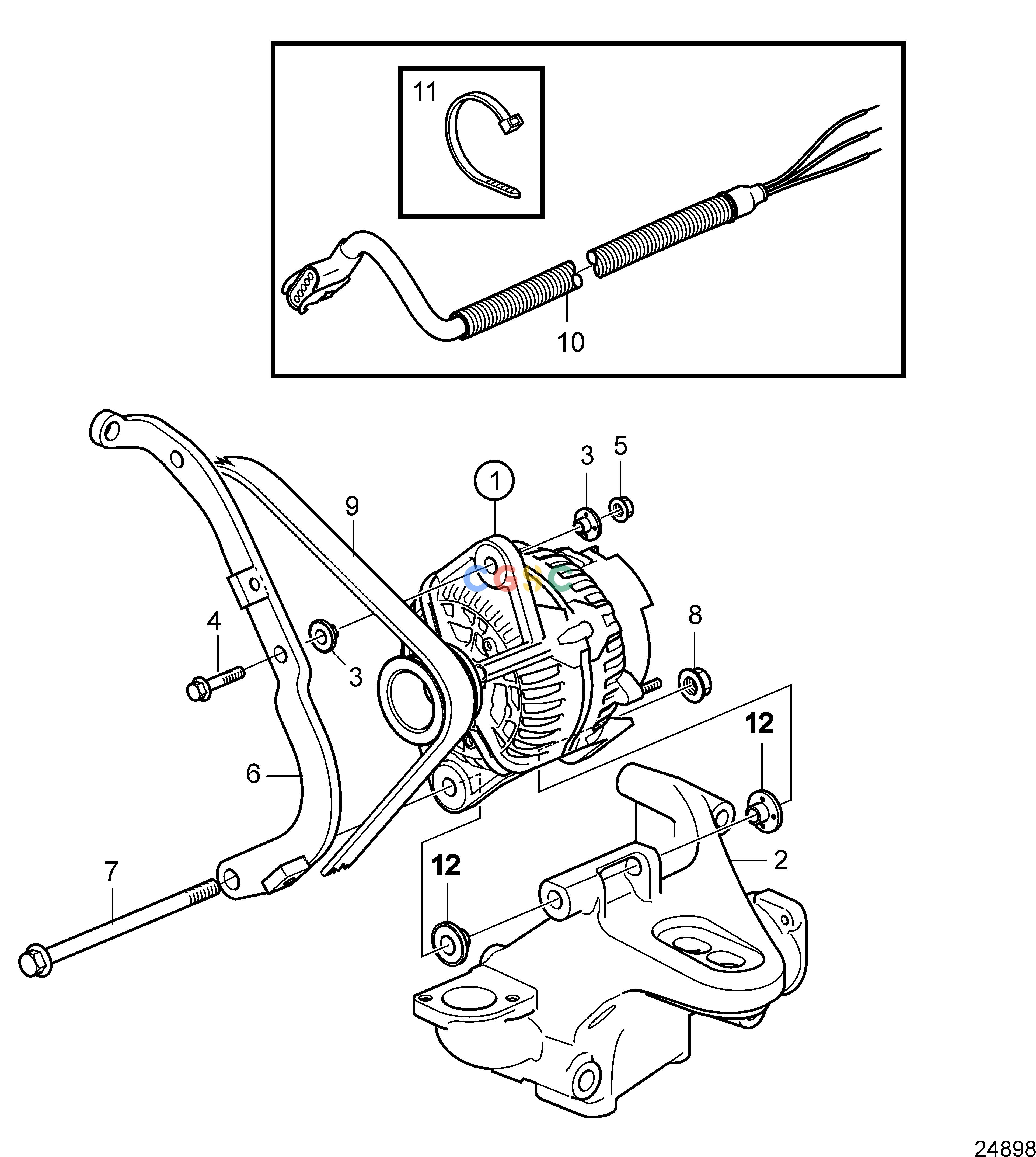

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHElectrical SystemExtra Alternator 12V 115A, 24V 110AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
531 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3587216
|
[1] |
Alternator
|
12V 115A
|
| 1. |
3803846
|
[1] |
Alternator, exch
|
12V 115A
|
| 1. |
21429786
|
[1] |
Alternator
|
24V 110A
|
| 1. |
|
|
|
|
| 2. |
7749490_164
|
|
Bracket
|
|
| 3. |
21328137
|
[2] |
Insulating bushing
|
|
| 4. |
984738
|
[1] |
Flange screw
|
|
| 5. |
990950
|
[1] |
Flange lock nut
|
|
| 6. |
7749490_164
|
|
Bracket
|
|
| 7. |
994401
|
[1] |
Flange screw
|
|
| 8. |
971099
|
[1] |
Flange lock nut
|
|
| 9. |
995162
|
[1] |
V-ribbed belt
|
For MH,MG engines SN-2013665901
|
| 9. |
60113501
|
[1] |
V-ribbed belt
|
SN2013665902-
|
| 10. |
21327509
|
[1] |
Cable kit
|
24V
|
| 11. |
948211
|
[15] |
Cable tie
|
|
| 12. |
21308514
|
[2] |
Insulating bushing
|
|
