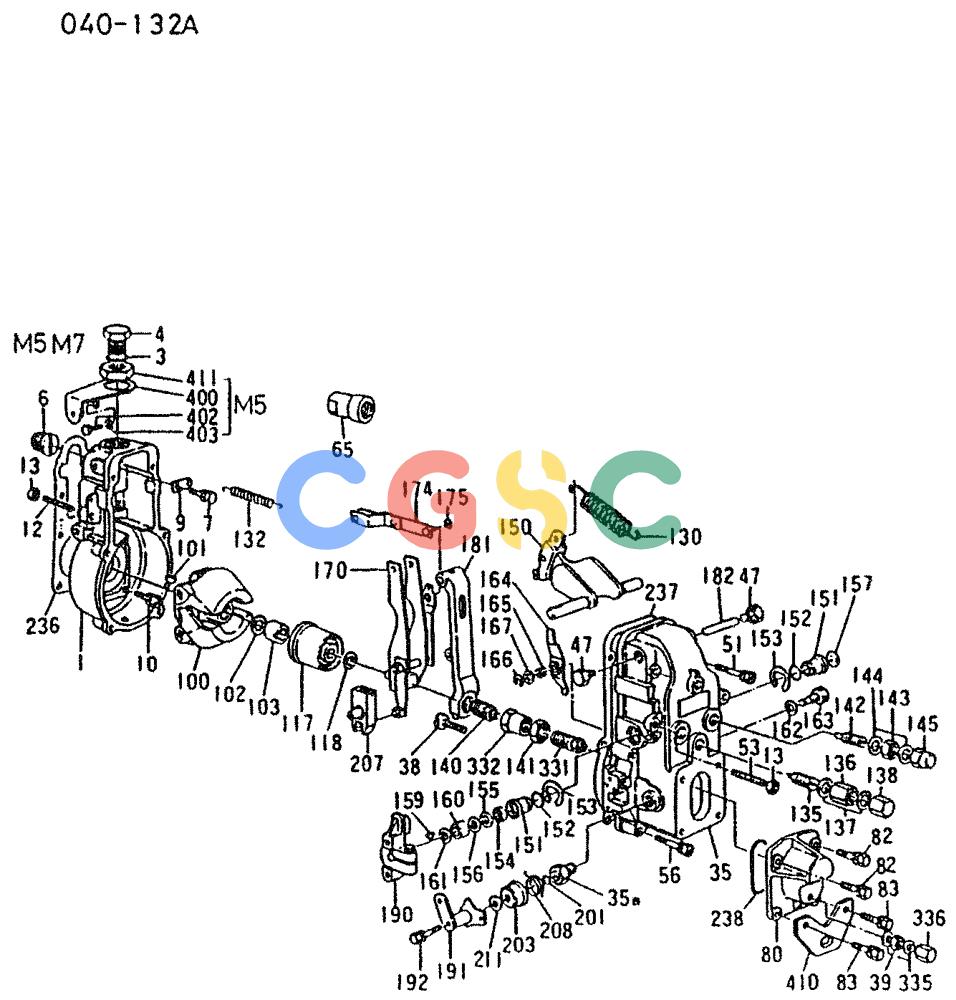

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-003) - GOVERNOR (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
971 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-411. | VAME723423 | [1] | GOVERNOR GOVERNOR ASSY,RSV TYPE, FOR M5 ONLY | GOVERNOR GOVERNOR ASSY,RSV TYPE, FOR M5 ONLY |
| 1-410. | VAME723830 | [1] | GOVERNOR ASSY,RSV TYPE, FOR M7 ONLY | |
| 1. | VAME701712 | [1] | HOUSING,GOV FOR M7 ONLY | |
| 1. | VAME723444 | [1] | HOUSING,GOV FOR M5 ONLY | |
| 3. | VAME705361 | [1] | O-RING | KOBO-RIHG |
| 4. | VAME704666 | [1] | PLUG | KOBPLUG ,FOR M7 ONLY |
| 4. | VAME723180 | [1] | PLUG | KOBPLUG ,FOR M5 ONLY |
| 6. | VAME704502 | [1] | ACTUATOR | KOBADAPTER |
| 7. | VAME705224 | [1] | BOLT | KOBBOLT Superseded by part number: VA0200181840 |
| 9. | VAME704654 | [1] | PLATE | |
| 10. | VAME705284 | [6] | BOLT | KOBBOLT Superseded by part number: VA0290106810 |
| 12. | VAME704655 | [1] | SCREW | KOBSCREW |
| 13. | VAME701505 | [2] | NUT,LOCK | |
| 35. | VAME716093 | [1] | COVER | KOBCOVER,GOV |
| 35B. | VAME704658 | [1] | BUSHING | KOBBUSHING |
| 36. | VAME722812 | [1] | SCREW | |
| 39. | VAME705227 | [1] | NUT | |
| 47. | VAME704568 | [2] | PLUG | KOBPLUG |
| 51. | VAME705321 | [2] | BOLT | KOBBOLT Superseded by part number: VA0201065040 |
| 53. | VAME704662 | [1] | SCREW | KOBSCREW |
| 56. | VAME705296 | [4] | BOLT | KOBBOLT |
| 65. | VAME716097 | [1] | LIMIT SWITCH | KOBLIMITER |
| 80. | VAME722843 | [1] | COVER | |
| 82. | VAME705392 | [2] | BOLT | |
| 83. | VAME717714 | [2] | BOLT | KOBBOLT Superseded by part number: VA0200061640 |
| 100. | VAME704945 | [1] | FLYWHEEL | KOBFLYWEIGHT ASSY Superseded by part number: VA1541010020 |
| 101. | VAME705233 | [1] | KEY | KOBKEY,WOODRUFF Superseded by part number: VA0258031610 |
| 102. | VAME705234 | [1] | WASHER | KOBWASHER,SPG |
| 103. | VAME705325 | [1] | NUT | KOBNUT |
| 117. | VAME704517 | [1] | SLEEVE | KOBLEEVE ASSY |
| 118. | VAME705236 | [1] | SHIM | KOBSHIM, T = 0.2 |
| 118. | VAME705237 | [1] | SHIM | KOBSHIM,T=0.3 |
| 118. | VAME705238 | [1] | SHIM | KOBSHIM,T = 0.4 |
| 118. | VAME705239 | [1] | SHIM | KOBSHIM,T = 1.0 |
| 118. | VAME717875 | [1] | SHIM | KOBSHIM,T = 0 .5 |
| 118. | VAME717876 | [1] | SHIM | KOBSHIM,T = 1.5 |
| 130. | VAME704729 | [1] | SPRING,GOV | |
| 132. | VAME716095 | [1] | SPRING | KOBSPRING,START |
| 135. | VAME704906 | [1] | CAPSULE,SPG, FOR M5 ONLY | |
| 135. | VAME716556 | [1] | CAPSULE,SPG,FOR M7 ONLY | |
| 136. | VAME704669 | [1] | NUT | KOBNUT |
| 137. | VAME705218 | [2] | GASKET | KOBGASKET Superseded by part number: VA0265121540, 77270060 |
| 138. | VAME701510 | [1] | NUT,CAP | |
| 140. | VAME722799 | [1] | CAPSULE,SPG, FOR M5 ONLY | |
| 140. | VAME722849 | [1] | CAPSULE,SPG,FOR M7 ONLY | |
| 141. | VAME716705 | [1] | NUT | |
| 142. | VAME704908 | [1] | CAPSULE.SPG | |
| 143. | VAME705395 | [1] | NUT | |
| 144. | VAME705396 | [2] | GASKET | KOBGASKET Superseded by part number: VA0265162040, 77270080 |
| 145. | VAME704733 | [1] | NUT,CAP | |
| 150. | VAME704751 | [1] | LEVER | KOBLEVER,SWIVEL |
| 151. | VAME701981 | [2] | SWITCH | KOBBUSHING |
| 152. | VAME705340 | [1] | O-RING | KOBO-RING |
| 153. | VAME705381 | [2] | SNAP RING | KOBRING,SNAP |
| 154. | VAME705333 | [1] | OIL SEAL | KOBOILSEAL |
| 155. | VAME705334 | [1] | SHIM | KOB Superseded by part number: VA1394110000 |
| 156. | VAME705384 | [1] | GASKET | KOBSHIM |
| 157. | VAME705338 | [1] | PLUG | KOBPLUG |
| 159. | VAME705248 | [1] | KEY | KOBKEY,WOODRUFF Superseded by part number: VA0258031310 |
| 160. | VAME704924 | [1] | COLLAR | KOBCOLLAR |
| 161. | VAME704608 | [1] | WASHER | KOBWASHER Superseded by part number: VA1542060200 |
| 162. | VAME705397 | [1] | GASKET | KOBGASKET |
| 163. | VAME704735 | [1] | BOLT | |
| 164. | VAME716106 | [1] | LEVER | KOBLEVER |
| 165. | VAME716101 | [1] | SPRING | KOBSPRIHG |
| 166. | VAME705398 | [1] | RING | KOBRING,SNAP |
| 167. | VAME705399 | [1] | MASHER | |
| 170. | VAME7E3064 | [1] | GUIDE LEVER ASSY | |
| 174. | VAME704674 | [1] | LINK | |
| 175. | VAME705249 | [1] | SNAP RING | KOBRING,SNAP |
| 181. | VAME716103 | [1] | LEVER,TENSION | |
| 182. | VAME704676 | [1] | PIN | KOBPIN,TENSION LEVER Superseded by part number: VA1542370100 |
| 190. | VAME704740 | [1] | LEVER | KOBLEVER,CONTROL |
| 191. | VAME723459 | [1] | LEVER | KOBLEVER,STOP |
| 192. | VAME717700 | [1] | BOLT | KOBBOLJ |
| 201. | VAME705385 | [1] | PISTON RING SET | KOBO-RING Superseded by part number: VA0296310030 |
| 203. | VAME704681 | [1] | CAP | KOBCAP Superseded by part number: VA1543220100 |
| 207. | VAME716106 | [1] | LEVER | KOBLEVER ASSY |
| 208. | VAME717039 | [1] | SPRING | KOBSPRIHG Superseded by part number: VA1543277600 |
| 211. | VAME717813 | [1] | SHIM | KOBSHIM, T=0.20 |
| 211. | VAME717814 | [1] | SHIM,T= 0.25 | |
| 211. | VAME717815 | [1] | SHIM,T=0.30 | |
| 211. | VAME717816 | [1] | SHIM,T=0.35 | |
| 211. | VAME717817 | [1] | SHIM,T=0.40 | |
| 211. | VAME717779 | [1] | SHIM,T=0.50 | |
| 236. | VAME704542 | [1] | GASKET | KOBGASKET Superseded by part number: VA1543507700 |
| 237. | VAME704618 | [1] | GASKET | KOBGASKET Superseded by part number: VA1543900300 |
| 238. | VAME705342 | [1] | O-RING | KOBO-RIHG Superseded by part number: VA0296352020 |
| 331. | VAME722845 | [2] | CAPSULE.SPG | |
| 332. | VAME705339 | [1] | NUT | |
| 335. | VAME717738 | [2] | GASKET | KOBGASKET Superseded by part number: VA0265061040 |
| 336. | VAME704757 | [1] | NUT | KOBNUT,CAP |
| 400. | VAME723464 | [1] | BRACKET ,FOR M5 ONLY | |
| 402. | VAME723465 | [1] | BOLT,FOR M5 ONLY | |
| 403. | VAME705378 | [1] | WASHER,SPG,FOR M5 ONLY | |
| 410. | VAME088153 | [1] | BRACKET | |
| 411. | VAME723176 | [1] | NUT,FOR M5 ONLY | |
