神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-004) - FUEL FEED PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
158 次

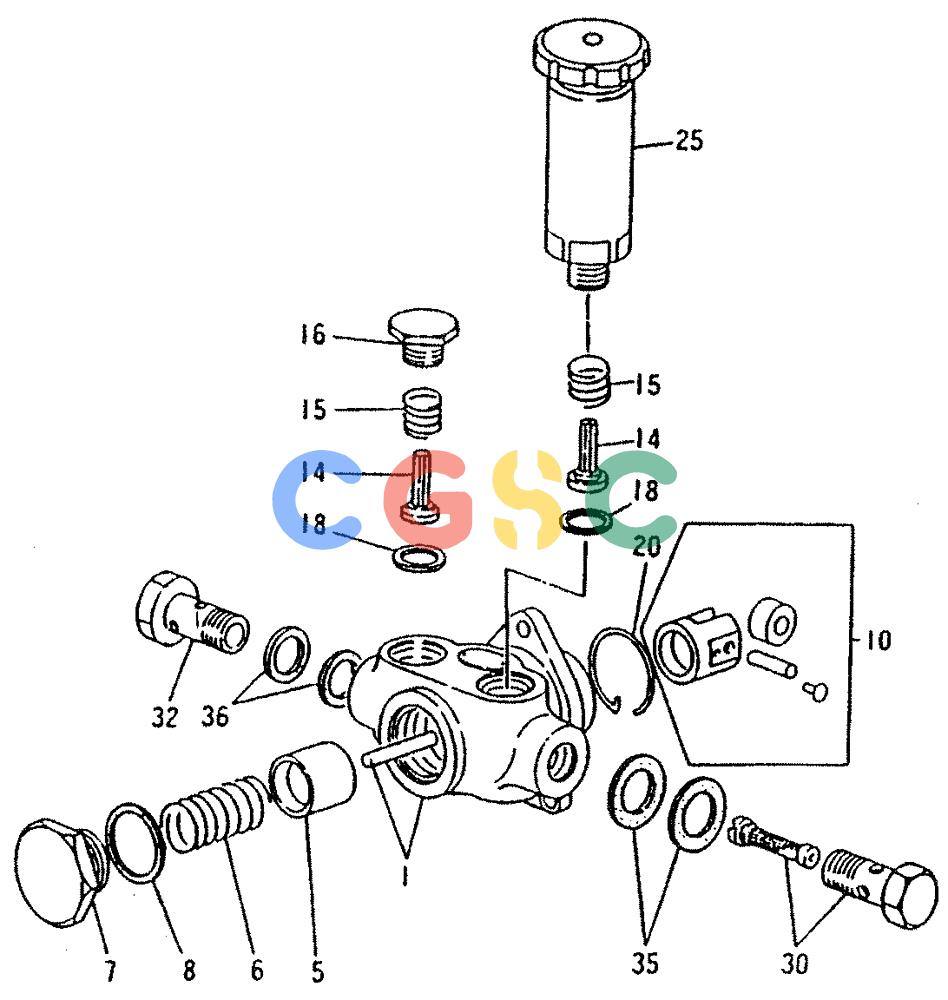

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-36. | VAME717104 | [1] | PUMP | KOBFUEL FEED PUMP ASSY |
| 1. | VAME716556 | [1] | HOUSING,FEED PUMP | |
| 5. | VAME705020 | [1] | PISTON | KOBPISTON Superseded by part number: VA1521001120 |
| 6. | VAME705021 | [1] | SPRING | KOBSPRING,PISTON |
| 7. | VAME705022 | [1] | PLUG | KOBPLUG |
| 8. | VAME705275 | [1] | GASKET | KOBGASKET Superseded by part number: VA0293326030 |
| 10. | VAME705099 | [1] | TAPPET | KOBTAPPET |
| 11. | VAME705027 | [2] | VALVE | KOBVALVE Superseded by part number: VA1521150200, 77270043 |
| 12. | VAME705028 | [2] | SPRING | KOBSPRING,CHECK/V Superseded by part number: 77270044, VA1521160200 |
| 16. | VAME705029 | [1] | PLUG | KOBPLUG |
| 18. | VAME705276 | [2] | PACKING | KOBGASKET Superseded by part number: VA0293316030, 77270063 |
| 20. | VAME705030 | [1] | RING | KOBRINGTSNAP |
| 25. | VAME717630 | [1] | LUBE PUMP | KOBPUMP,PRIMING Superseded by part number: VA1522005620 |
| 30. | VAME717659 | [1] | BOLT | KOBBOLT,EYE Superseded by part number: VA1523006920 |
| 32. | VAME717882 | [1] | BOLT | KOBBOLT,EYE Superseded by part number: VA1398140900 |
| 35. | VA3126106400 | [2] | GASKET | KOBGASKET Superseded by part number: VA0293414130 |
| 36. | VA3126106400 | [2] | GASKET | KOBGASKET Superseded by part number: VA0293414130 |
