神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-006) - FUEL INJECTION PIPE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
638 次

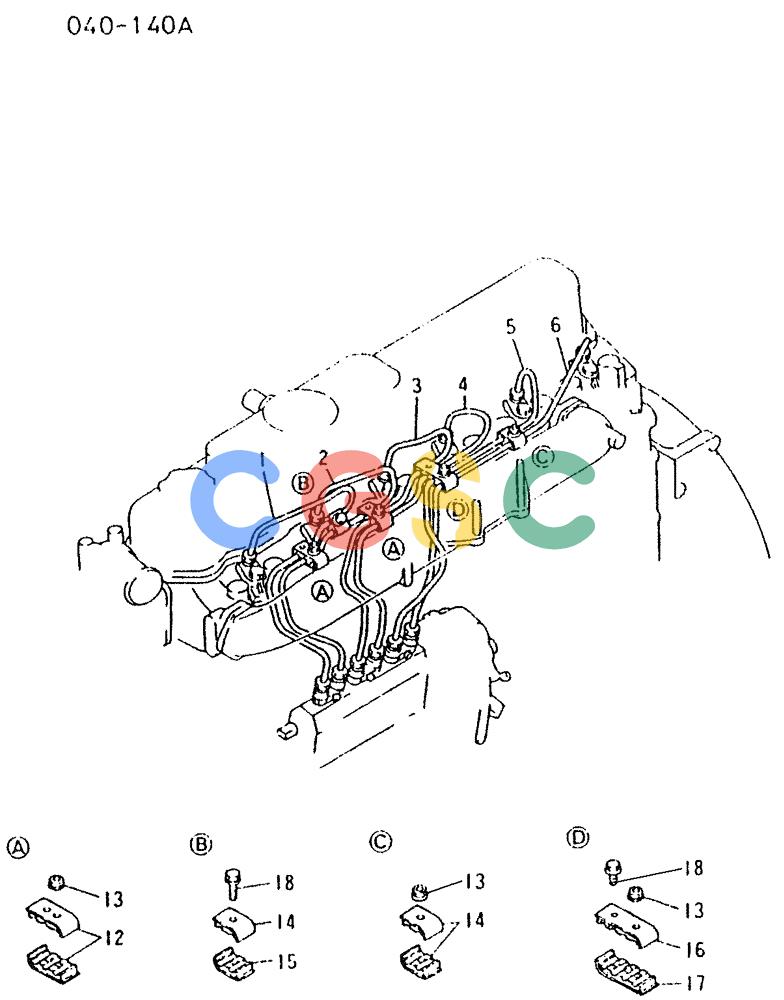

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME018174 | [1] | PIPE | KOBPIPE,INJECTION N0.1 |
| 2. | VAME018175 | [1] | PIPE | KOBPIPE,INJEC1IOM NO.2 |
| 3. | VAME018176 | [1] | PIPE | KOBPIPE,INJECTION NO.3 |
| 4. | VAME018177 | [1] | PIPE | KOBPIPE,INJECTION NO.4 |
| 5. | VAME018178 | [1] | PIPE | KOBPIPE,INJECTION NO.5 |
| 6. | VAME018179 | [1] | PIPE | KOBPIPE,INJECTION NO.6 |
| 12. | VAMH021250 | [4] | CLAMP | KOBCLAMP A |
| 13. | VAMF434103 | [4] | NUT | KOBHUT,FLANGE 6 |
| 14. | VAMH020258 | [1] | CLAMP | KOBCLAMP Superseded by part number: 134717A1 |
| 15. | VAMH020259 | [1] | CLAMP | KOBCLAMP Superseded by part number: 134718A1 |
| 16. | VAMH020260 | [1] | CLAMP | KOBCLAMP |
| 17. | VAMH021253 | [1] | CLAMP | KOBCLAMP |
| 18. | VAMF240029 | [2] | SCREW | KOBBOLT,W/WSR 6X25 |
