神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-007) - FUEL INJECTION NOZZLE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
937 次

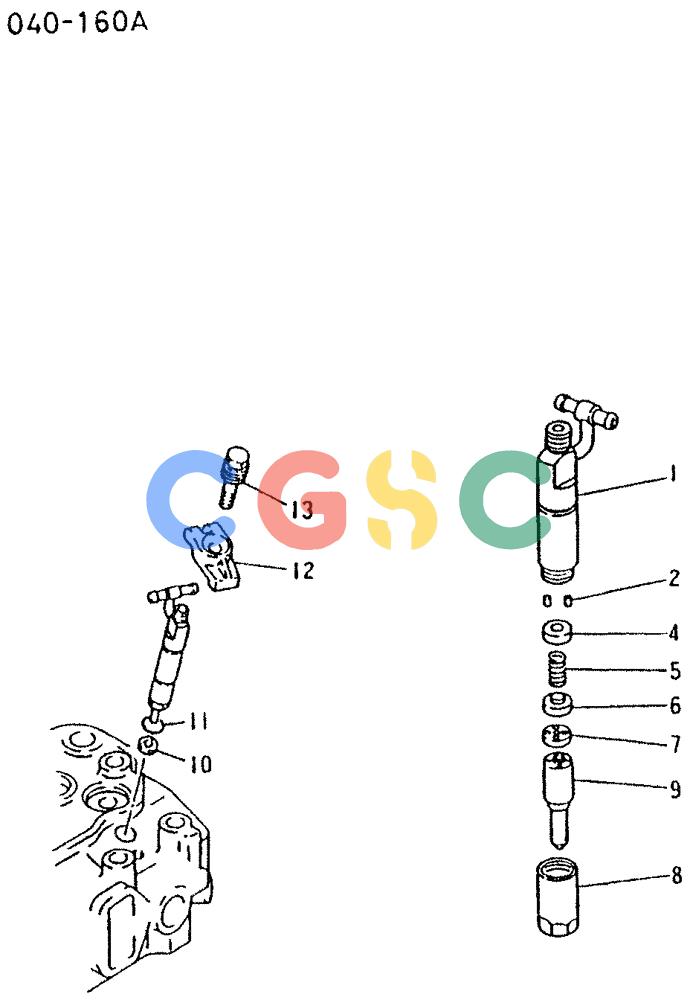

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VAME080082 | [6] | NOZZLE | KOBNOZZLE ASSY 180KG/CMZ |
| 1-8. | NSS | [6] | NOT SOLD SEPARAT | CONNOZZLE HOLDER ASSY |
| 1. | NSS | [6] | NOT SOLD SEPARAT | CONBODY,NOZZLE HOLDER |
| 2. | VAME705419 | [12] | PIN | KOBPIN |
| 4. | VAME722370 | [1] | SHIM | KOBSHIM, T=0.500 Superseded by part number: VA1505385700, 77270173 |
| 4. | VAME722371 | [1] | SHIM | KOBSHIM,T=0.525 Superseded by part number: VA1505915200 |
| 4. | VAME722372 | [1] | SHIM | KOBSHIM,T=0.550 Superseded by part number: VAME741426 |
| 4. | VAME722373 | [1] | SHIM | KOBSHIM,T=0.575 |
| 4. | VAME722374 | [1] | SHIM | KOBSHIM,T=0.600 Superseded by part number: VA1505916000 |
| 4. | VAME722406 | [1] | SHIM | KOBSHIM,T=1.400 |
| 4. | VAME722407 | [1] | SHIM | KOBSHIM,T=1.425 |
| 4. | VAME722408 | [1] | SHIM | KOBSHIM,T=1.150 |
| 4. | VAME722409 | [1] | SHIM | KOBSHIM,T=1.175 |
| 4. | VAME722410 | [1] | SHIM | KOBSHIM,T=1.500 Superseded by part number: VA1505925000 |
| 5. | VAME705421 | [1] | SPRING | KOBSPRING.NOZZLE |
| 6. | VAME705420 | [6] | SEAT | KOBSEAT,SPG |
| 7. | VAME705422 | [6] | SPACER | KOBSPACER |
| 8. | VAME705423 | [6] | NUT | KOBNUT,RETAINING |
| 9. | NSS | [6] | NOT SOLD SEPARAT | CONTIP,NOZZLE 5-0.3 |
| 10. | VAME016564 | [6] | GASKET | KOBGASKET,NOZZLE T=4.7 |
| 11. | VAMF520010 | [6] | O-RING | KOBO-RING 15 Superseded by part number: 132546A1 |
| 12. | VAME016543 | [6] | BRIDGE | KOBNOZZLE |
| 13. | VAMH000816 | [6] | BOLT | KOBBOLT,BRIDGE 10X52 |
