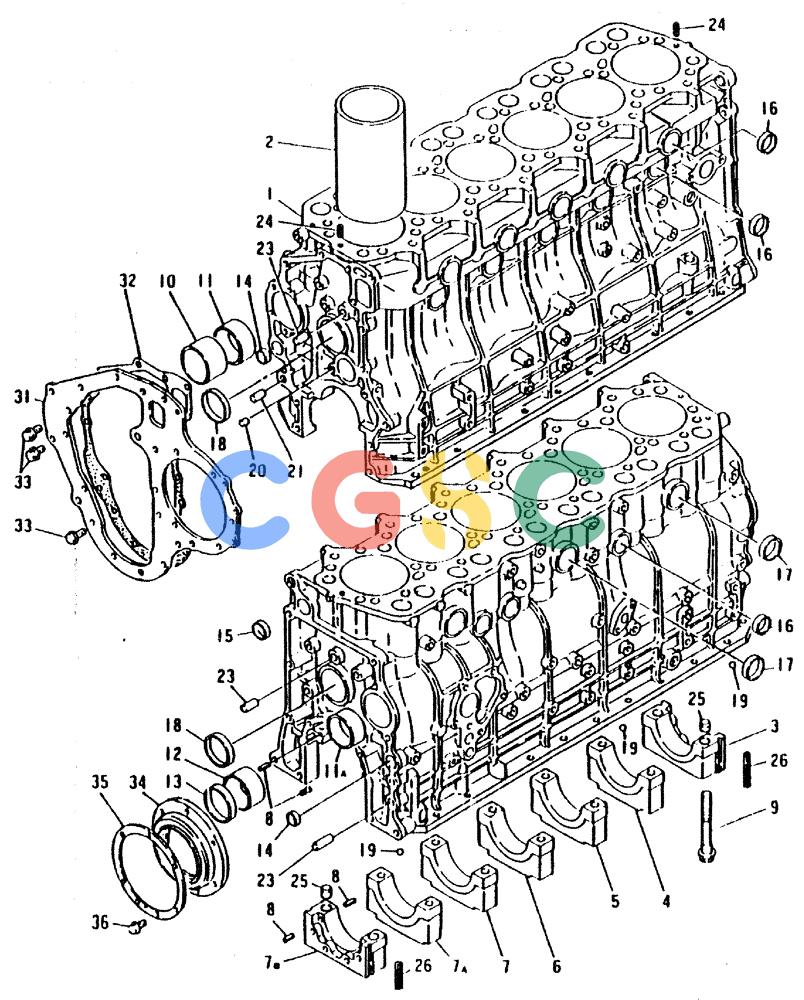

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-001) - CYLINDER BLOCK Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
889 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKCASE |
| 2. | VAME011626 | [6] | SLEEVE CYLINDER | KOB |
| . . | VAME011627 | [1] | SLEEVE CYLINDER | KOBOS 0.30 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 1 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 2 |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 3 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 4 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 5 |
| 7A. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 6 |
| 7B. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 7 |
| 8. | VAMH012041 | [6] | PIN | KOBPIN, SPG 4 X 10 |
| 9. | VAME011519 | [14] | SCREW | KOB14 X 102 |
| 10. | VAME029225 | [1] | BUSHING | KOBCAMSHAFT |
| 11. | VAME011593 | [1] | BUSHING | KOB |
| 11A. | VAME081526 | [1] | BEARING LINER | KOBSCREW NO. 3 |
| 12. | VAME011594 | [1] | BUSHING | KOB |
| 13. | VAMH037751 | [1] | CAP | KOBCAP, SEALING 57 |
| 14. | VAMS666136 | [2] | PLUG | KOBCAP, SEALING 22 |
| 15. | VAMS666138 | [1] | CAP | KOBCAP, SEALING 28 |
| 16. | VAMS666140 | [12] | PLUG | KOBCAP, SEALING 35 |
| 17. | VAMD000427 | [3] | PLUG | KOBCAP, SEALING 40 Superseded by part number: MD000427 |
| 18. | VAMH037754 | [2] | CAP | KOBCAP, SEALING 50 |
| 19. | VAMF540011 | [4] | BALL | KOBBALL, STEEL |
| 20. | VAME029046 | [1] | PLUG | KOBPLUG |
| 21. | VAMF472406 | [1] | PIN | KOBPIN, DOWEL 12, FOR FR |
| 23. | VAMH007010 | [3] | PIN | KOBPIN, DOWEL 12, FOR RE |
| 24. | VAMF472587 | [2] | PIN | KOBPIN, DOWEL 6X16 CYL HEAD |
| 25. | VAME011618 | [4] | PIN | KOBFOR BRG CAP |
| 26. | VAME021111 | [4] | SEAL | KOBSIDE Superseded by part number: VAME011660 |
| 31. | VAME011596 | [1] | PLATE | KOB |
| 32. | VAME011598 | [1] | GASKET | KOB Superseded by part number: VAME013221 |
| 33. | VAMF140223 | [4] | BOLT | KOBBOLT, FLANGE 8 X 16 |
| 34. | VAME011754 | [1] | OIL SEAL | KOB |
| 35. | VAME011707 | [1] | SWASH PLATE | KOB |
| 36. | VAMF140203 | [7] | BOLT | KOBBOLT, FLANGE 6 X 12 |
