神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-002) - CRANKSHAFT BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
161 次

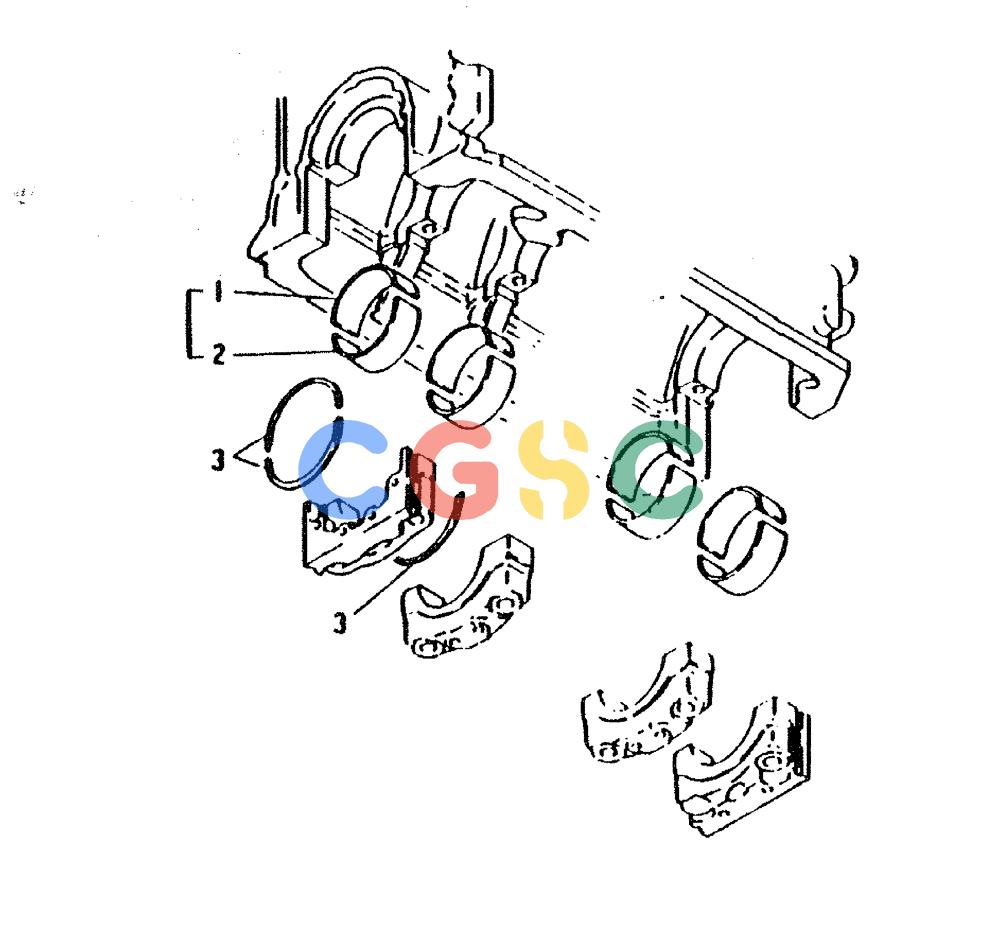

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME999711 | [1] | SET OF CONN ROD BRGS U/S | KOBONE MODEL |
| . . | VAME999712 | [1] | BEARING | KOBUS |
| . . | VAME999713 | [1] | BEARING | KOBUS |
| . . | VAME999714 | [1] | BEARING | KOBUS |
| . . | VAME999715 | [1] | BEARING | KOBUS |
| 1. | VAME011550 | [7] | BEARING, MAIN UPPER STD | |
| 2. | VAME011555 | [7] | BEARING, MAIN LOWER STD | |
| 3. | VAME020328 | [3] | THRUST PLATE | KOBSTD Superseded by part number: VAME013564 |
| . . | VAME020329 | [1] | THRUST PLATE O.S 0.1 0.15 | THRUST PLATE O.S 0.1 0.15 |
| . . | VAME020330 | [1] | PLATE THRUST O.S. 0.30 | PLATE THRUST O.S. 0.30 |
| . . | VAME020331 | [1] | METAL 045 | METAL 045 |
