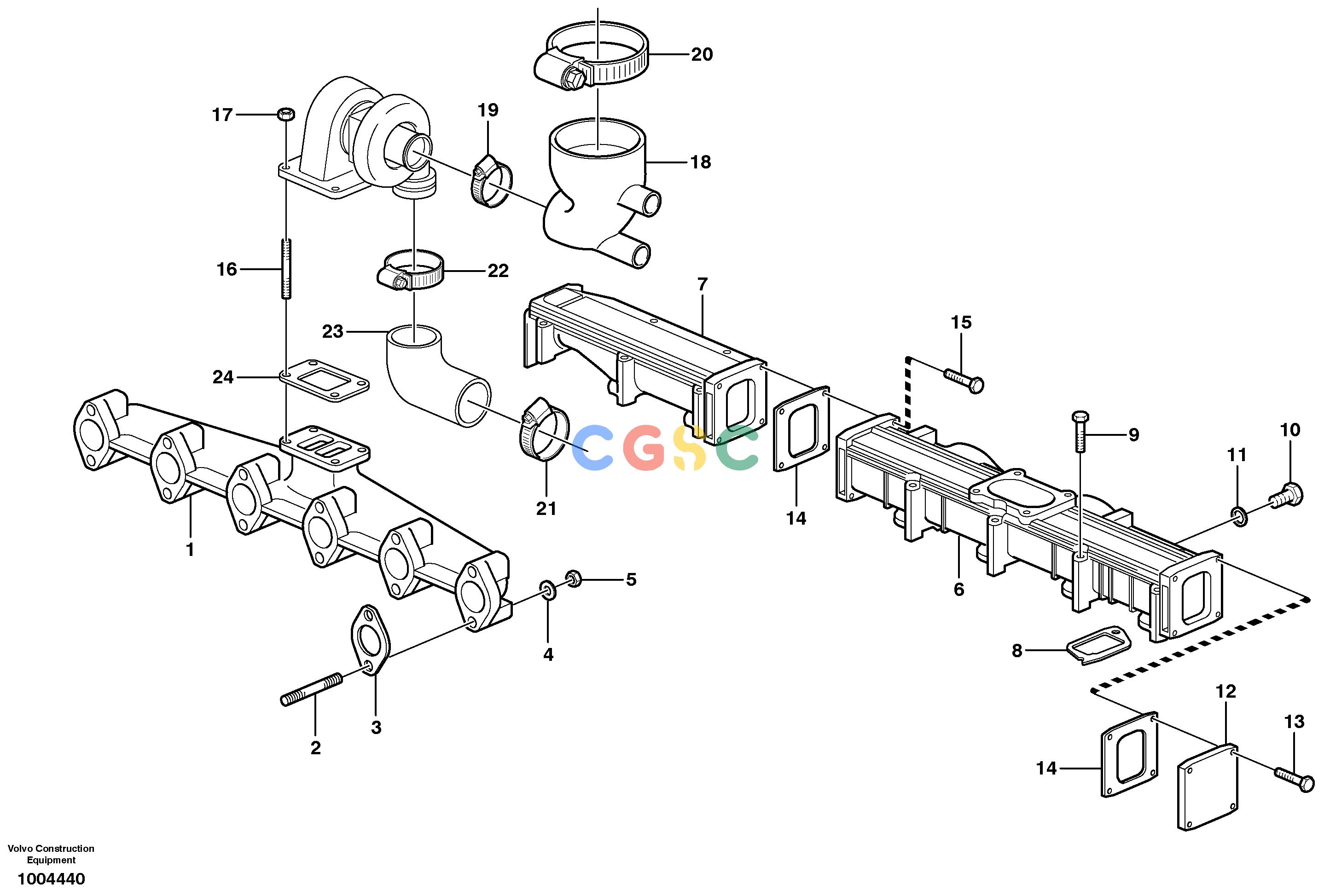

沃尔沃零件查询EC290B Inlet manifold and exhaust manifoldNone8278459 S/N -10972-8278906 S/N 10973-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
797 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE22369459
|
[1] |
Exhaust Pipe
|
|
| 2. |
VOE20405587
|
[12] |
Stud
|
|
| 3. |
VOE20557208
|
[6] |
Gasket
|
|
| 4. |
VOE20799731
|
[12] |
Washer
|
|
| 5. |
VOE20505959
|
[12] |
Hexagon nut
|
|
| 6. |
VOE20586854
|
[1] |
Charge Air Pipe
|
ENG - 968446
|
| |
VOE20592831
|
[1] |
Charge Air Pipe
|
ENG 968447 -
|
| 7. |
VOE20723987
|
[1] |
Charge air pipe
|
ENG - 944465
|
| |
VOE20723987
|
|
Charge air pipe
|
ENG - 943853
|
| |
VOE20723987
|
|
Charge air pipe
|
ENG 944466 -
|
| |
VOE20723987
|
|
Charge air pipe
|
ENG 943854 -
|
| 8. |
VOE21815267
|
[6] |
Gasket
|
|
| 9. |
VOE22278501
|
[12] |
Hexagon screw
|
|
| 10. |
VOE20451012
|
[1] |
Screw
|
|
| 11. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 12. |
VOE20405614
|
[1] |
Cover
|
|
| 13. |
VOE997421
|
[4] |
Hexagon screw
|
|
| 14. |
VOE20405613
|
[2] |
Gasket
|
|
| 15. |
VOE20412340
|
[4] |
Screw
|
|
| 16. |
VOE20412314
|
[4] |
Stud
|
|
| 17. |
VOE20412308
|
[4] |
Hexagon nut
|
|
| 18. |
VOE20450765
|
[1] |
Manifold
|
14500386 ENG - 815867
|
| |
VOE20499597
|
[1] |
Manifold
|
14500386 ENG 815868 -
14519199, 14519200
|
| 19. |
VOE943482
|
[1] |
Hose clamp
|
|
| 20. |
VOE20450715
|
[1] |
Hose clamp
|
|
| 21. |
VOE943482
|
[1] |
Hose clamp
|
|
| 22. |
VOE943483
|
[1] |
Hose clamp
|
14500386 ENG - 815867
14519199 ENG - 815274
|
| |
VOE20768688
|
[1] |
Hose clamp
|
14500386 ENG 815868 -
14519199 ENG 815275 -
|
| 23. |
VOE20450714
|
[1] |
Elbow
|
|
| 24. |
|
[1] |
Gasket
|
|
