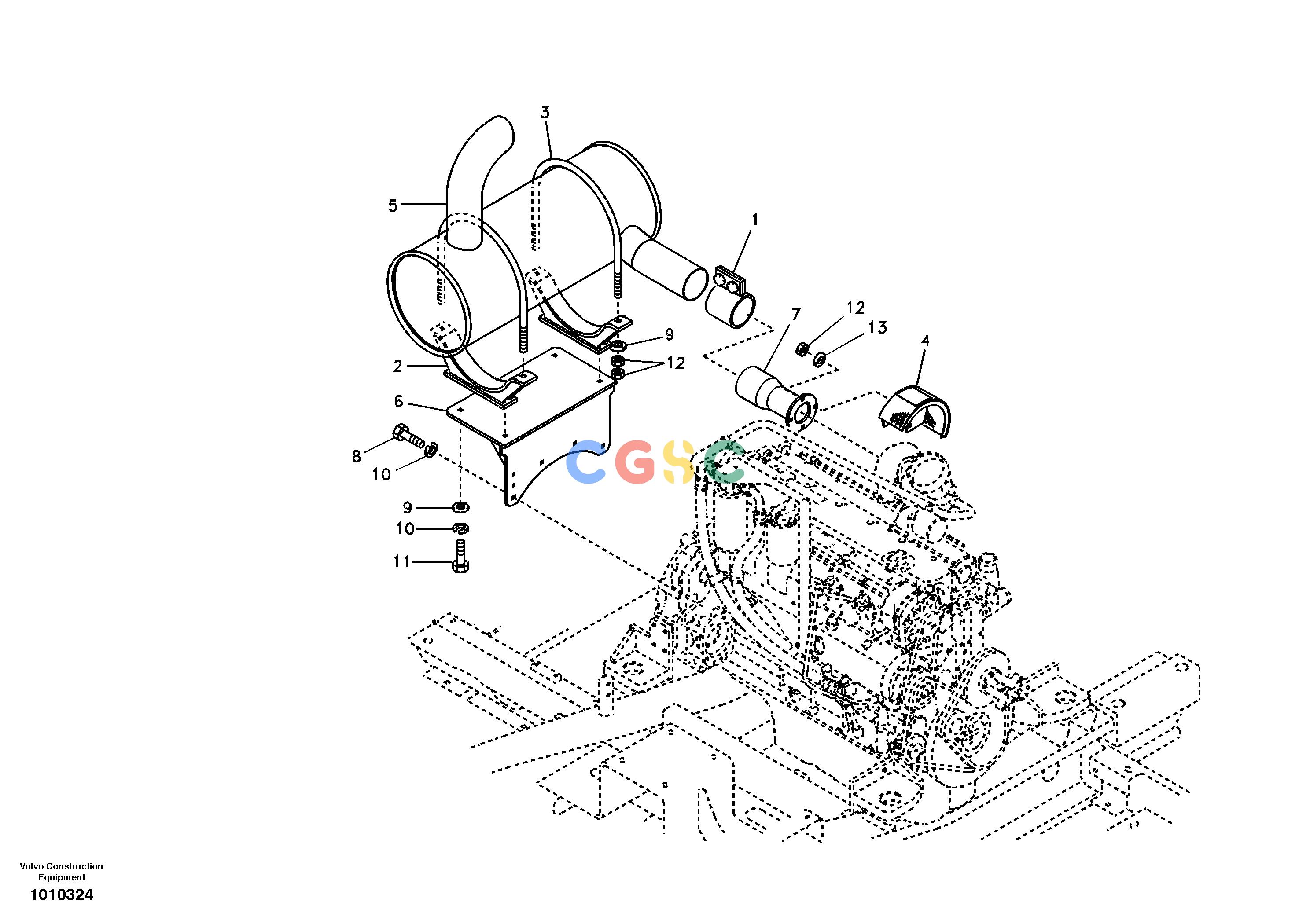

沃尔沃零件查询EC290B Exhaust systemNone8277459-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
232 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14528383
|
[1] |
Clamp
|
|
| 2. |
SA1114-00610
|
[2] |
Bracket
|
SER NO 10001-10588
|
| |
VOE14519157
|
[2] |
Bracket
|
SER NO 10589-
SER NO 30001-
|
| 3. |
VOE14528385
|
[2] |
U-bolt
|
|
| 4. |
VOE14501323
|
[1] |
Protecting screen
|
|
| 5. |
VOE14515761
|
[1] |
Silencer
|
|
| 6. |
VOE14501334
|
[1] |
Bracket
|
SER NO 10001-10588
|
| |
VOE14519946
|
[1] |
Bracket
|
SER NO 10589-
SER NO 30001-
|
| 7. |
VOE14501335
|
[1] |
Tube
|
|
| 8. |
VOE992564
|
[4] |
Hexagon screw
|
|
| 9. |
VOE992040
|
[4] |
Plain washer
|
SER NO 10001-10588
|
| |
VOE992040
|
[8] |
Plain washer
|
SER NO 10589-
SER NO 30001-
|
| 10. |
VOE955922
|
[8] |
Spring washer
|
|
| 11. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 12. |
VOE983304
|
[8] |
Hexagon nut
|
SER NO 10001-11511
|
| |
VOE983304
|
[12] |
Hexagon nut
|
SER NO 11512-
|
| 13. |
VOE960148
|
[3] |
Plain washer
|
SER NO 11512-
|
