神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-004) - FLYWHEEL HOUSING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1019 次

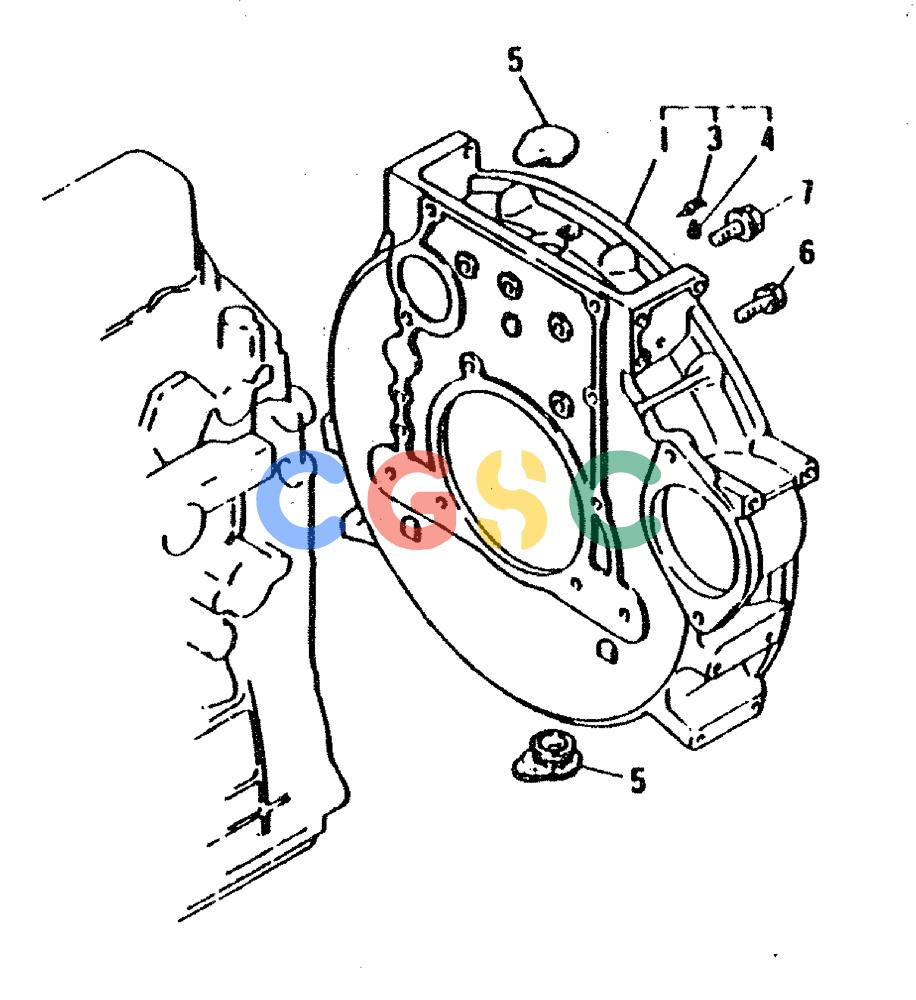

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME088183 | [1] | FLYWHEEL HOUSING ASSY, FOR M5 ONLY | |
| . . | VAME088253 | [1] | M16, FOR M6 ONLY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING, F/W |
| 3. | VAME031063 | [1] | CONTROL POINTER | CONTROL POINTER |
| 4. | VAMF200049 | [1] | SCREW | KOBMACHINE 5 X 8 |
| 5. | VAME020359 | [2] | PLUG | KOBDUST Superseded by part number: VAME609555 |
| 6. | VAMF300845 | [12] | BOLT | KOBW/WSR 10 X 30 |
| 7. | VAMH000727 | [2] | BOLT | KOBFLANGE 12 X 30 |
