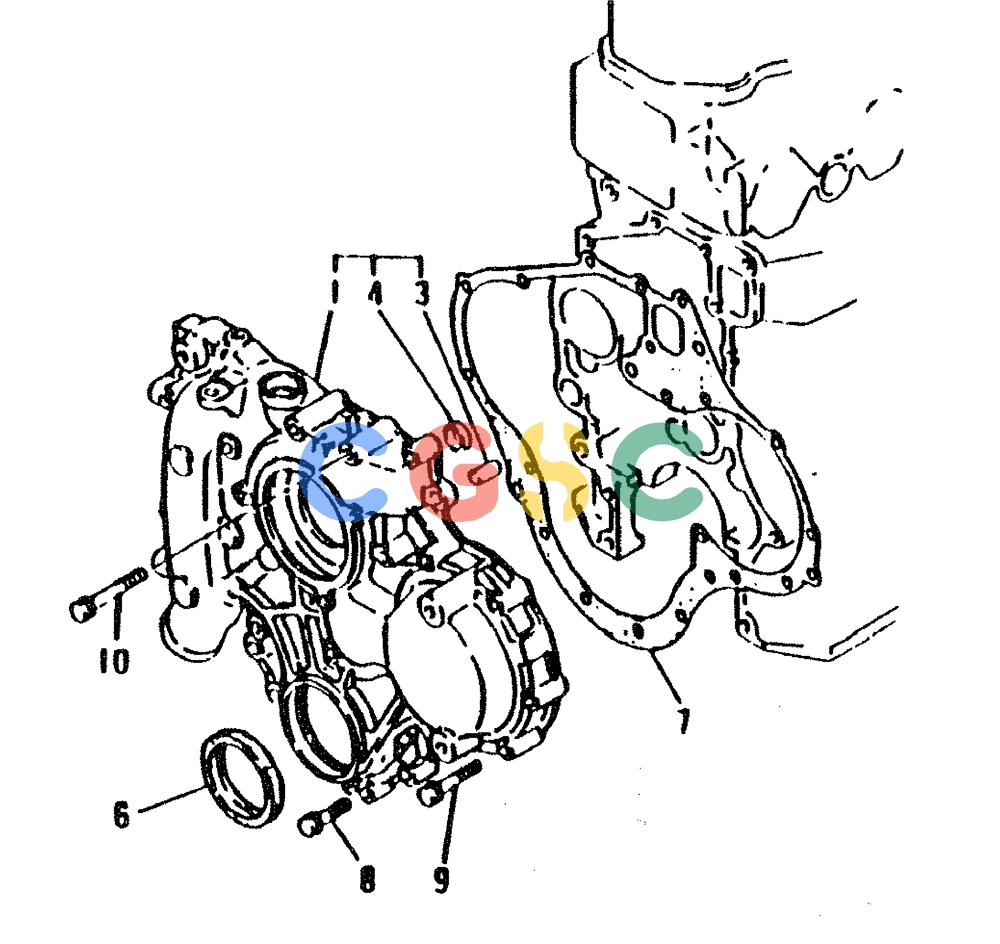

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-005) - TIMING GEAR CASE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
382 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME081555 | [1] | TIMING GEAR CASE ASSY | |
| 1. | VAME011655 | [1] | CASE | KOB Superseded by part number: VAME013244 |
| 3. | VAMF472406 | [1] | PIN | KOBDOWEL 12 |
| 4. | VAMS666136 | [1] | PLUG | KOBCAP, SEARING 22 |
| 6. | VAME024156 | [1] | OIL SEAL | KOBFRONT |
| 7. | VAME011770 | [1] | GASKET | KOBGEAR CASE Superseded by part number: VAME220852 |
| 8. | VAMF140233 | [9] | BOLT | KOBFLANGE 8 X 40 |
| 9. | VAMF140235 | [6] | BOLT | KOBFLANGE 8 X 50 |
| 10. | VAMF140239 | [2] | BOLT,FLANGE 8 X 70 | BOLT,FLANGE 8 X 70 |
