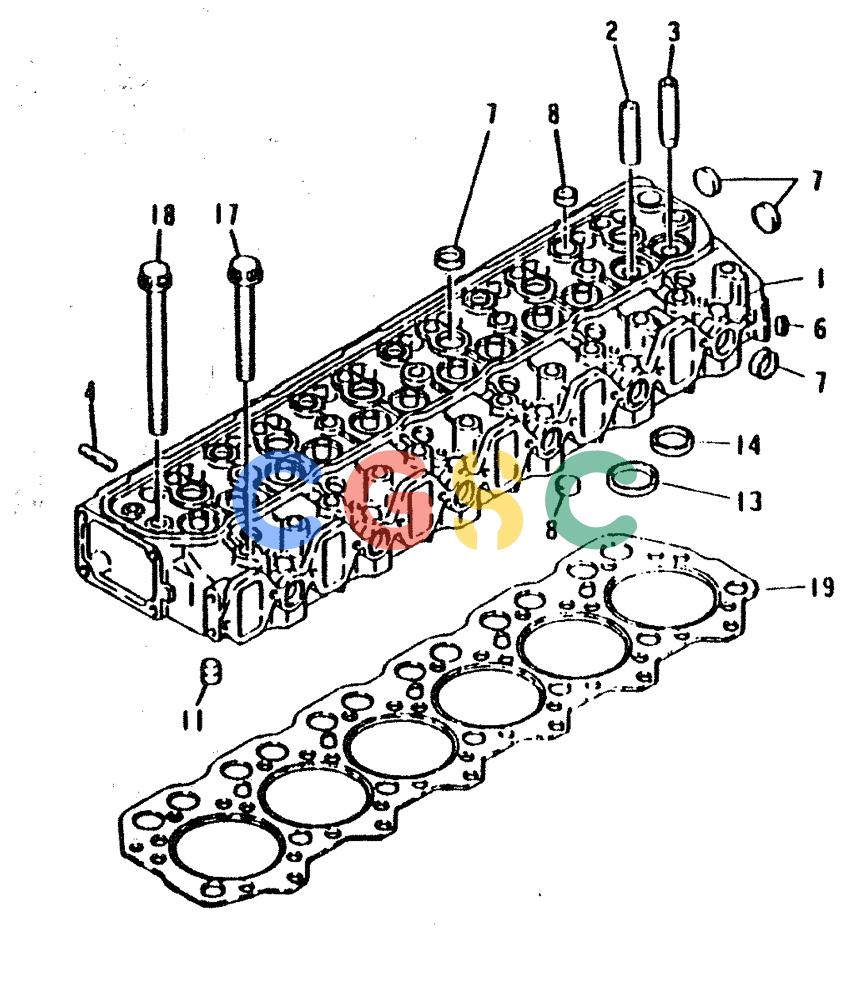

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-006) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
622 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD, CYL |
| 2. | VAME031886 | [6] | GUIDE | KOB |
| 3. | VAME031888 | [6] | GUIDE | KOBVALVE |
| 4. | VAMF407006 | [12] | SCREW | KOBSTUD, EXH MANIF 10 X 25 |
| 6. | VAMS666132 | [6] | CAP | KOBSEALING 14 |
| 7. | VAMS666138 | [14] | CAP | KOBSEALING 28 |
| 8. | VAMS666136 | [1] | PLUG | KOBCAP, SEALING 22 |
| 11. | VAME011012 | [1] | GUIDE | KOB |
| 13. | VAME011058 | [6] | SEAT, VALVE | KOBVALVE SEAT INLET Superseded by part number: VAME013297 |
| . . | VAME011057 | [1] | INSERT | KOBSEMI-SIZE |
| 14. | VAME029004 | [6] | SEAT | KOBVALVE SEAT EXH Superseded by part number: VAME013188 |
| . . | VAME029005 | [1] | INSERT SEMI-SIZE | INSERT SEMI-SIZE |
| 17. | VAME011015 | [18] | SCREW | KOBCYL HEAD 14 X 122 |
| 18. | VAME011016 | [7] | BOLT | KOBCYL HEAD 14 X 180 |
| 19. | VAME081541 | [1] | CYLINDER HEAD GASKET | KOB |
