神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-008) - PISTON Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
543 次

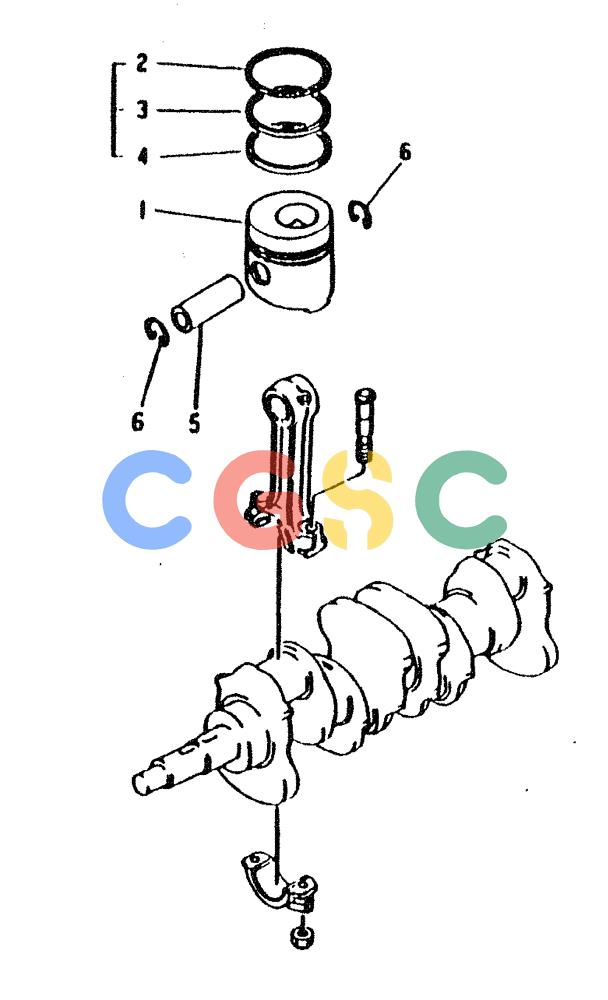

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME012810 | [6] | PISTON | KOBPISTON STD |
| . . | VAME012811 | [1] | PISTON 0.25 OS | PISTON 0.25 OS |
| . . | VAME012812 | [1] | OS 0.50 | |
| . . | VAME012813 | [1] | PISTON | KOBOS 0.75 |
| . . | VAME012814 | [1] | OS 1.00 | |
| 2-4. | VAME999717 | [1] | SET OF RINGS | KOBPISTON ONE MODEL STD |
| . . | VAME999719 | [1] | SET OF RINGS | KOBOS |
| . . | VAME999721 | [1] | OS 0.50 | |
| . . | VAME999723 | [1] | SET OF RINGS | KOBOS |
| . . | VAME999725 | [1] | OS 1.00 | |
| 2. | VAME012011 | [6] | RING, COMPRESSION NO. 1 STD | |
| 3. | VAME012021 | [6] | RING, COMPRESSION NO. 2 STD | |
| 4. | VAME012150 | [6] | RING,OIL STD | |
| 5. | VAME012009 | [6] | PISTON PIN | KOB |
| 6. | VAME012061 | [12] | SNAP RING | KOB Superseded by part number: VAME015917 |
