神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-009) - CONNECTING ROD AND BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
523 次

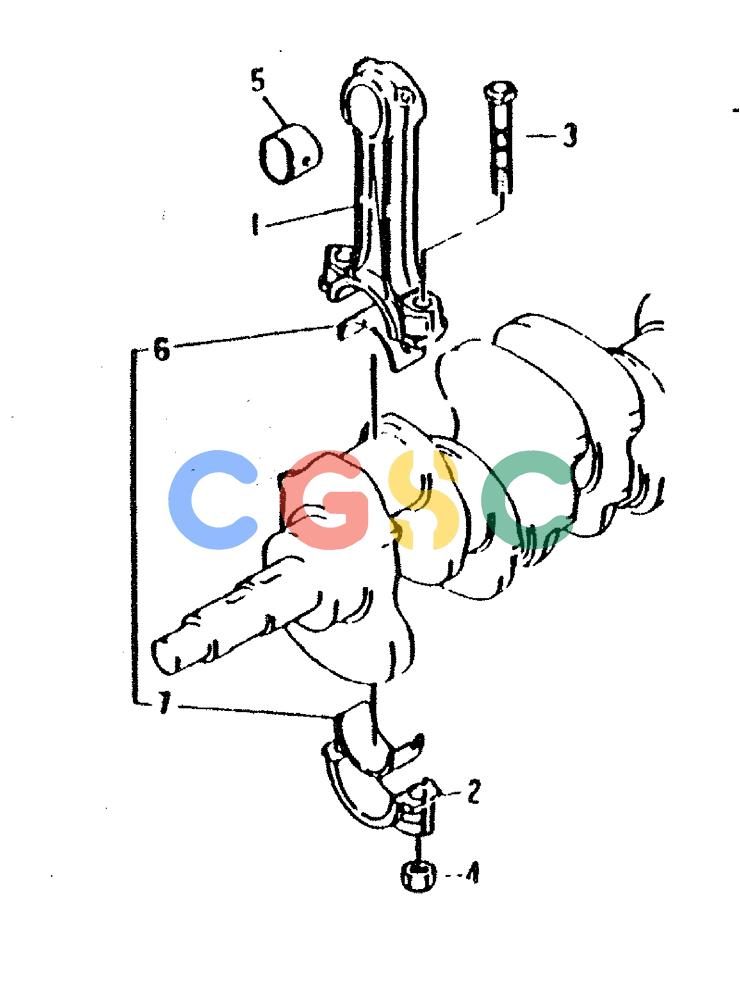

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VAME012265 | [6] | CONN. ROD SHELL | KOB |
| 1. | NSS | [6] | NOT SOLD SEPARAT | CONROD, CONNECTING |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONCAP, CONN-ROD |
| 3. | VAME012232 | [12] | SPECIAL BOLT | KOB |
| 4. | VAME023570 | [12] | NUT | KOB |
| 5. | VAME012234 | [6] | BUSHING | KOB |
| 6-7. | VAME999726 | [1] | BEARING SET | KOBONE MODEL STD Superseded by part number: VAME995170 |
| . . | VAME999727 | [1] | BEARING SET | KOBUS Superseded by part number: VAME995171 |
| . . | VAME999728 | [1] | BEARING SET | KOBUS Superseded by part number: VAME995172 |
| . . | VAME999729 | [1] | BEARING SET | KOBUS 0.75 Superseded by part number: VAME995173 |
| . . | VAME999730 | [1] | BEARING SET | KOBUS 1.00 Superseded by part number: VAME995174 |
| 6. | VAME012259 | [6] | BEARING, CONN-ROD UPPER STD | |
| 7. | VAME012210 | [6] | METAL STD BEARING, CONN-ROD LOWER STD | METAL STD BEARING, CONN-ROD LOWER STD |
