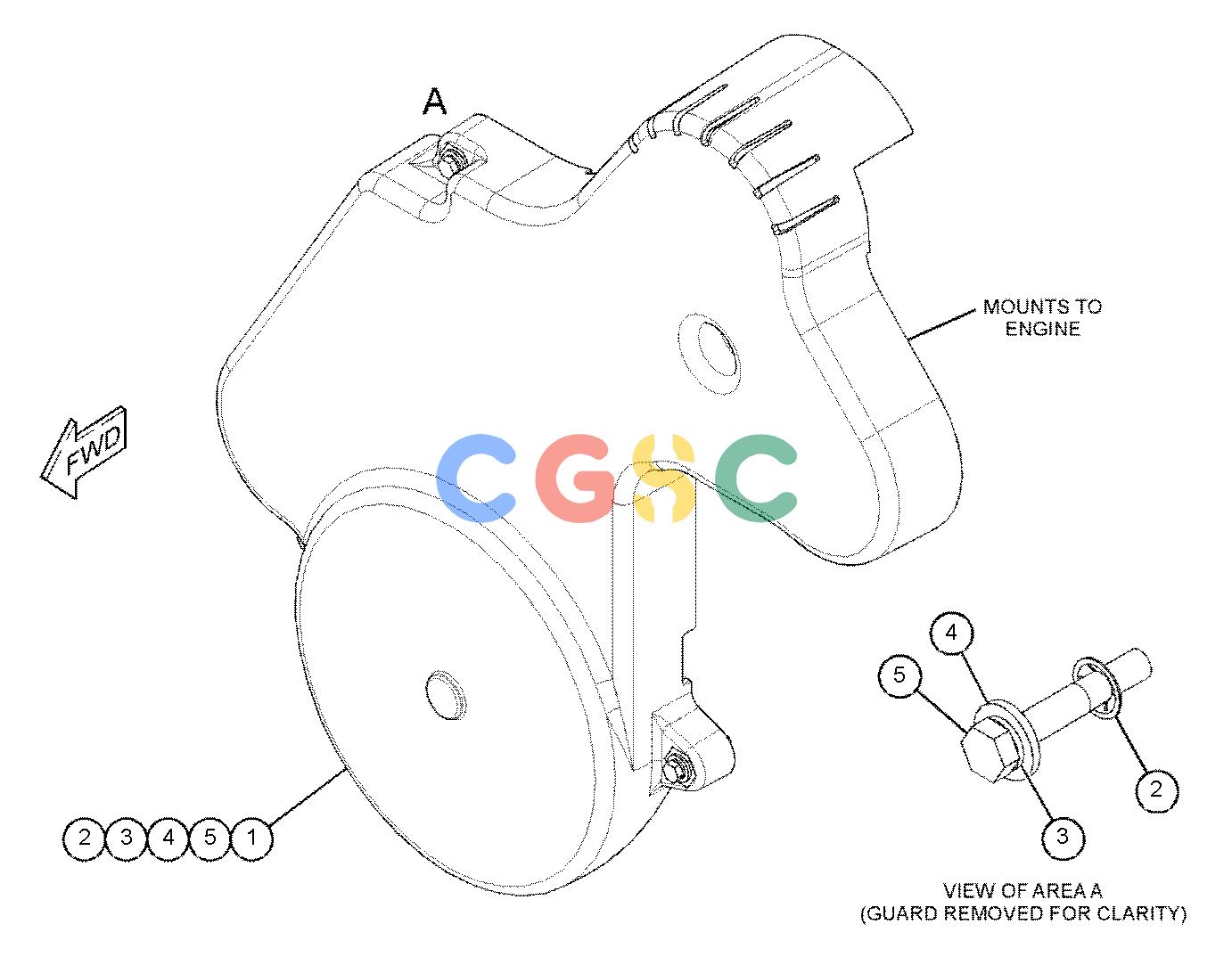

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 391-5981 | [1] | GUARD-BELT | |
| 2. | 6P-6256 | [4] | RETAINER-SPRING | |
| 3. | 7X-0796 | [4] | LOCKWASHER(10.2X18.4X2.5-MM THK) | |
| 4. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 5. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| M | METRIC PART | |||
广数供应链运营团队, 14 02月, 2025，浏览： 903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 391-5981 | [1] | GUARD-BELT | |
| 2. | 6P-6256 | [4] | RETAINER-SPRING | |
| 3. | 7X-0796 | [4] | LOCKWASHER(10.2X18.4X2.5-MM THK) | |
| 4. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 5. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| M | METRIC PART | |||
