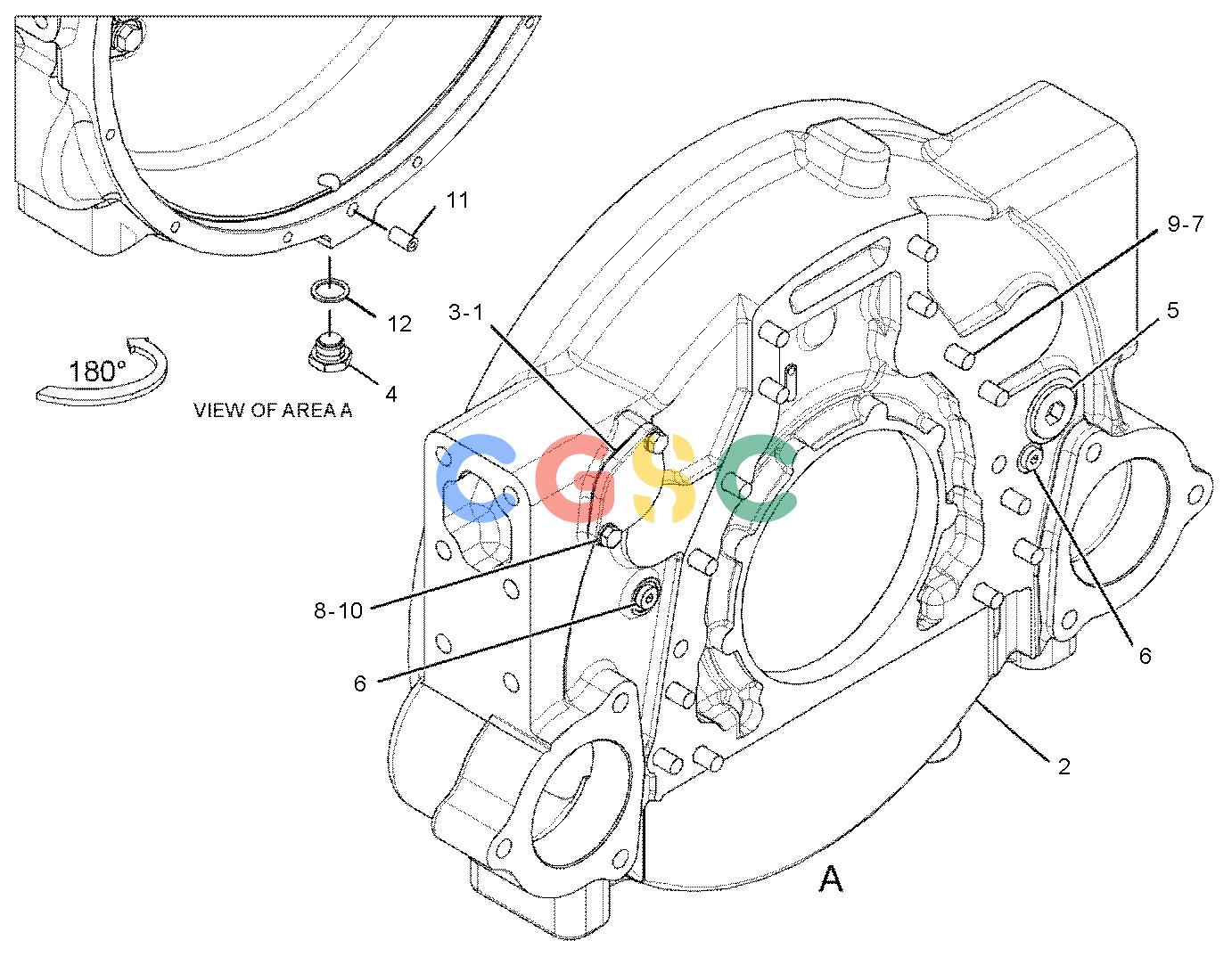

卡特零件查询（725C） 344-2902: HOUSING GP-FLYWHEEL
广数供应链运营团队, 14 02月, 2025，浏览：
389 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-1445 | [1] | COVER | |
| 2. | 422-0186 | [1] | HOUSING-FLYWHEEL | |
| 3. | 061-9455 | [1] | SEAL-O-RING | |
| 4. | 6V-1176 | [1] | PLUG-DRAIN(MAGNETIC) | |
| 5. | 389-3728 | [1] | PLUG AS | |
| | 238-5084 | [1] | SEAL-O-RING | |
| | 360-3684 | [1] | PLUG | |
| 6. | 371-7186 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 214-7567 | [1] | SEAL-O-RING | |
| | 360-3678 | [1] | PLUG-O-RING | |
| 7. | 5P-8245 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 6V-5219M | [2] | BOLT(M8X1.25X40-MM) | |
| 9. | 6V-8197M | [14] | BOLT(M12X1.75X40-MM) | |
| 10. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 106-1565 | [1] | PLUG | |
| 12. | 3B-1925 | [1] | WASHER(0.766X1X0.064-IN THK) | |
| | | | |
| | 1U-8846BF | | SEALANT-GASKET | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
