神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-013) - TIMING GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
708 次

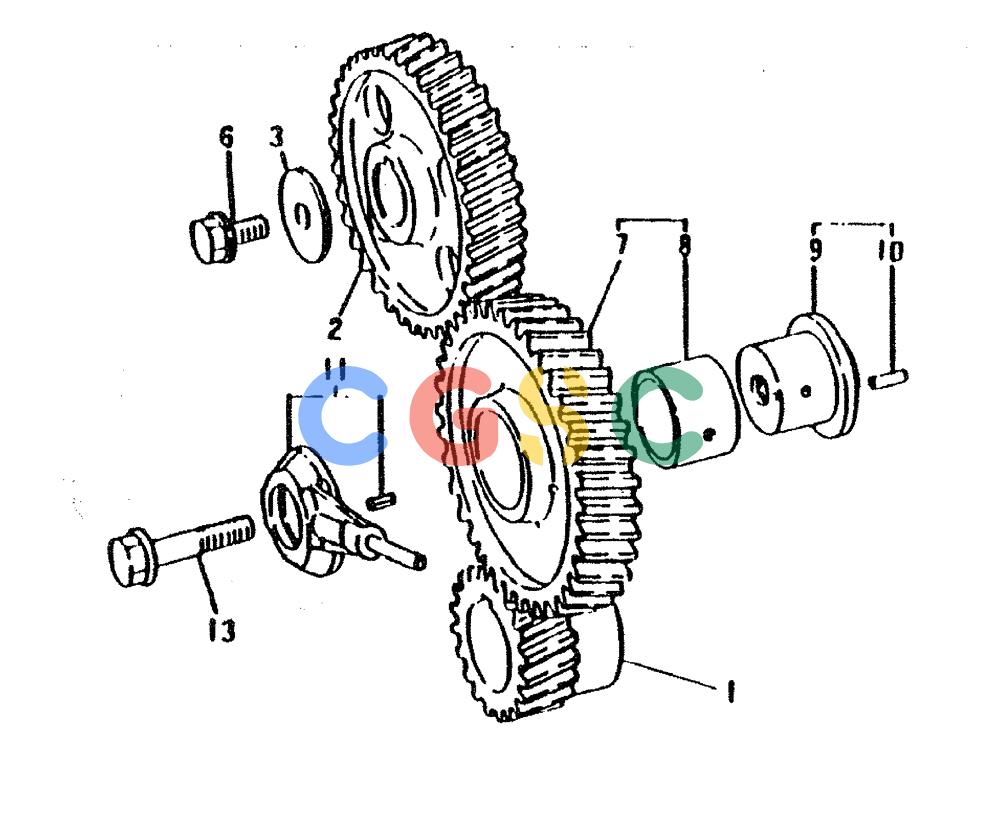

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME012729 | [1] | GEAR | KOBZ=20 |
| 2. | VAME012732 | [1] | DRIVEN GEAR | KOBZ=40 |
| 3. | VAMH005020 | [1] | PLATE | KOBWASHER 44 |
| 6. | VAMF140458 | [1] | BOLT | KOB18 X 20 |
| 7-8. | VAME082515 | [1] | GEAR ASSY,IDLER | GEAR ASSY,IDLER |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, IDLER Z=41 |
| 8. | VAME082517 | [1] | BUSHING | KOB |
| 9-10. | VAME082520 | [1] | IDLER | KOB |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT, IDLER |
| 10. | VAMF472567 | [2] | PIN, SPG 5 X 12 | |
| 11. | VAME012747 | [2] | JET | KOB |
| 13. | VAMH001411 | [1] | SCREW | KOB10 X 68 |
