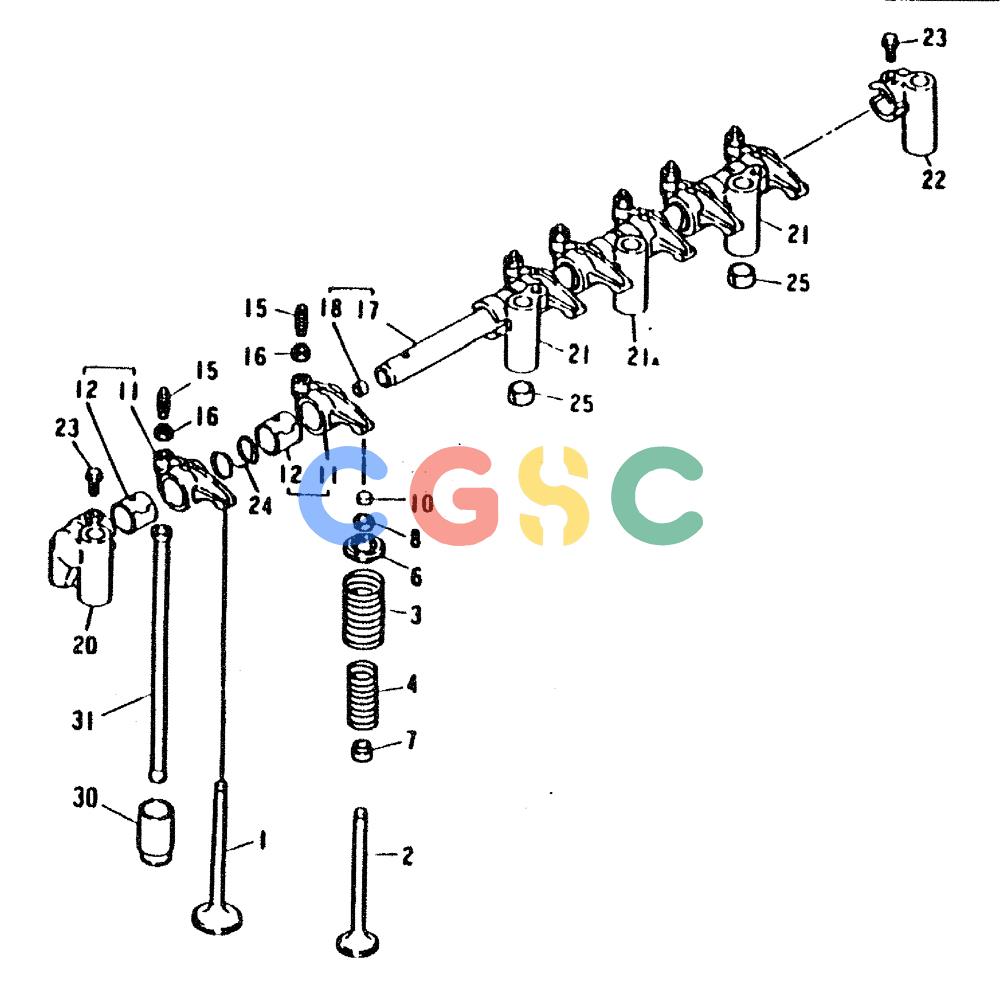

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-014) - VALVE GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
562 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME011265 | [6] | VALVE | KOB Superseded by part number: VAME013810 |
| 2. | VAME011266 | [6] | VALVE | KOB Superseded by part number: VAME013832 |
| 3. | VAME029101 | [12] | VALVE SPRING | KOB |
| 4. | VAME029102 | [12] | VALVE SPRING | KOB |
| 6. | VAME011268 | [12] | RETAINER | KOB |
| 7. | VAME024108 | [12] | STEM SEAL | STEM SEAL |
| 8. | VAME011227 | [24] | VALVE | KOB |
| 10. | VAME020244 | [12] | CAP | KOBVALVE Superseded by part number: VAME017459 |
| 11-12. | VAME011252 | [12] | ROCKER | KOB |
| 11. | NSS | [12] | NOT SOLD SEPARAT | CONROCKER |
| 12. | VAME011254 | [12] | BUSHING | KOB |
| 15. | VAMH001002 | [12] | SCREW | KOBADJUSTING 8 X 32 Superseded by part number: VAME220221 |
| 16. | VAMF430841 | [12] | NUT | KOB8 |
| 17-18. | VAME081513 | [1] | ROCKER ARM | KOBROCKER SHAFT ASSY |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT, ROCKER |
| 18. | VAMF665532 | [2] | CAP, SEALING 12 | |
| 20. | VAME011257 | [1] | BRACKET | KOBROCKER SHAFT FR |
| 21. | VAME011258 | [3] | BRACKET | KOB1, 2, 4, 6 |
| 21A. | VAME011259 | [2] | BRACKET | KOB3, 5 |
| 22. | VAME011260 | [1] | BRACKET | KOBROCKER SHAFT, RE |
| 23. | VAMF140003 | [2] | BOLT | KOBFLANGE 6 X 12 |
| 24. | VAME011261 | [6] | SPRING | KOBROCKER SHAFT |
| 25. | VAMH007012 | [3] | PIN | KOBSPG 17 X 10 |
| 30. | VAME011249 | [12] | TAPPET | KOB Superseded by part number: VAME013857 |
| 31. | VAME011267 | [12] | PUSH ROD | KOB Superseded by part number: VAME012991 |
