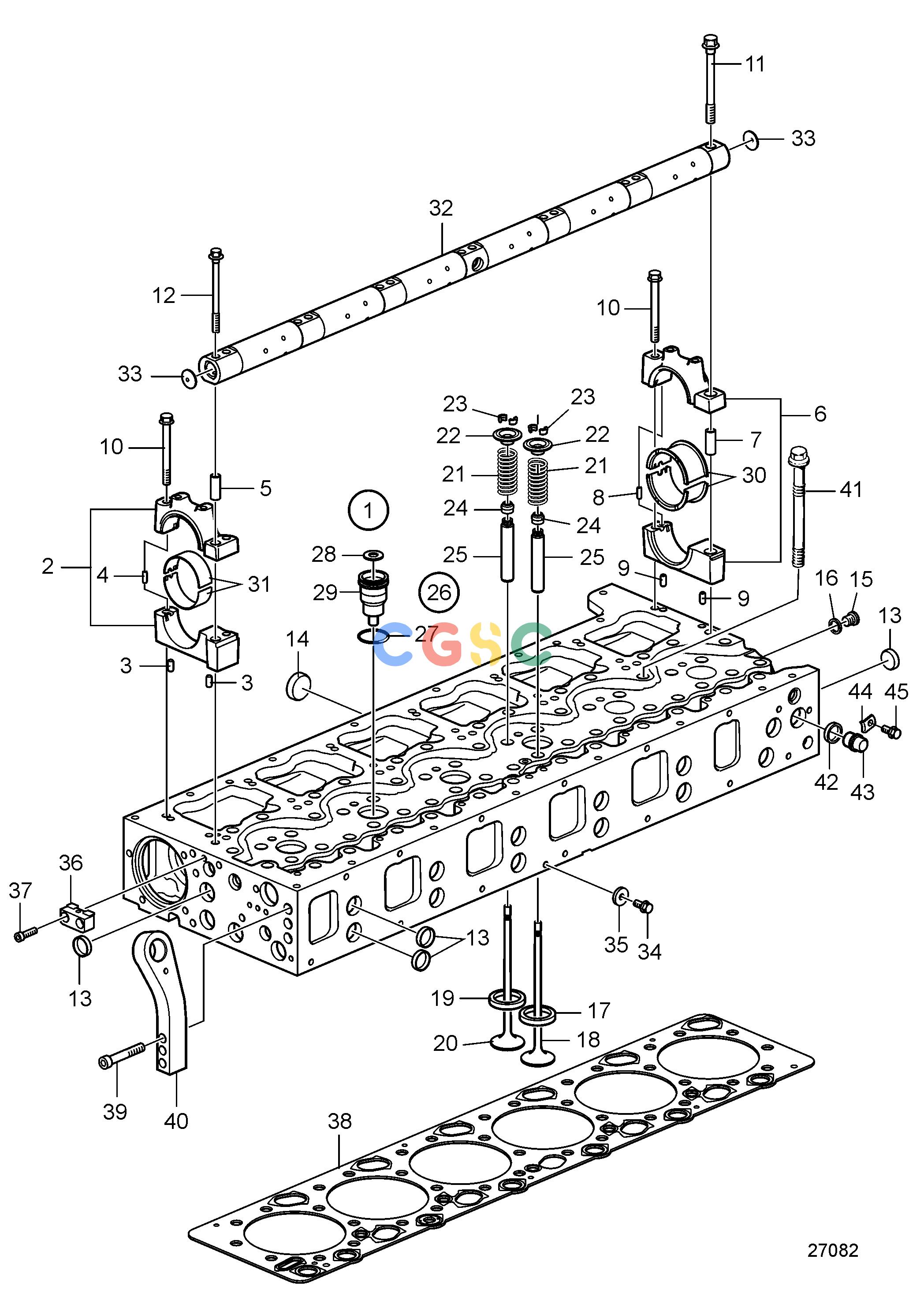

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
402 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801375
|
[1] |
Cylinder head
|
SN-013429362
|
| 1. |
21397405
|
[1] |
Cylinder head kit
|
SN-013429362
|
| 1. |
3801649
|
[1] |
Cylinder head, exch
|
SN 013429363-
|
| 1. |
22414809
|
[1] |
Cylinder head kit
|
SN 013429363-
|
| 2. |
20825398
|
[5] |
Bearing housing, front
|
Bearing housing 2-5
|
| 2. |
20813823
|
[1] |
Bearing housing, front
|
|
| 3. |
950562
|
[2] |
Pin
|
|
| 4. |
950542
|
[1] |
Pin
|
|
| 5. |
1636468
|
[1] |
Pin
|
|
| 6. |
20907267
|
[1] |
Bearing housing, rear
|
|
| 7. |
1636468
|
[1] |
Pin
|
|
| 8. |
950542
|
[1] |
Pin
|
|
| 9. |
950562
|
[2] |
Pin
|
|
| 10. |
975105
|
[7] |
Flange screw
|
M10x100mm
|
| 11. |
20412482
|
[1] |
Flange screw
|
M14x100mm
|
| 12. |
20537512
|
[12] |
Flange screw
|
M10x120mm
|
| 13. |
24426721
|
[20] |
Expansion plug
|
D=20mm
|
| 14. |
24426722
|
[5] |
Expansion plug
|
D=40mm
|
| 15. |
966143
|
[1] |
Plug
|
|
| 16. |
11996
|
[1] |
Gasket
|
|
| 17. |
20530103
|
[12] |
Valve seat
|
|
| 17. |
20541405
|
[12] |
Valve seat, exhaust
|
Replaced by 20530103
|
| 18. |
20768519
|
[12] |
Exhaust valve
|
|
| 19. |
20740804
|
[12] |
Valve seat, intake
|
|
| 20. |
20740798
|
[12] |
Inlet valve
|
|
| 21. |
21310068
|
[24] |
Valve spring
|
|
| 22. |
20510743
|
[24] |
Valve spring washer
|
|
| 23. |
20510747
|
[48] |
Valve cotter
|
|
| 24. |
21990221
|
[24] |
Valve stem seal
|
|
| 25. |
20904074
|
[24] |
Valve guide
|
Replaced by 20919484
|
| 25. |
20919484
|
[24] |
Valve guide
|
|
| 26. |
21274700
|
[6] |
Injector sleeve
|
|
| 27. |
20536487
|
[1] |
O-ring
|
|
| 28. |
21261987
|
[1] |
Washer
|
|
| 29. |
|
|
|
|
| 30. |
20756108
|
[1] |
Camshaft bearing kit
|
Replaced by 21006109
|
| 30. |
85131446
|
[1] |
Camshaft bearing kit
|
SN-2013658493
|
| 30. |
22879257
|
[1] |
Camshaft bearing kit
|
SN2013658494-
|
| 31. |
20999623
|
[6] |
Camshaft bearing kit
|
SN-2013658493
|
| 31. |
22879256
|
[6] |
Camshaft bearing kit
|
SN2013658494-
|
| 32. |
20510623
|
[1] |
Rocker arm shaft
|
Replaced by 21534995
|
| 32. |
21534995
|
[1] |
Rocker arm shaft
|
Replaced by 22224709
|
| 32. |
22224709
|
[1] |
Rocker arm shaft
|
|
| 33. |
955096
|
[2] |
Expansion plug
|
|
| 34. |
944926
|
[1] |
Flange screw
|
|
| 35. |
945583
|
[1] |
Washer
|
|
| 36. |
20559837
|
[1] |
Bracket
|
|
| 37. |
959220
|
[2] |
Hex. socket screw
|
|
| 38. |
20513037
|
[1] |
Cylinder head gasket
|
Replaced by 21313537
|
| 38. |
21313537
|
[1] |
Cylinder head gasket
|
Replaced by 21510072
|
| 38. |
21510072
|
[1] |
Cylinder head gasket
|
|
| 39. |
977282
|
[3] |
Hex. socket screw
|
|
| 40. |
|
|
|
|
| 41. |
21345131
|
[38] |
Flange screw
|
|
| 42. |
1547252
|
[1] |
Sealing ring
|
|
| 43. |
20845995
|
[1] |
Plug
|
|
| 44. |
1546531
|
[1] |
Lock brace
|
|
| 45. |
984732
|
[1] |
Flange screw
|
|
