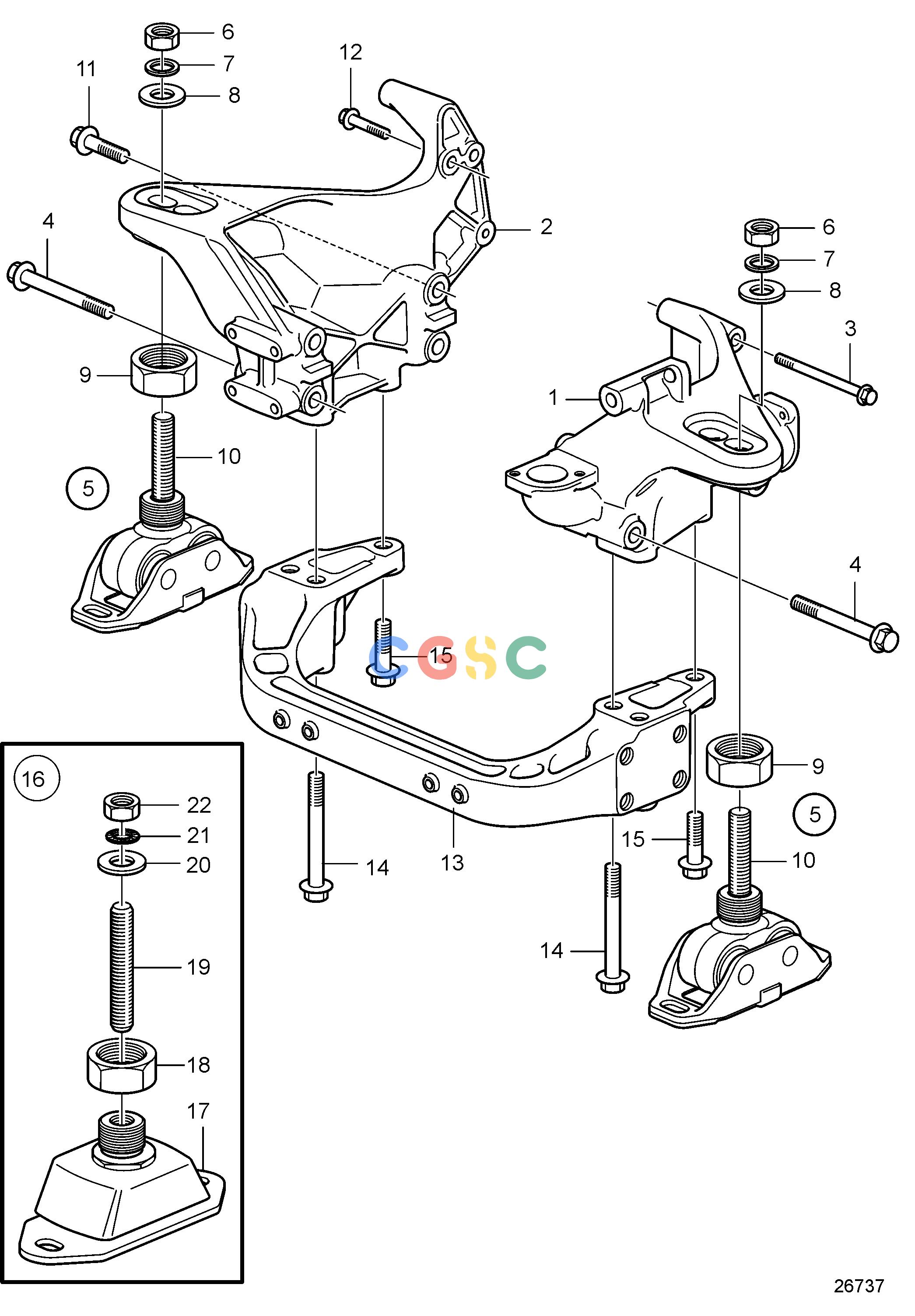

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHEngineEngine Suspension FrontEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
218 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21256248
|
[1] |
Engine bracket
|
|
| 2. |
3889644
|
[1] |
Engine bracket
|
|
| 3. |
984763
|
[1] |
Flange screw
|
|
| 4. |
968902
|
[6] |
Flange screw
|
|
| 5. |
3843493
|
[2] |
Rubber cushion kit
|
|
| 6. |
955786
|
[1] |
Hexagon nut
|
|
| 7. |
990697
|
[1] |
Lock washer
|
|
| 8. |
991994
|
[1] |
Washer
|
|
| 9. |
3840980
|
[1] |
Nut
|
|
| 10. |
3817323
|
[1] |
Adjusting screw
|
|
| 11. |
975121
|
[2] |
Flange screw
|
|
| 12. |
968163
|
[2] |
Flange screw
|
|
| 13. |
3886317
|
[1] |
Engine anchorage
|
|
| 14. |
975130
|
[4] |
Flange screw
|
|
| 15. |
975126
|
[2] |
Flange screw
|
|
| 16. |
21593939
|
[2] |
Rubber cushion kit
|
|
| 17. |
21586050
|
[1] |
Rubber cushion
|
|
| 18. |
3839409
|
[1] |
Hexagon nut
|
|
| 19. |
3839410
|
[1] |
Adjusting screw
|
|
| 20. |
120224
|
[1] |
Washer
|
|
| 21. |
847766
|
[1] |
Lock washer
|
|
| 22. |
955786
|
[1] |
Hexagon nut
|
|
