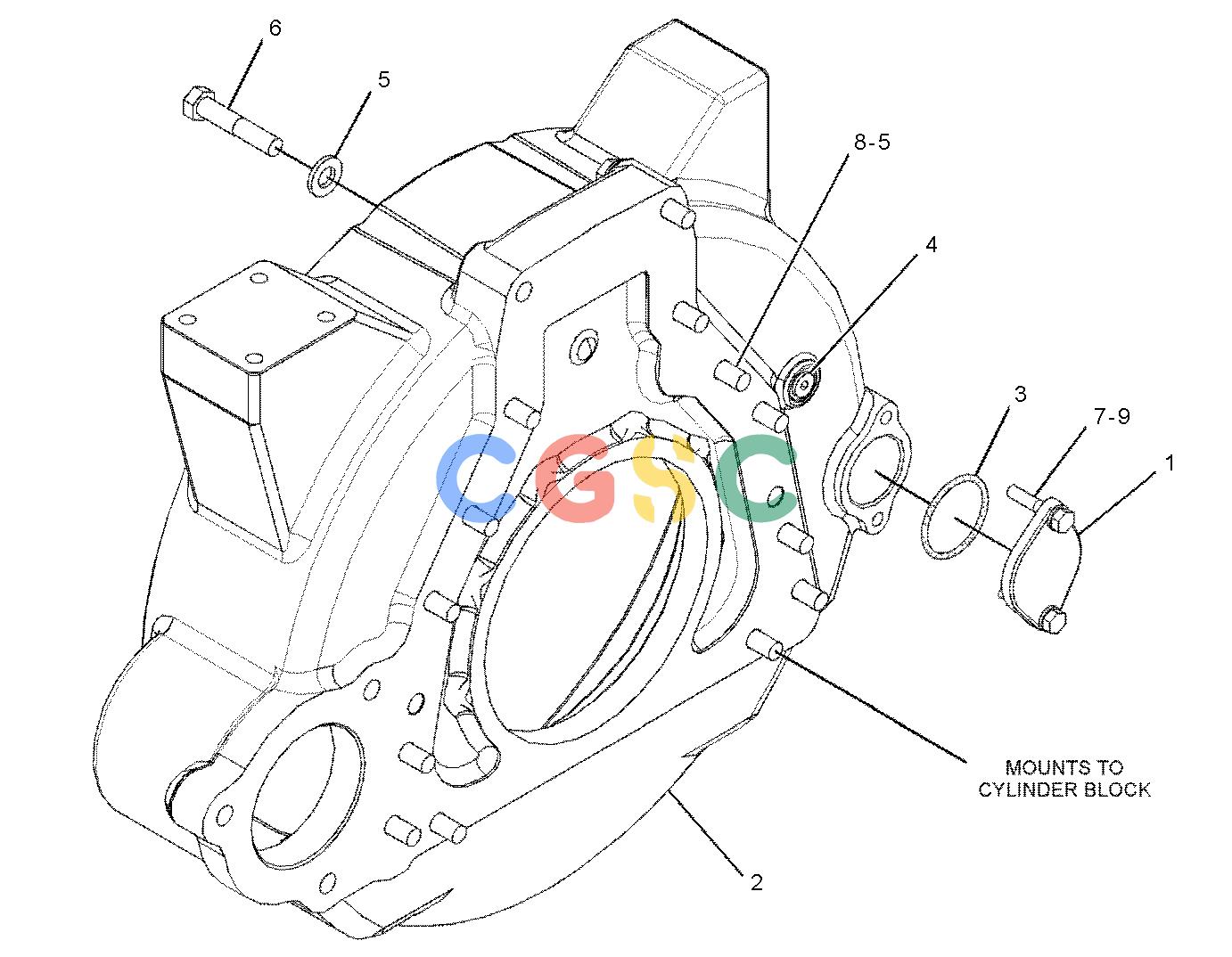

卡特零件查询（725C） 352-1503: HOUSING GP-FLYWHEEL
广数供应链运营团队, 14 02月, 2025，浏览：
704 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-1445 | [1] | COVER | |
| 2. | 358-2283 | [1] | HOUSING-FLYWHEEL | |
| 3. | 061-9455 | [1] | SEAL-O-RING | |
| 4. | 371-7186 | [1] | PLUG AS | |
| | 360-3678 | [1] | PLUG-O-RING | |
| | 214-7567 | [1] | SEAL-O-RING | |
| 5. | 5P-8245 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 6V-3823M | [2] | BOLT(M12X1.75X60-MM) | |
| 7. | 6V-5219M | [2] | BOLT(M8X1.25X40-MM) | |
| 8. | 6V-8197M | [12] | BOLT(M12X1.75X40-MM) | |
| 9. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | | | |
| | 1U-8846BF | | SEALANT-GASKET | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
