神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-015) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1008 次

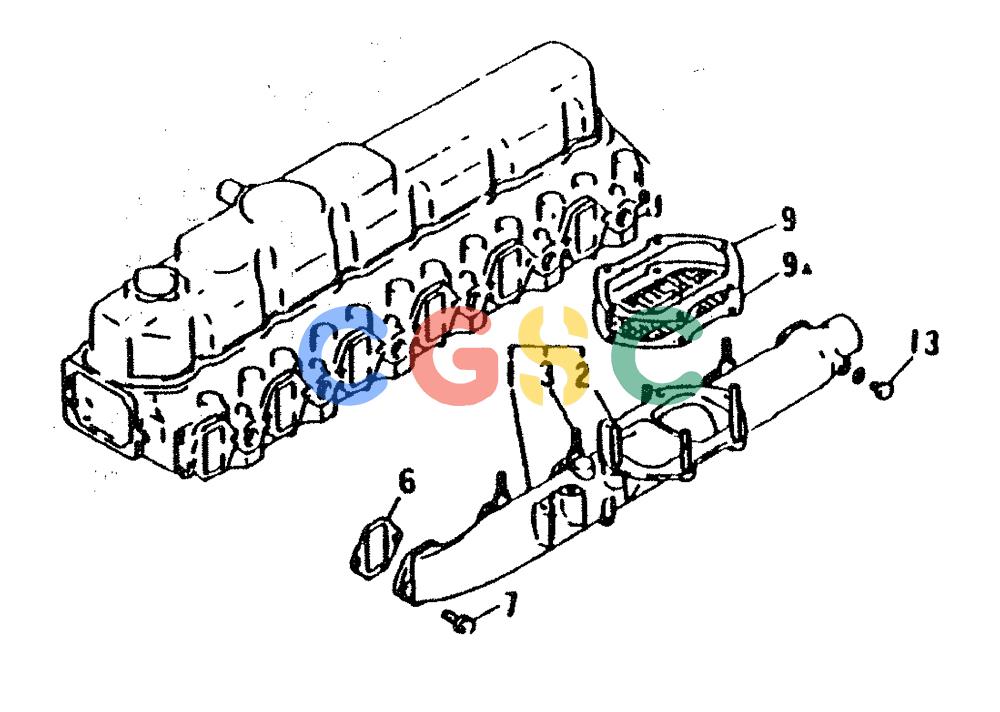

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-3. | VAME088255 | [1] | MANIFOLD | KOB Superseded by part number: VAME088376 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD, INLET |
| 2. | VAMF402574 | [3] | SCREW | KOB8 X 50 |
| 3. | VAMF400657 | [4] | STUD 6 X 28 | STUD 6 X 28 |
| 6. | VAME013031 | [6] | GASKET | KOBINLET MANIF Superseded by part number: VAME212086 |
| 7. | VAMF140225 | [12] | BOLT | KOBFLANGE 8 X 20 |
| 9. | VAME033679 | [1] | GASKET | KOB Superseded by part number: VAME073941 |
| 9A. | VAME033848 | [1] | GASKET | KOBW/NET Superseded by part number: VAME075807 |
| 13. | VAME031088 | [1] | PLUG | KOBSCREW, SET |
| . . | VAMF660063 | [1] | GASKET | KOB10 Superseded by part number: VAF420210000 |
