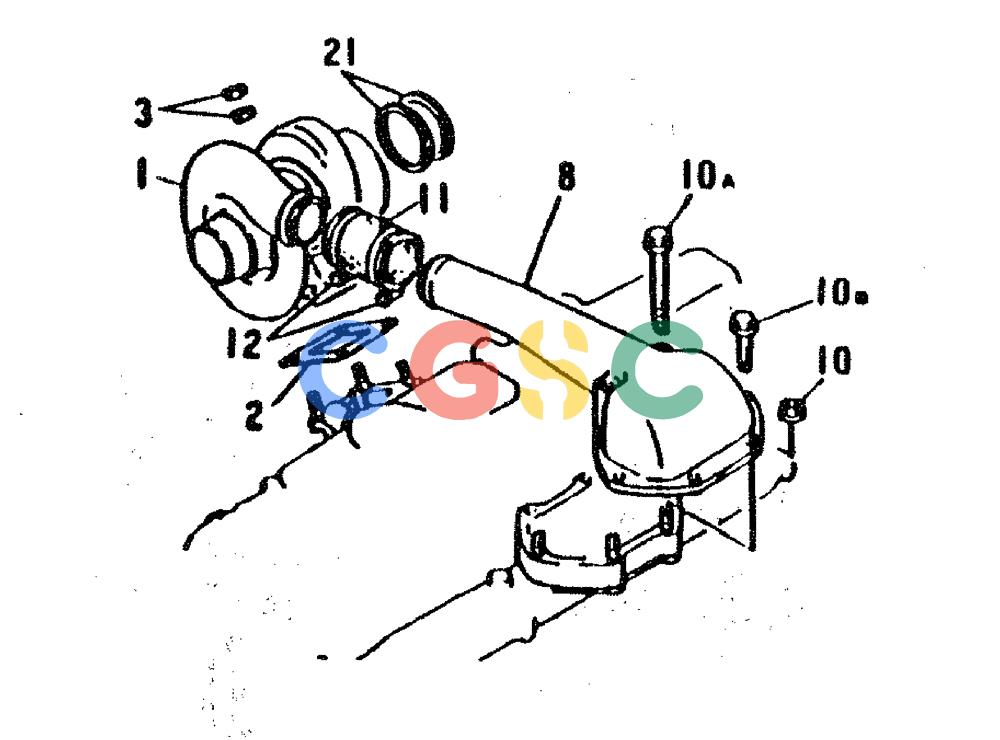

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-017) - TURBO-CHARGER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
512 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME088256 | [1] | TURBOCHARGER | KOBTD86-17C Superseded by part number: VA4917902110 |
| 2. | VAME018189 | [1] | GASKET | KOB Superseded by part number: VAME083638 |
| 3. | VAMH004110 | [8] | NUT | KOB18 Superseded by part number: 134957A1 |
| 8. | VAME088252 | [1] | PIPE | KOB |
| 10. | VAMF434104 | [3] | NUT | KOBFLANGE 8 |
| 10A. | VAMH000820 | [2] | BOLT | KOBFLANGE 8 X 105 |
| 10B. | VAMF243665 | [1] | BOLT | KOBBOLT, W/WSR 8 X 60 |
| 11. | VAME053453 | [1] | HOSE | KOBRUBBER L=45 |
| 12. | VAMH021321 | [2] | CLAMP | KOBBAND Superseded by part number: 134981A1 |
| 21. | VAME013710 | [2] | SEAL RETAINER | KOB |
