神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (01-018) - TURBO-CHARGER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
174 次

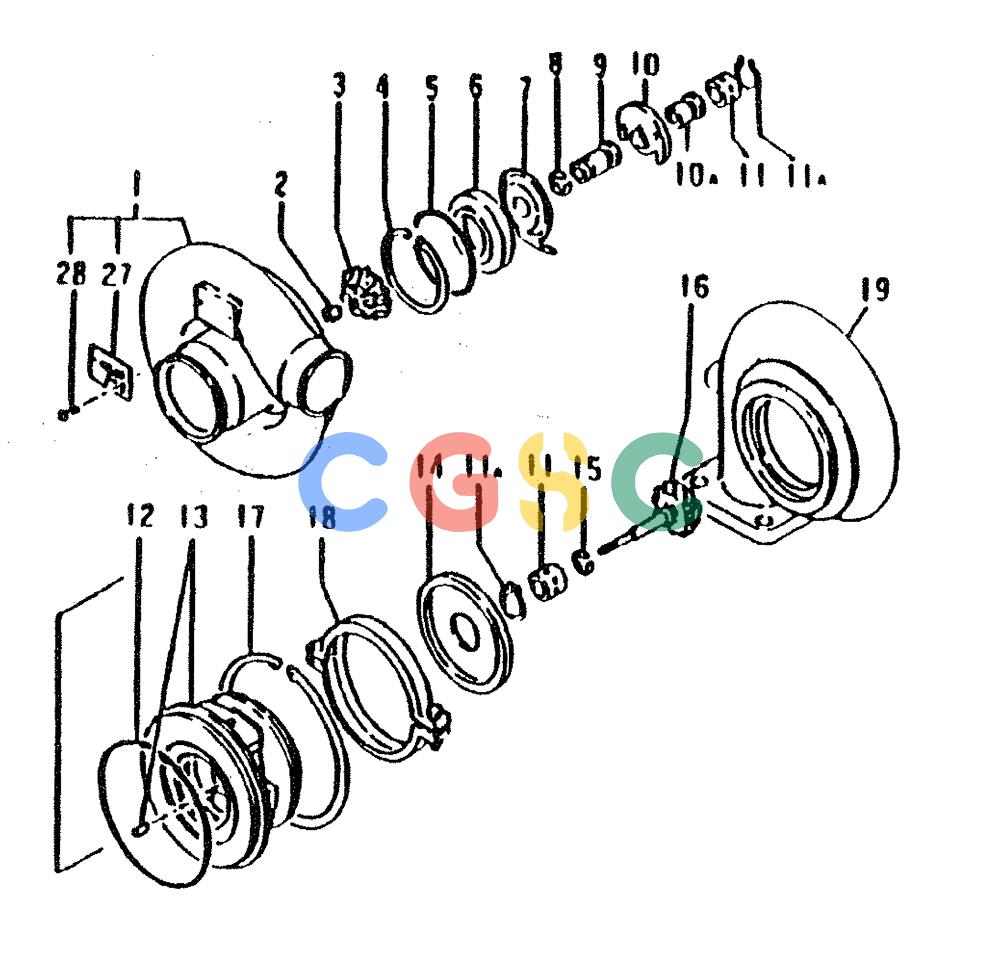

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-28. | VAME088256 | [1] | TURBOCHARGER | KOBTURBOCHARGER ASSY TD06-17C Superseded by part number: VA4917902110 |
| 1. | VAME719936 | [1] | COVER COMPR | COVER COMPR |
| 2. | VAME719621 | [1] | LOCK NUT | KOB |
| 3. | VAME719914 | [1] | TURBINE | KOB |
| 4. | VAME719585 | [1] | SNAP RING | KOB |
| 5. | VAME719590 | [1] | O-RING | KOB |
| 6. | VAME719583 | [1] | INSERT | KOB |
| 7. | VAME719582 | [1] | DEFLECTOR | KOBOIL |
| 8. | VAME719780 | [1] | PISTON RING | KOB |
| 9. | VAME719910 | [1] | SLEEVE | KOB |
| 10. | VAME719902 | [1] | THRUST BEARING | KOB |
| 10A. | VAME719912 | [1] | THRUST RING | KOB |
| 11. | VAME719900 | [2] | BEARING | BEARING |
| 11A. | VAME719904 | [2] | SNAP RING | KOB |
| 12. | VAME719627 | [1] | O-RING | KOB |
| 13. | VAME719921 | [1] | BEARING | KOB |
| 14. | VAME719575 | [1] | PLATE TURBINE BACK | PLATE TURBINE BACK |
| 15. | VAME719906 | [1] | PISTON RING | KOB |
| 16. | VAME719924 | [1] | SHAFT | KOB |
| 17. | VAME719584 | [1] | SNAP RING | KOB |
| 18. | VAME719570 | [1] | COUPLING | KOBCOUPLING ASSY |
| 19. | VAME719520 | [1] | HOUSING TURBINE | HOUSING TURBINE |
| 27. | VAME719524 | [1] | PLATE, NAME | |
| 28. | VAME719762 | [2] | RIVET, SCREW 2 X 4.8 | |
