神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (02-001) - WATER PUMP Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
622 次

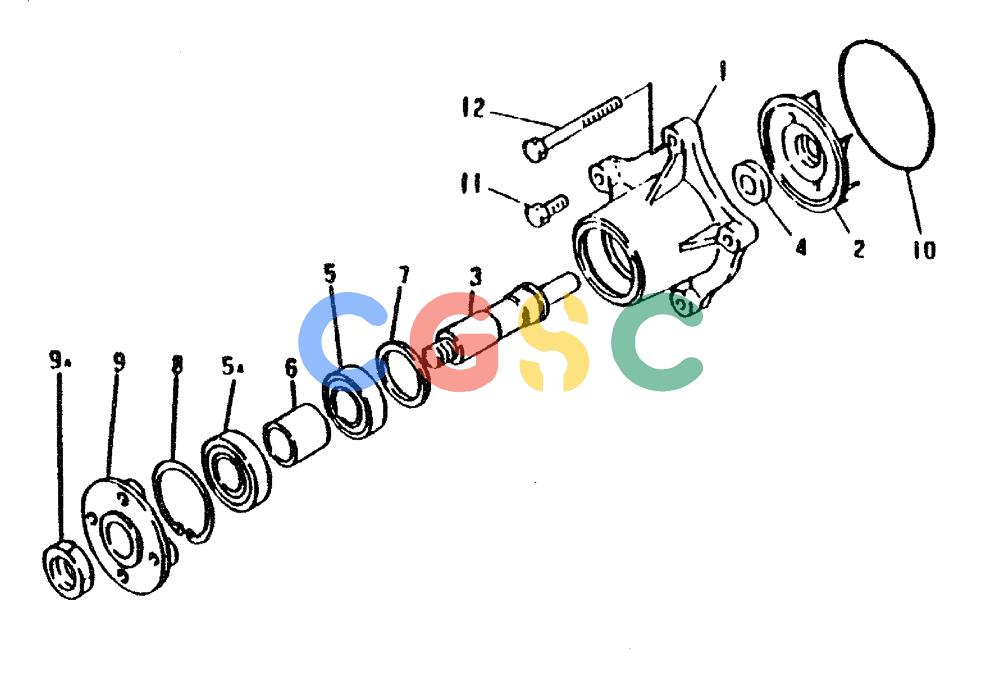

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9A. | VAME081097 | [1] | WATER PUMP ASSY | |
| 1-9A. | VAME088301 | [1] | WATER PUMP | KOBAssembly Superseded by part number: VAME996873 |
| 1. | VAME015043 | [1] | WATER PUMP CASE | WATER PUMP CASE |
| 2-5A, 10. | VAME999619 | [1] | KIT, ENGINE TOP GASK | KOBFOR SERVICE ONLY |
| 2. | VAME018095 | [1] | IMPELLER | KOB |
| 3. | VAME080033 | [1] | SHAFT | KOB |
| 4. | VAMH034026 | [1] | SEAL | KOBUNIT |
| 5. | VAMS556065 | [1] | BEARING | KOBBALL |
| 5A. | VAMS556185 | [1] | BEARING | KOBBALL Superseded by part number: VAF801206305 |
| 6. | VAME920030 | [1] | SPACER | KOB |
| 7. | VA3114502900 | [1] | WASHER | KOB |
| 8. | VAMF522236 | [1] | SNAP RING | KOB62 |
| 9. | VAME039863 | [1] | FLANGE | KOB |
| 9A. | VAMF430732 | [1] | NUT | KOB22 |
| 10. | VAMF520416 | [1] | O-RING | KOB100 |
| 11. | VAMF140229 | [2] | BOLT | KOBFLANGE 8 X 30 |
| 12. | VAMF140244 | [2] | BOLT | KOBFLANGE 8 X 90 |
