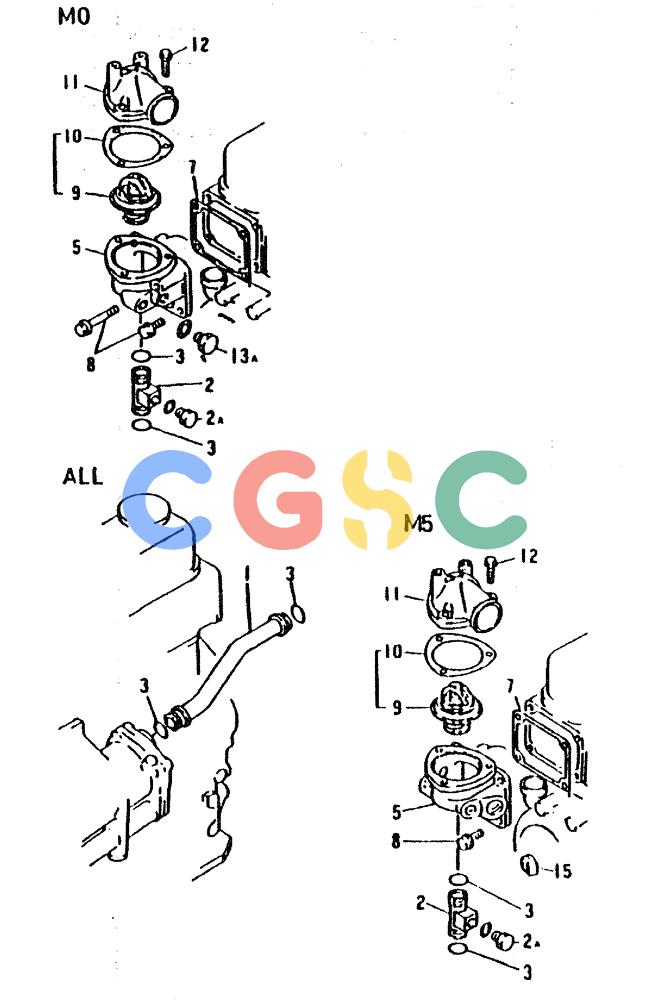

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (02-002) - WATER PIPE AND THERMOSTAT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME085512 | [1] | RIGID TUBE | KOB |
| 2. | VAME080071 | [1] | PIPE | KOB |
| 2A. | VAM0001300 | [1] | PLUG | KOBPLUG |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
| 3. | VAMF520016 | [4] | O-RING | KOBO-RING 22.1 |
| 5. | VAME080107 | [1] | CASE | KOBFOR M0 ONLY |
| . . | VAME080296 | [1] | CASE | KOBFOR M5 ONLY |
| 7. | VAME015421 | [1] | GASKET | KOBTHERMOSTAT CASE Superseded by part number: VAME014499 |
| 8. | VAMH000714 | [2] | BOLT | KOBBOLT, FLANGE 10 X 25, FOR M0 ONLY |
| . . | VAMH000712 | [2] | SCREW | KOBBOLT, FLANGE 10 X 65, FOR M0 ONLY |
| . . | VAMH000714 | [1] | BOLT | KOBBOLT, FLANGE 10 X 25, FOR M5 ONLY |
| 9-10. | VAME999516 | [1] | SENSOR | KOBTHERMOSTAT KIT 76.5°C, FOR SERVICE ONLY Superseded by part number: VAME995106 |
| 9. | VAME015380 | [1] | SENSOR | KOBTHERMOSTAT 76.5°C Superseded by part number: VAME995106 |
| 10. | VAME015421 | [1] | GASKET | KOB Superseded by part number: VAME014499 |
| 11. | VAME015429 | [1] | COVER | KOB |
| 12. | VAMF140229 | [3] | BOLT | KOBBOLT, FLANGE 8 X 30 |
| 13A. | VAM0001300 | [1] | PLUG | KOBPLUG, FOR M0 ONLY |
| 15. | VAMS666224 | [1] | PLUG | KOBPLUG, TAPER PT 3/4FOR M5 ONLY |
