神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (02-004) - FAN AND PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1001 次

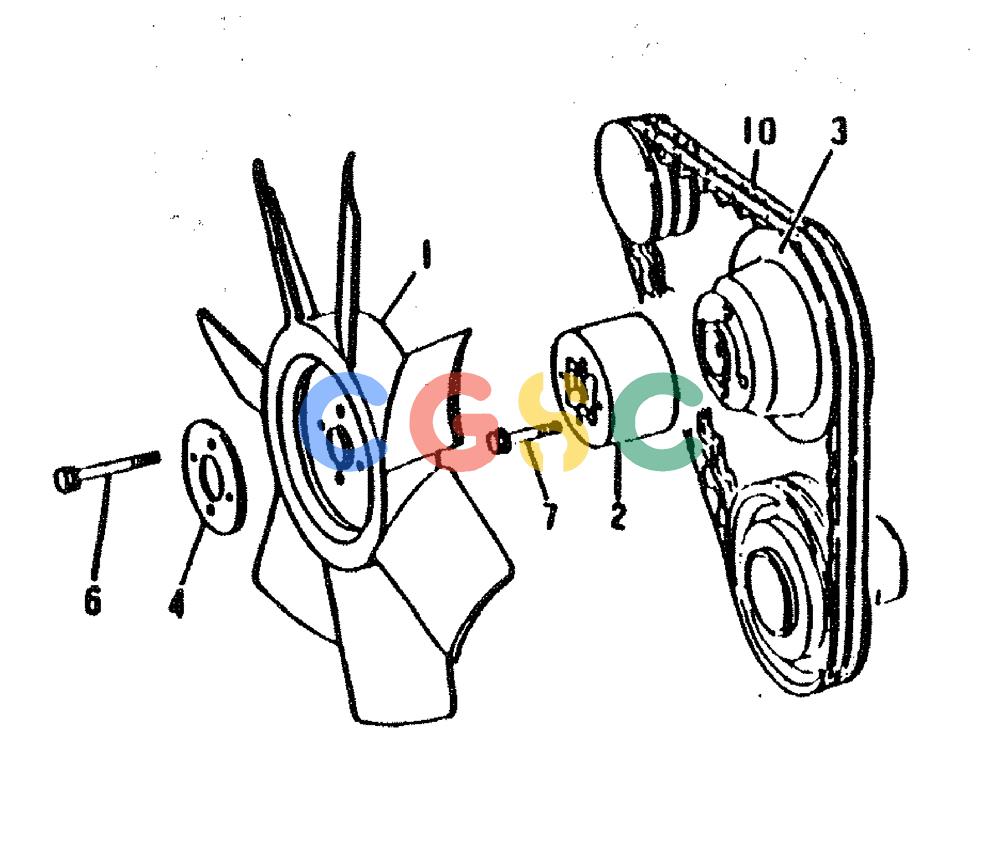

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME018185 | [1] | FAN | KOBSUCTION TYPE, FIGURE 608 |
| 2. | VAME088133 | [1] | SPACER | KOB |
| 3. | VAME088288 | [1] | DRIVEN SPROCKET | KOBD168 A X 2 |
| 4. | VA3004891500 | [1] | SPACER | KOBPLATE |
| 6. | VAMF300845 | [4] | BOLT | KOBBOLT, W/WSR 10 X 30 |
| 7. | VAMH000724 | [4] | SCREW | KOBBOLT, FLANGE 10 X 85 Superseded by part number: 132669A1 |
| 10. | VAME902206 | [1] | BELT, TRANSMISSION | KOB2BELTS SET A L=1190 Superseded by part number: VAMH014090 |
