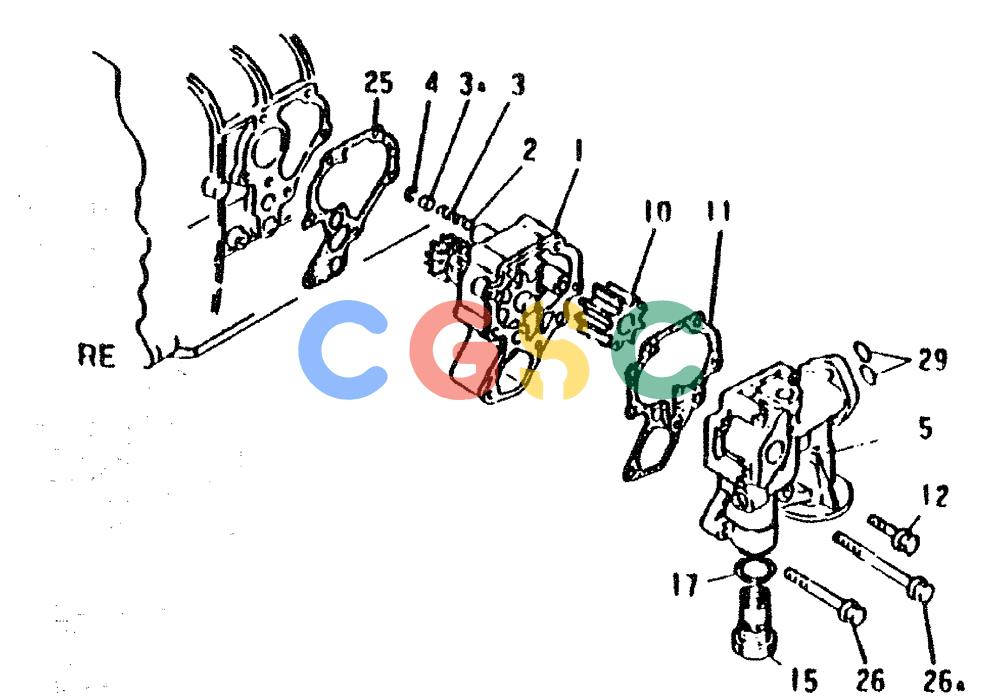

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (02-005) - OIL PUMP AND GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
683 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME084542 | [1] | ENGINE OIL PUMP | KOB Superseded by part number: VAME084586 |
| 1. | VAME084543 | [1] | OIL PUMP CASE ASSY | |
| 2. | VAMF540014 | [1] | BALL | BALL |
| 3. | VAME034013 | [1] | SPRING | KOB |
| 3A. | VAME034014 | [1] | SEAT SPG | SEAT SPG |
| 4. | VAMF522205 | [1] | RING SNAP 14 | RING SNAP 14 |
| 5. | VAME084588 | [1] | COVER ASSY | KOB |
| 10. | VAME084547 | [1] | DRIVEN GEAR | KOB |
| 11. | VAME084507 | [1] | GASKET | KOB |
| 12. | VAMF140231 | [2] | BOLT | KOBFLANGE 8 X 35 |
| 15. | VAME014471 | [1] | VALVE | KOB |
| 17. | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 25. | VAME084519 | [1] | GASKET | KOB |
| 26. | VAMF140241 | [3] | BOLT | KOBFLANGE 8 X 80 |
| 26A. | VAMF140245 | [3] | BOLT | KOBFLANGE 8 X 100 |
| 29. | VAMH035015 | [2] | O-RING | KOB |
