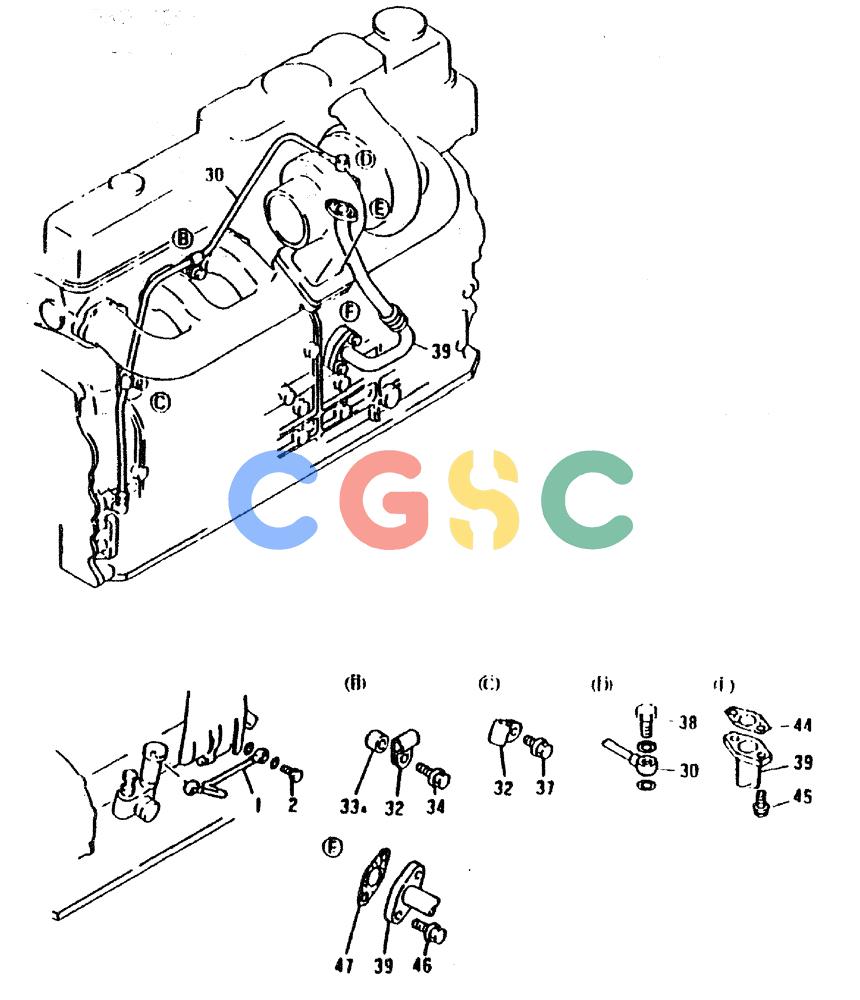

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (02-009) - OIL LINE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
867 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME018182 | [1] | PIPE | KOB |
| 2. | VAMH037279 | [1] | BOLT | KOBEYE |
| . . | VAMF660063 | [2] | GASKET | KOB10 Superseded by part number: VAF420210000 |
| 30. | VAME018168 | [1] | PIPE | KOB |
| 32. | VA3003638302 | [2] | CLAMP | CLAMP |
| 33A. | VAME920041 | [1] | SPACER | KOBL=17 |
| 34. | VAMF140229 | [1] | BOLT | KOBFLANGE 8 X 30 |
| 37. | VAMF140221 | [1] | BOLT | KOBFLANGE 8 X 12 |
| 38. | VAMF650102 | [1] | SCREW | KOBEYE |
| 39. | VAME088283 | [1] | PIPE | KOB |
| 44. | VAME014559 | [1] | GASKET | KOB Superseded by part number: VAME073842 |
| 45. | VAMH000999 | [2] | BOLT | KOBFLANGE 6 X 12 |
| 46. | VAMF140223 | [2] | BOLT | KOBFLANGE 8 X 16 |
| 47. | VAME014532 | [1] | GASKET | KOB Superseded by part number: VAME013757 |
