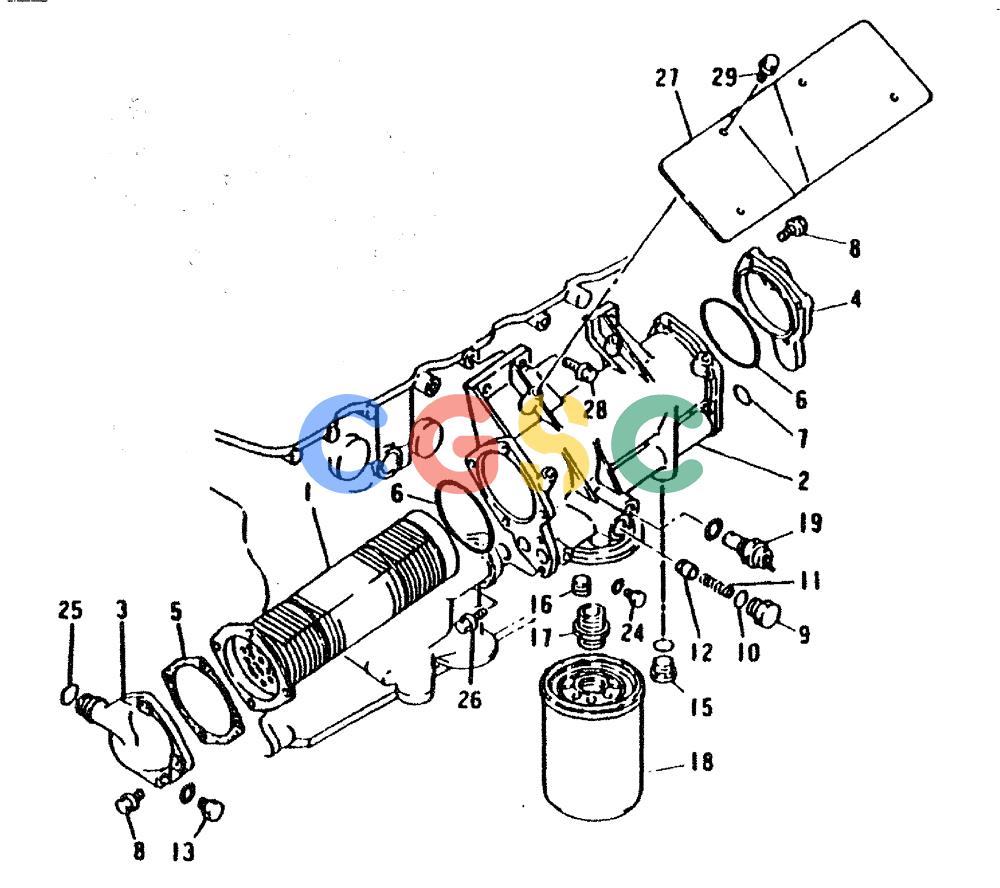

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (02-010) - OIL COOLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
350 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-19. | VAME084529 | [1] | HYD CONNECTOR | KOBOIL COOLER ASSY |
| 1. | VAME084521 | [1] | ELEMENT | KOBOIL COOLER |
| 2. | VAME084533 | [1] | SHELL | KOBSHELL, OIL COOLER |
| 3. | VAME084523 | [1] | COVER | KOBCOVER, OIL COOLER |
| 4. | VAME084524 | [1] | COVER OIL COOLER | COVER OIL COOLER |
| 5. | VAME084525 | [1] | GASKET | KOBGASKET Superseded by part number: 77269658, VAME353143 |
| 6. | VAMF520592 | [2] | O-RING | KOBO-RING 88 |
| 7. | VAMH035091 | [1] | O-RING | KOBO-RING 22 |
| 8. | VAMF140025 | [2] | SCREW | KOBBOLT, FLANGE 8 X 20 |
| 9. | VAME014717 | [1] | PINION | KOB Superseded by part number: 240099A1 |
| 10. | VAMH035044 | [2] | O-RING | KOBO-RING Superseded by part number: 240098A1 |
| 11. | VAME084526 | [1] | SPRING | KOBBY-PASS VALVE |
| 12. | VAME084527 | [1] | VALVE PRESSURE RELIE | KOB Superseded by part number: 240095A1 |
| 13. | VAME084528 | [1] | PLUG | KOB |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 15. | VAMH037117 | [1] | PLUG | KOBPLUG |
| 16. | VAMF665103 | [1] | PLUG PLUG P13/8 | PLUG PLUG P13/8 |
| 17. | VAME084529 | [1] | HYD CONNECTOR | KOB |
| 18. | VAME084530 | [1] | ELEMENT | KOBELEMENT, OIL FILTER Superseded by part number: 2451U333-1 |
| 19. | VAME040217 | [1] | BUZZER | KOBOIL BY-PASS |
| . . | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 24. | VAME031088 | [1] | PLUG | KOB |
| 25. | VAMF520016 | [1] | O-RING | KOBO-RING 22.1 |
| 26. | VAMF140223 | [2] | BOLT | KOBBOLT, FLANGE 8 X 20 |
| 27. | VAME088831 | [1] | ELBOW | KOBINSULATOR, HEAT O/C |
| 28. | VAMH000714 | [3] | BOLT | KOBBOLT, FLANGE 18 X 25 |
| 29. | VAMF140221 | [4] | BOLT | KOBBOLT, FLANGE 8 X 12 |
