神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (04-003) - STARTER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
656 次

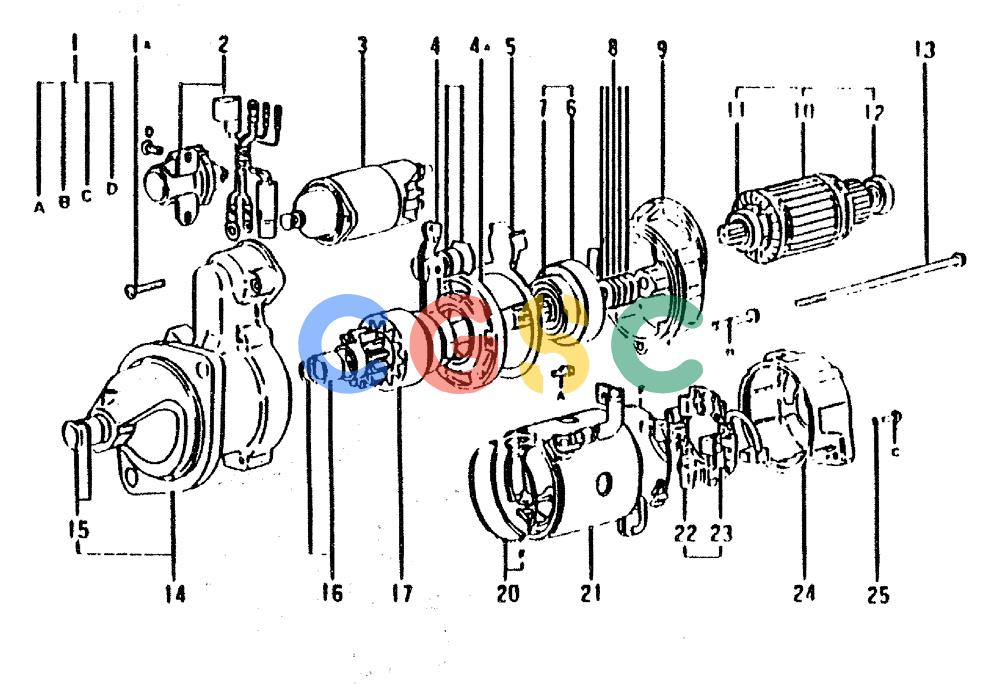

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VAME087521 | [1] | STARTER MOTOR | KOB24V-5.5KW |
| 1. | VAME700276 | [1] | SET OF SCREWS | KOB |
| 1A. | VAME700288 | [2] | U-BRACKET | KOBSCREW FLANGE Superseded by part number: 135048A1 |
| 2. | VAME700895 | [1] | SWITCH | KOB Superseded by part number: VAU001T07077 |
| 3. | VAME700889 | [1] | SWITCH | KOBASSY Superseded by part number: VAM371X21271 |
| 4. | VAME700884 | [1] | LEVER | KOB |
| 4A. | VAME700287 | [1] | BRACKET GEAR | BRACKET GEAR |
| 5. | VAME700285 | [1] | PACKING | KOB Superseded by part number: ME700285 |
| 6-7. | VAME700286 | [1] | SHAFT | KOBGEAR Superseded by part number: 135057A1 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, INTERNAL |
| 7. | VAME700072 | [1] | BEARING | KOBGEAR Superseded by part number: 135038A1 |
| 8. | VAME700022 | [1] | WASHER | KOB Superseded by part number: 135071A1 |
| 9. | VAME700288 | [1] | U-BRACKET | KOB Superseded by part number: 135048A1 |
| 10-12. | VAME700321 | [1] | ARMATURE | KOB Superseded by part number: 77269913, 135036A1 |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONARMATURE |
| 11. | VAME700038 | [1] | BEARING | KOBCTR Superseded by part number: 135040A1 |
| 12. | VAME700039 | [1] | BEARING | KOB Superseded by part number: VAS930P28001 |
| 13. | VAME700291 | [1] | BOLT | KOB Superseded by part number: VAM981X76071 |
| 14. | VAME700885 | [1] | BRACKET ASSY FRONT | BRACKET ASSY FRONT |
| 15. | VAME700862 | [1] | BUSHING | KOBSLEEVE Superseded by part number: VAM410X13872 |
| 16. | VAME700886 | [1] | SOCKET | KOB |
| 17. | VAME700887 | [1] | CLUTCH | KOBRUNNING |
| 20. | VAME700875 | [1] | GASKET | KOB Superseded by part number: 135063A1 |
| 21. | VAME700888 | [1] | YOKE | KOB |
| 22-23. | VAME700047 | [1] | HOLDER BRUSH | HOLDER BRUSH |
| 22. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, BRUSH |
| 23. | VAMD607462 | [4] | SPRING SPRING, BRUSH | SPRING SPRING, BRUSH |
| 24. | VAME700048 | [1] | U-BRACKET | KOB Superseded by part number: 135050A1 |
| 25. | VAME700026 | [2] | SEAL RETAINER | KOB Superseded by part number: 135064A1 |
