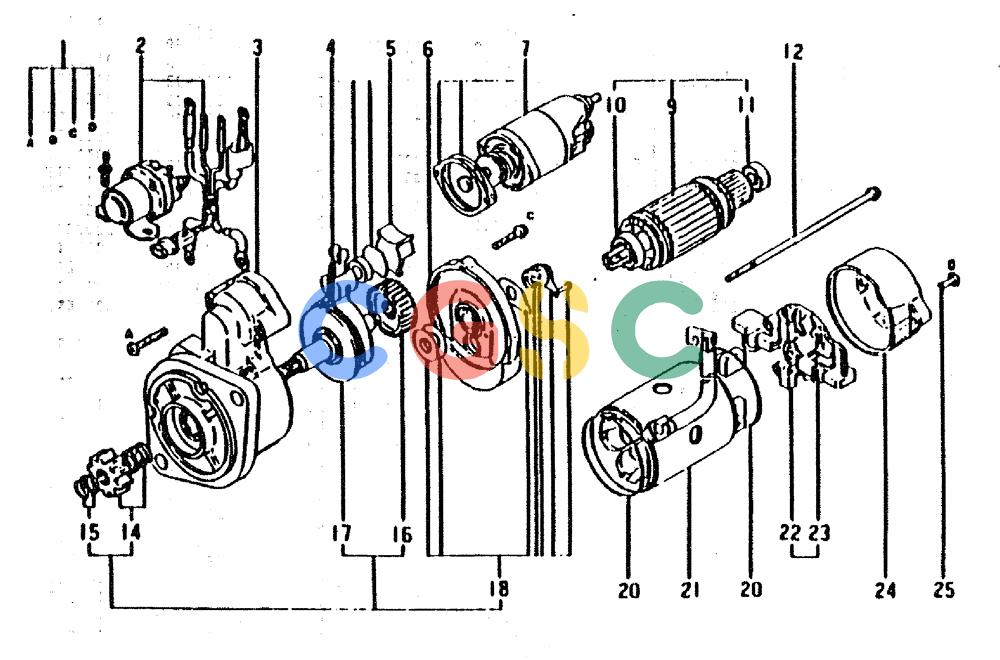

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (04-002) - STARTER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
426 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VAME087507 | [1] | STARTER MOTOR | KOBASSY 24V-5KW Superseded by part number: VAME087589 |
| 1. | VAME700860 | [1] | SET SCREW | SET SCREW |
| 2. | VAME700895 | [1] | SWITCH | KOB Superseded by part number: VAU001T07077 |
| 3. | VAME700851 | [1] | BRACKET ASSY, FR | BRACKET ASSY, FR |
| 4. | VAME700234 | [1] | LEVER | KOB Superseded by part number: VAM863C05672 |
| 5. | VAME700033 | [1] | PACKING PACKING | PACKING PACKING |
| 6. | VAME700852 | [1] | BRACKET ASSY, CTR | |
| 7. | VAME700853 | [1] | SWITCH | KOBASSY Superseded by part number: VAM371X21071 |
| 9-11. | VAME700854 | [1] | ARMATURE | KOBASSY Superseded by part number: VAM106X40871 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONARMATURE |
| 10. | VAME700117 | [1] | BEARING | KOBCIR |
| 11. | VAME700118 | [1] | BALL BEARING | KOBRE |
| 12. | VAME700036 | [1] | BOLT | KOBSET Superseded by part number: VAM901X01771 |
| 14-18. | VAME700855 | [1] | SHAFT | KOBCLUTCH SET |
| 14-15. | VAME700856 | [1] | SET OF PINIONS | KOB |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONPINION |
| 15. | VAME700124 | [1] | STOP | KOB Superseded by part number: VAM385X03771 |
| 16-17. | VAME700120 | [1] | GEAR SET | KOB |
| 16. | VAME700122 | [1] | GEAR | GEAR |
| 17. | VAME700121 | [1] | SHAFT | KOBPINION |
| 18. | VAME700045 | [1] | COVER SET | COVER SET |
| 20. | VAME700130 | [2] | PACKING | KOB |
| 21. | VAME700896 | [1] | YOKE | KOB |
| 22-23. | VAME700858 | [1] | HOLDER, INJECTOR NOZ | KOBBRUSH Superseded by part number: VAM649T02172 |
| 22. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, BRUSH |
| 23. | VAMD611025 | [4] | SPRING, BRUSH | |
| 24. | VAME700129 | [1] | U-BRACKET | KOB Superseded by part number: VAM644B10601 |
| 25. | VAME700026 | [2] | SEAL RETAINER | KOB Superseded by part number: 135064A1 |
