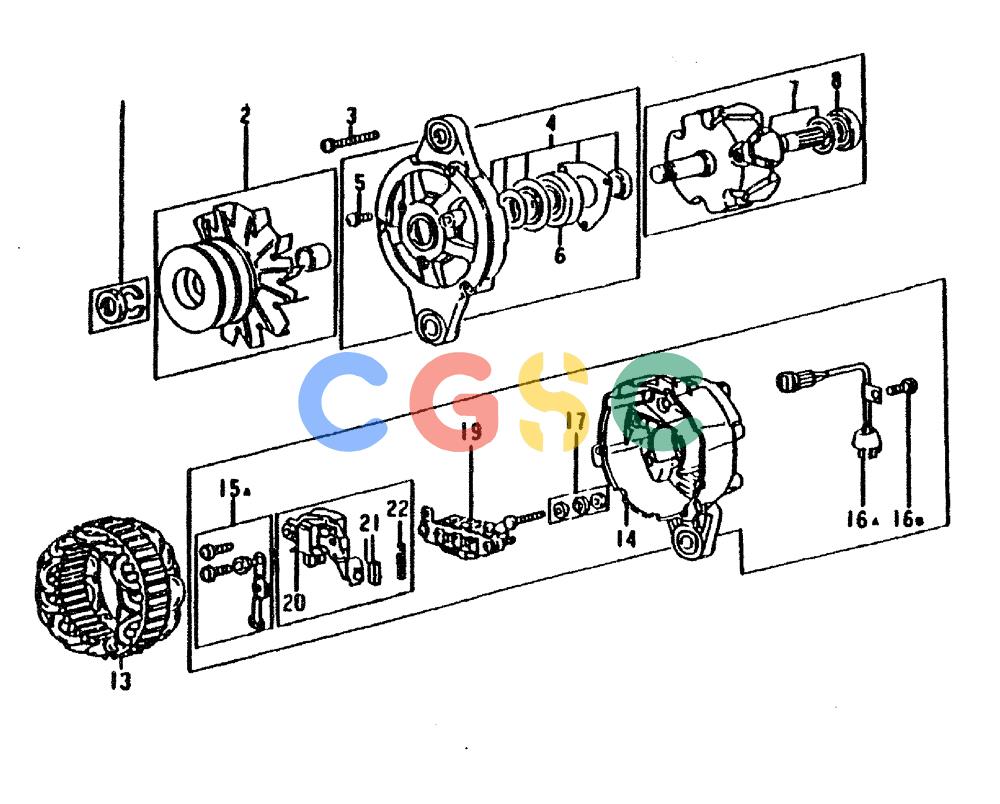

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (04-005) - ALTERNATOR (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-22. | VAME087508 | [1] | ALTERNATOR | KOBASSY, MEC 24V-30A |
| 1. | VAME700588 | [1] | NUT | KOB Superseded by part number: 135142A1 |
| 2. | VAME700882 | [1] | PLATE | KOBAX2 |
| 3. | VAME700590 | [1] | SCREW SET | SCREW SET |
| 4-6. | VAME700633 | [1] | PANEL | KOBFR |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, FR |
| 5. | VAMM502367 | [1] | SCREW SET | SCREW SET |
| 6. | VAME700535 | [1] | BEARING | KOBFRONT Superseded by part number: VAS930P37201, VAS930P37270 |
| 7-8. | VAME700606 | [1] | ROTOR | KOB |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONROTOR |
| 8. | VAME700594 | [1] | BEARING | KOB |
| 13. | VAME700607 | [1] | STATOR | KOB |
| 14-22. | VAME700766 | [1] | U-BRACKET | KOBASSY, RE |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, RE |
| 15A. | VAME700596 | [1] | TERMINAL | KOBSET |
| 16A. | VAME700639 | [1] | HYD CONNECTOR | KOBASSY Superseded by part number: VAA309D11271, 77269928 |
| 16B. | VAME700154 | [1] | BOLT | BOLT |
| 17. | VAME700821 | [1] | NUT | KOB |
| 19. | VAME700767 | [1] | RECTIFIER | KOBASSY |
| 20-22. | VAME700635 | [1] | REGULATOR | KOBASSY Superseded by part number: VAA866T06870 |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONREGULATOR |
| 21. | VAMM502377 | [2] | BRUSH | KOBBRUSH |
| 22. | VAMM502378 | [2] | SPRING SPRING, BRUSH | SPRING SPRING, BRUSH |
