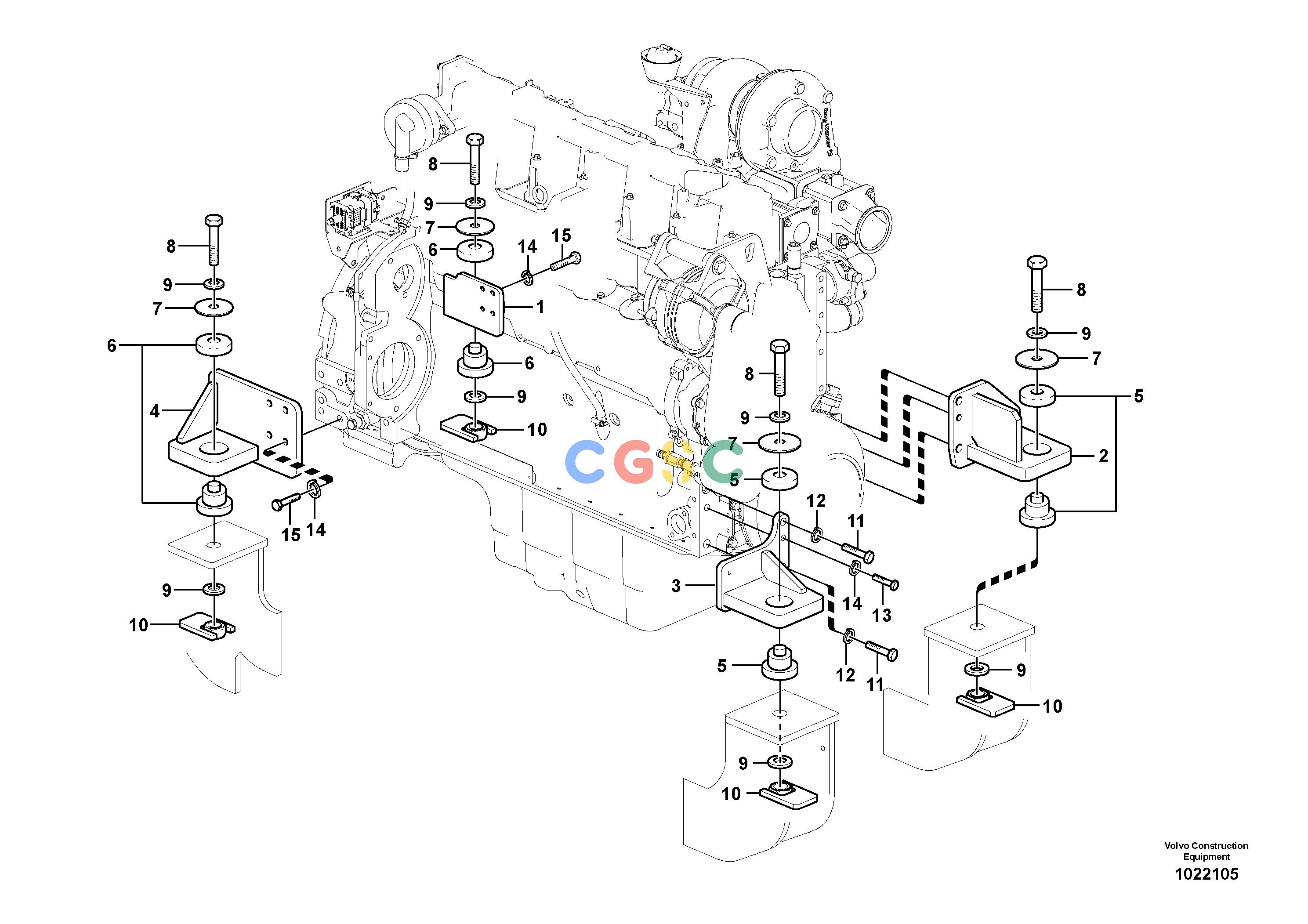

沃尔沃零件查询EC290C Engine mountS/N 110001 - 1118568280940 S/N -111273-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
982 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14537425
|
[1] |
Bracket
|
|
| 2. |
VOE14531495
|
[1] |
Bracket
|
|
| 3. |
VOE14531496
|
[1] |
Bracket
|
|
| 4. |
VOE14537426
|
[1] |
Bracket
|
|
| 5. |
VOE14528380
|
[2] |
Cushion
|
|
| 6. |
VOE14528381
|
[2] |
Cushion
|
|
| 7. |
VOE14526169
|
[4] |
Plate
|
|
| 8. |
VOE992992
|
[4] |
Hexagon screw
|
|
| 9. |
VOE992059
|
[8] |
Plain washer
|
|
| 10. |
VOE14512933
|
[4] |
Nut
|
|
| 11. |
VOE997462
|
[4] |
Hexagon screw
|
|
| 12. |
VOE955926
|
[4] |
Spring washer
|
|
| 13. |
VOE978933
|
[2] |
Hexagon screw
|
|
| 14. |
VOE955923
|
[10] |
Spring washer
|
|
| 15. |
VOE993029
|
[8] |
Hexagon screw
|
|
