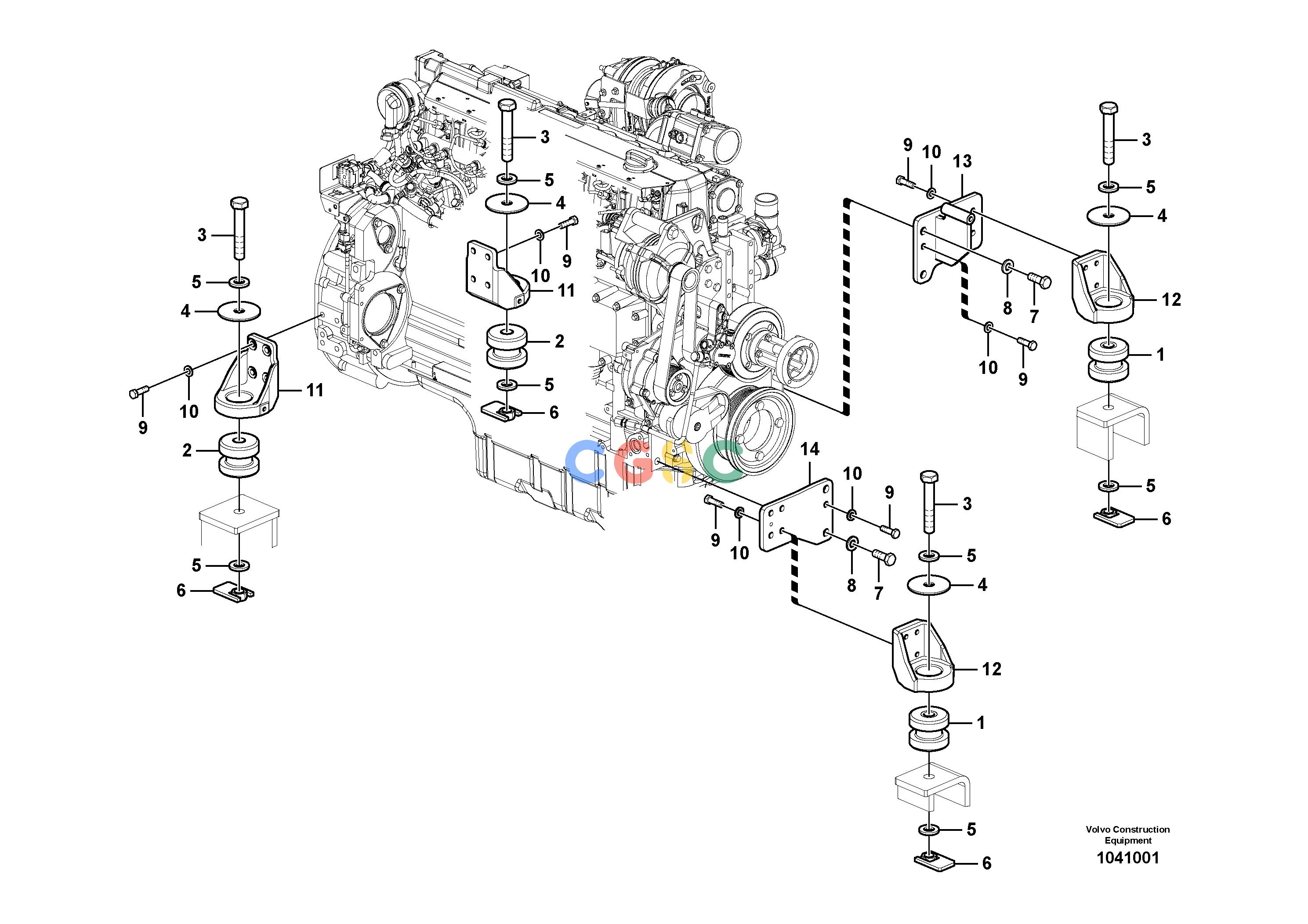

沃尔沃零件查询EC290C Engine mountingS/N 110001 - 1118568287034 S/N 111274--NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14528380
|
[2] |
Cushion
|
|
| 2. |
VOE14528381
|
[2] |
Cushion
|
|
| 3. |
VOE992992
|
[4] |
Hexagon screw
|
|
| 4. |
VOE14526169
|
[4] |
Plate
|
|
| 5. |
VOE9211-22000
|
[8] |
Lifting eye
|
|
| 6. |
VOE14512933
|
[4] |
Nut
|
|
| 7. |
VOE978937
|
[4] |
Hexagon screw
|
|
| 8. |
VOE60110299
|
[4] |
Washer
|
|
| 9. |
VOE978933
|
[18] |
Hexagon screw
|
|
| 10. |
VOE992042
|
[18] |
Plain washer
|
|
| 11. |
VOE14578737
|
[2] |
Bracket
|
|
| 12. |
VOE14578736
|
[2] |
Bracket
|
|
| 13. |
VOE14598259
|
[1] |
Bracket
|
|
| 14. |
VOE14578743
|
[1] |
Plate
|
|
