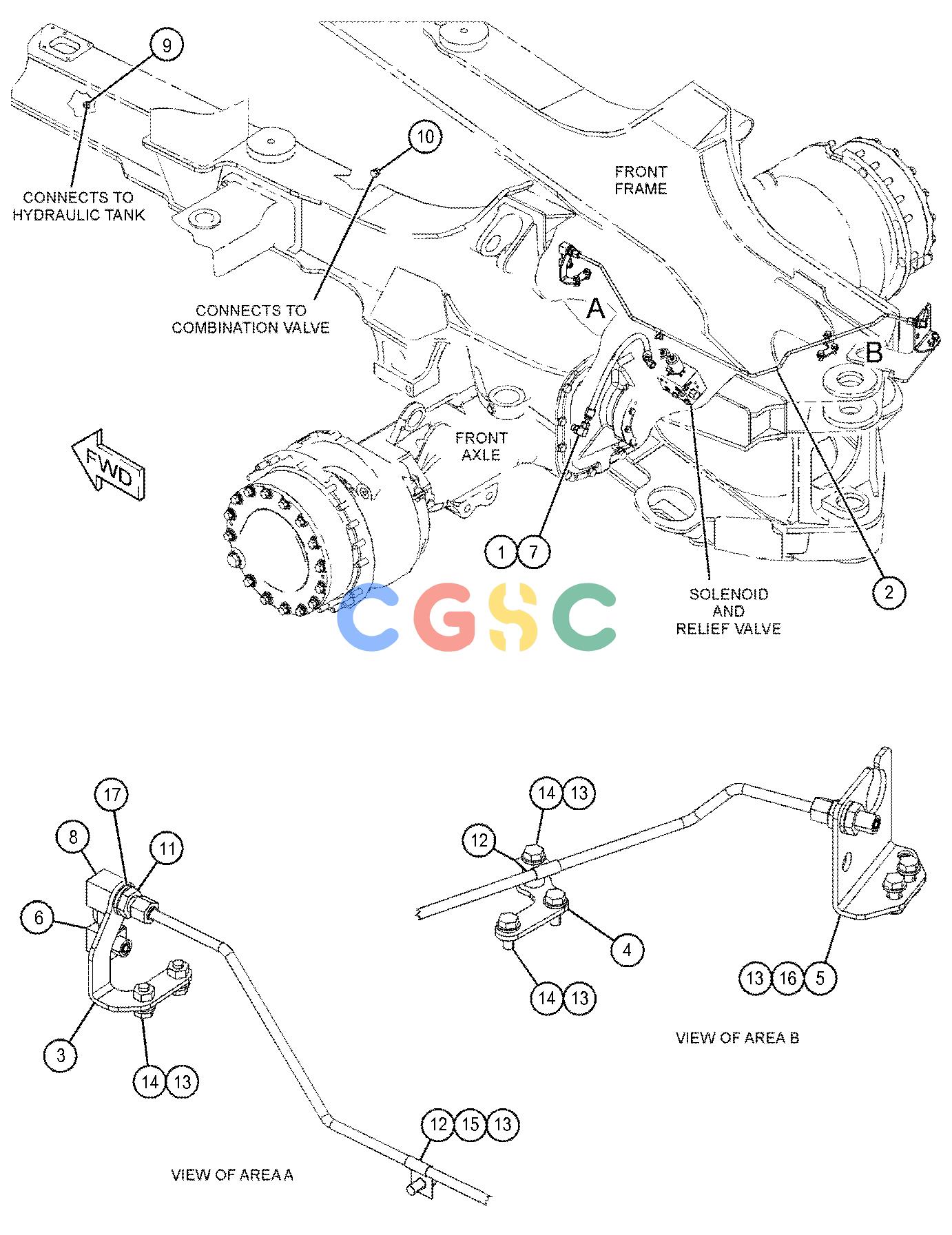

卡特零件查询（725C） 433-3253: LINES GP-DIFFERENTIAL LOCK
广数供应链运营团队, 14 02月, 2025，浏览：
236 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 220-8701I | [1] | HOSE AS | |
| 2. | 445-6362 | [1] | TUBE AS | |
| 3. | 445-6435 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 4. | 446-1855 | [1] | BRACKET AS | |
| 5. | 494-1930 | [1] | ADAPTER GP-MOUNTING | |
| | 149-5452 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | 487-4301 | [1] | BRACKET AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 6. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 7. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 8. | 148-8377 | [1] | ELBOW AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 9. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 10. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 11. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 12. | 8B-6127 | [2] | CLIP | |
| 13. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4136M | [5] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 16. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 17. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
