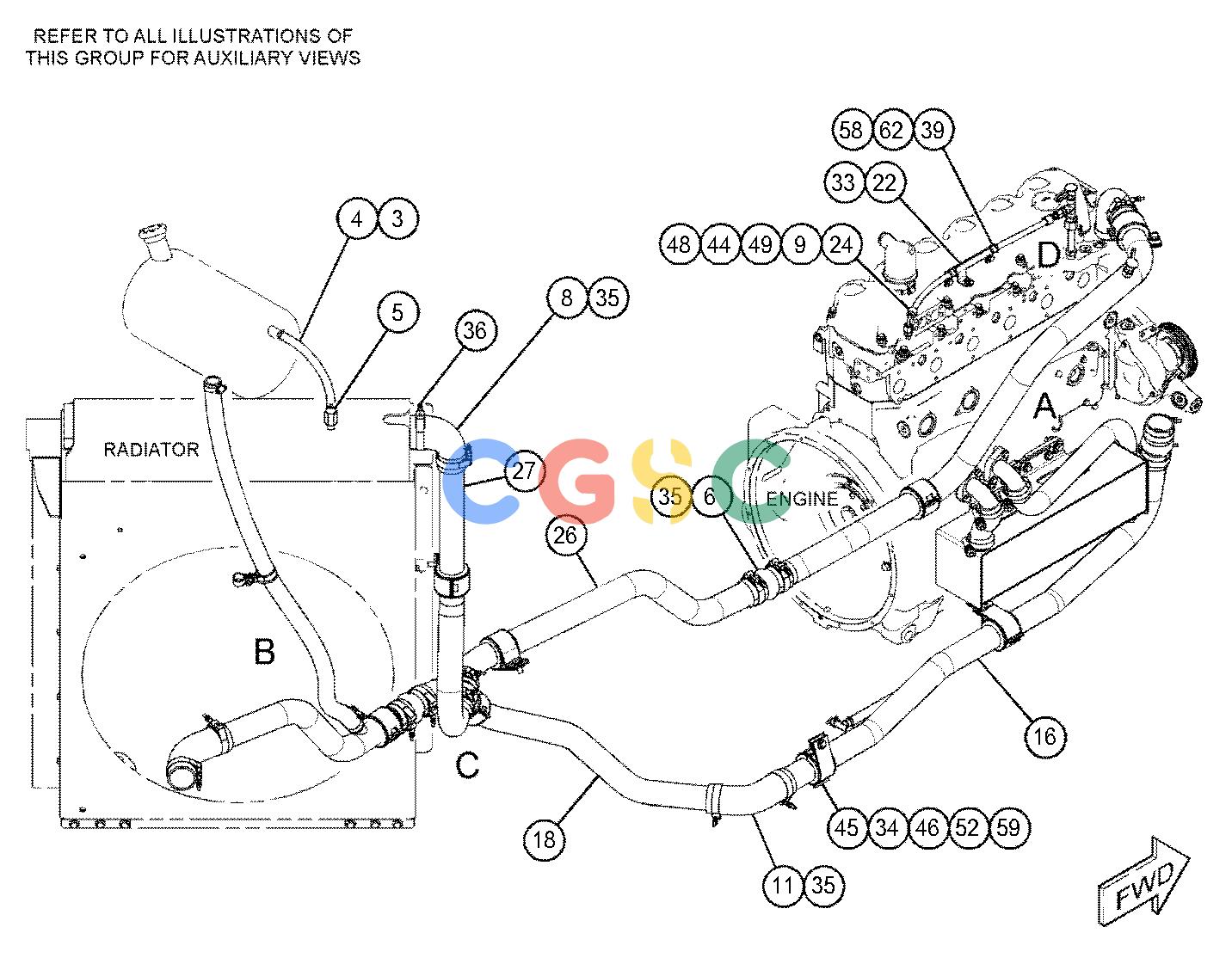

卡特零件查询（725C） 364-4063: LINES GP-POWER TRAIN COOLER
广数供应链运营团队, 14 02月, 2025，浏览：
520 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-2703 | [2] | BRACKET-ANGLE | |
| 2. | 8F-8151 | [1] | VALVE-SHUTOFF(COOLANT DRAIN) | |
| 3. | 8T-0154 | [3] | CLAMP-HOSE | |
| 4. | 9X-2133E | | HOSE(40-CM) | |
| 5. | 247-5367 | [1] | ELBOW AS | |
| 6. | 342-6299 | [4] | HOSE | |
| 7. | 342-8060 | [1] | ELBOW | |
| 8. | 361-3770 | [1] | ELBOW | |
| 9. | 371-7180 | [1] | CONNECTOR AS | |
| | 6D-7128 | [1] | SEAL-O-RING | |
| | 8C-6869 | [1] | CONNECTOR | |
| 10. | 450-3461 | [1] | COOLER AS-TRANSMISSION OIL | |
| 11. | 387-8169 | [2] | ELBOW | |
| 12. | 451-5779 | [1] | PLATE AS | |
| | 8T-3490M | [9] | NUT-WELD(M10X1.5-THD) | |
| | 194-7882 | [2] | SPACER(14.8X28X16-MM THK) | |
| 13. | 395-4098 | [2] | TUBE AS | |
| 14. | 395-4099 | [1] | HOSE | |
| 15. | 395-4100 | [1] | HOSE | |
| 16. | 426-2475 | [1] | TUBE AS | |
| 17. | 426-2476 | [1] | TUBE AS | |
| 18. | 426-2478 | [1] | TUBE | |
| 20. | 426-2604 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 21. | 439-2549 | [1] | BRACKET | |
| 22. | 440-5309 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 23. | 440-6727 | [1] | TUBE AS | |
| 24. | 440-8148I | [1] | HOSE AS | |
| 25. | 447-0554 | [1] | TUBE AS | |
| 26. | 447-0557 | [1] | TUBE | |
| 27. | 447-0558 | [1] | TUBE | |
| 28. | 003-8470 | [1] | TEE-PIPE | |
| 29. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 30. | 150-7158 | [1] | CONNECTOR | |
| 31. | 154-9024 | [2] | VALVE-SAMPLING | |
| 32. | 157-0670 | [2] | CAP-DUST | |
| 33. | 178-3336M | [1] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 34. | 193-2120 | [8] | GROMMET | |
| 35. | 208-6054 | [15] | CLAMP-T BOLT | |
| 36. | 209-4578 | [1] | CLAMP-T BOLT | |
| 37. | 053-0558 | [1] | CLIP | |
| 38. | 300-6036 | [2] | CLAMP-BAND | |
| 39. | 344-5360 | [2] | CLIP(LOOP) | |
| 40. | 3U-2428 | [1] | CLAMP-PIPE | |
| 41. | 4J-0523 | [2] | SEAL-O-RING | |
| 44. | 6D-7128 | [1] | SEAL-O-RING | |
| 45. | 6V-1867 | [8] | CLIP(SLOT) | |
| 46. | 6V-1868 | [8] | CLIP(TAB) | |
| 47. | 6V-3251 | [1] | SEAL-O-RING | |
| 48. | 6V-9027 | [1] | SEAL-O-RING | |
| 49. | 6V-9872 | [1] | CONNECTOR | |
| 50. | 7J-9108 | [1] | SEAL-O-RING | |
| 51. | 7X-2552M | [2] | BOLT(M16X2X30-MM) | |
| 52. | 7X-7729 | [7] | WASHER(11X25X3-MM THK) | |
| 53. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 54. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 55. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 56. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 57. | 8T-4184M | [2] | BOLT(M12X1.75X45-MM) | |
| 58. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 59. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 60. | 8T-4196M | [6] | BOLT(M10X1.5X35-MM) | |
| 61. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 62. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 63. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 64. | 8T-6703 | [4] | CLAMP-HOSE | |
| 65. | 9X-2027 | [4] | WASHER(11X18X2-MM THK) | |
| 66. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| 67. | 415-6334E | | HOSE(50-CM) | |
| 68. | 371-8113E | | HOSE(126-CM) | |
| 69. | 198-4777 | [8] | WASHER-HARD(11X25X10-MM THK) | |
| 70. | 8T-4186M | [8] | BOLT(M10X1.5X40-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
