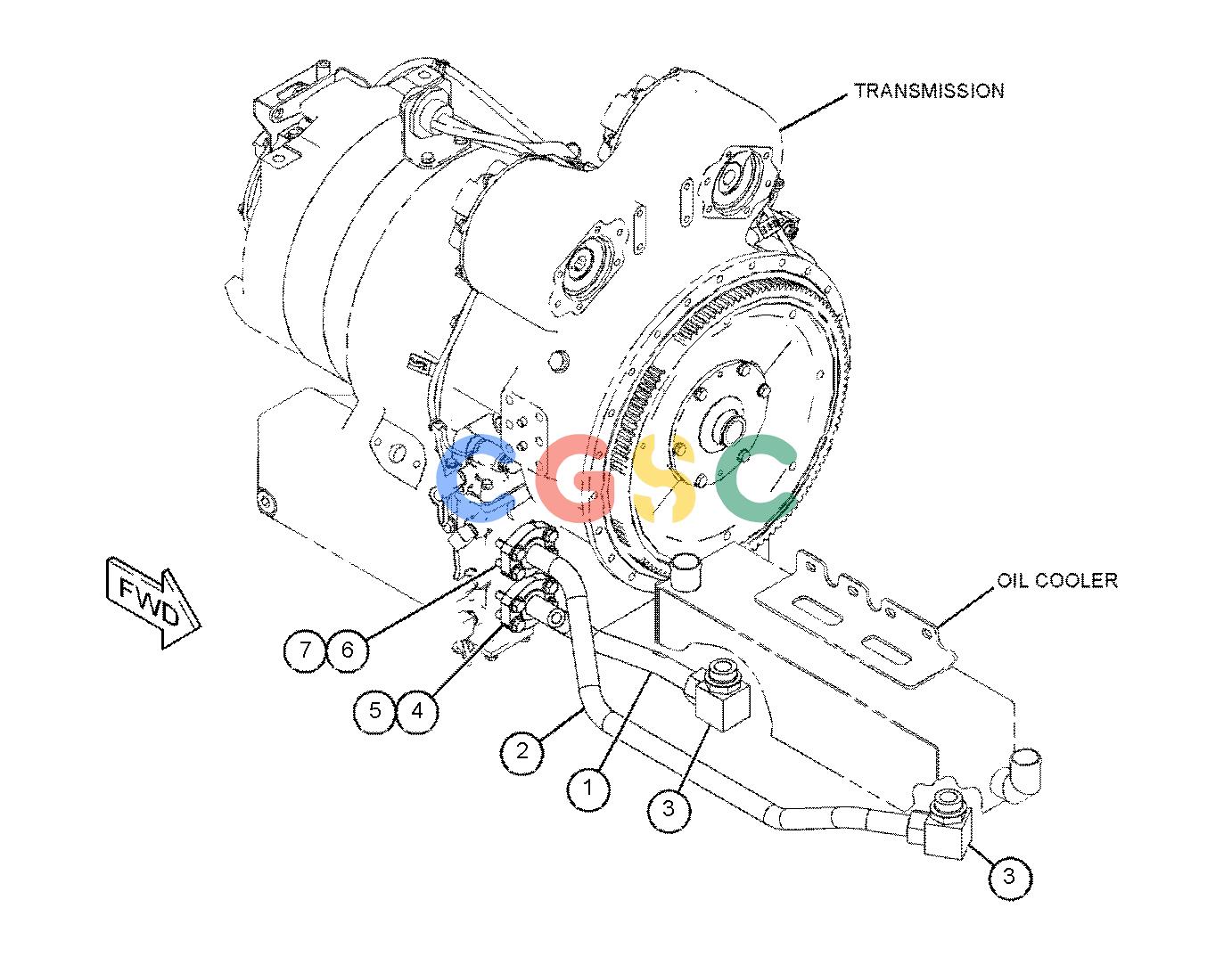

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 396-1924 | [1] | TUBE AS | |
| 2. | 447-1055 | [1] | TUBE AS | |
| 3. | 148-8356 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 2S-4078 | [1] | SEAL-O-RING | ||
| 6V-8400 | [1] | SEAL-O-RING | ||
| 6V-9009 | [1] | ELBOW | ||
| 4. | 1P-4579 | [4] | FLANGE-HALF | |
| 5. | 4J-0524 | [2] | SEAL-O-RING | |
| 6. | 8T-4183M | [8] | BOLT(M12X1.75X40-MM) | |
| 7. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| M | METRIC PART | |||
